Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1420-1900USD
Packaging Details: Export standard carton with shockproof inner foam
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 99pcs/4-6weeks
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Powersupply:
|
12-36 V DC
|
Responsetime:
|
≤ 1 Ms
|
Operatingtemperature:
|
-40°C To 85°C
|
Displaytype:
|
LCD, LED
|
Protectionrating:
|
IP65, IP67
|
Accuracy:
|
±0.25% Of Full Scale
|
Measurementrange:
|
0 To 1000 Psi
|
Mounting:
|
Panel Mount Or Pipe Mount
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Powersupply:
|
12-36 V DC
|
|
Responsetime:
|
≤ 1 Ms
|
|
Operatingtemperature:
|
-40°C To 85°C
|
|
Displaytype:
|
LCD, LED
|
|
Protectionrating:
|
IP65, IP67
|
|
Accuracy:
|
±0.25% Of Full Scale
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Mounting:
|
Panel Mount Or Pipe Mount
|

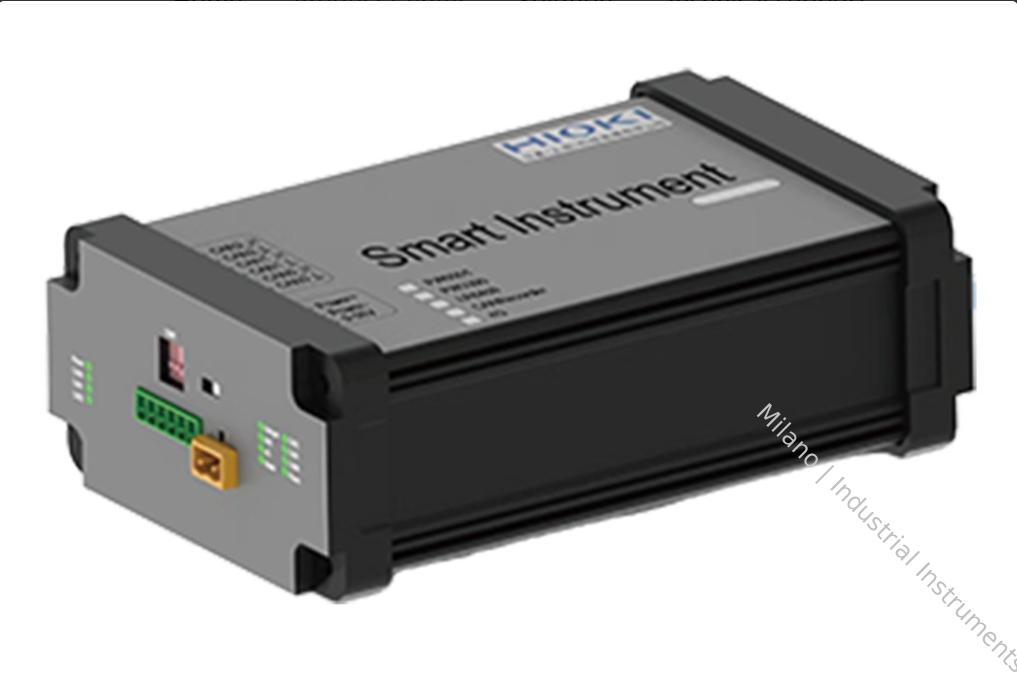

CN055 is HIOKI exclusive LAN-CAN conversion gateway developed for automotive new energy vehicle integrated testing. It solves the core pain point of synchronous data fusion between bench measuring instruments and vehicle on-board CAN bus system. Connect to LR8450 data loggers, PW3390/PW6001 power analyzers via LAN cable, convert all collected power, temperature, current measurement data into standard CAN messages and send to vehicle ECU network. Equipped with 3 independent CAN channels (CAN0/CAN1/CAN2), simultaneously read original vehicle CAN signals such as motor speed, battery SOC, brake status for one-stop synchronous analysis. Minimum 10ms ultra-fast data refresh interval ensures high time consistency between measurement waveform and vehicle control signals. Wide DC 9~30V power input supports direct power supply via vehicle OBD port, compact metal housing with vibration resistance meets vehicle road test standards, and cloud server access realizes remote real-time data monitoring through Wi-Fi/4G module expansion.
| Item | Standard Parameter |
|---|---|
| Model | CN055 LAN-CAN Signal Converter Gateway |
| Brand | HIOKI Made in Japan |
| Compatible Host | LR8450 Memory HiLogger, PW3390 / PW6001 Power HiTester |
| CAN Channel Quantity | 3 independent channels (CAN0 / CAN1 / CAN2) |
| Minimum Data Transmission Interval | 10 ms |
| Max Transmittable Signals | 32 CAN messages / 64 measuring signals per cycle |
| Power Input | DC 9 V ~ 30 V, 0.5 A (support vehicle OBD power supply) |
| Conversion Delay | Approx 25 ms |
| Dimension | W171 × H56 × D106 mm |
| Net Weight | Approx 850 g |
| Working Temperature | -10 ℃ ~ +50 ℃, ≤80%RH non-condensing |
| Vibration Standard | JIS D 1601 Class 1A passenger vehicle grade |
| Expansion Function | Support external Wi-Fi / 4G module for cloud remote monitoring |
New energy vehicle drive motor powertrain bench synchronous ECU test, EV battery pack charge/discharge CAN signal fusion analysis, electric bus/truck road real-time data remote monitoring, automotive OBC/DC-DC converter power & vehicle CAN signal correlation test, vehicle control unit (VCU) matching calibration laboratory testing, energy storage converter CAN bus power data integrated collection.
