Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO
Model Number: HIOKI 9600 AC/DC Direct Input Unit
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1850-2500USD
Packaging Details: Export standard carton with shockproof inner foam
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 99pcs/4-6weeks
|
Pressurerange:
|
0 To 10000 Psi
|
Ingressprotection:
|
IP65, IP67
|
Powersupply:
|
24 V DC
|
Material:
|
Stainless Steel
|
Accuracy:
|
±0.25% Of Full Scale
|
Applications:
|
Industrial, HVAC, Automotive, Oil & Gas
|
Operatingtemperature:
|
-20°C To 80°C
|
Connectiontype:
|
1/4 Inch NPT Or G1/4
|
|
Pressurerange:
|
0 To 10000 Psi
|
|
Ingressprotection:
|
IP65, IP67
|
|
Powersupply:
|
24 V DC
|
|
Material:
|
Stainless Steel
|
|
Accuracy:
|
±0.25% Of Full Scale
|
|
Applications:
|
Industrial, HVAC, Automotive, Oil & Gas
|
|
Operatingtemperature:
|
-20°C To 80°C
|
|
Connectiontype:
|
1/4 Inch NPT Or G1/4
|

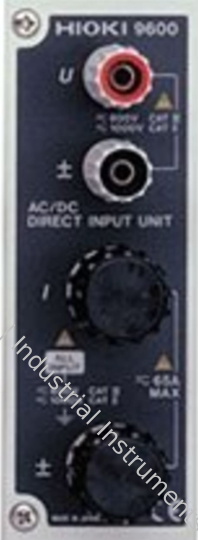

9600 AC/DC Direct Input Unit is an official optional input module exclusively designed for HIOKI 3193-10 multi-channel power analyzer. It realizes direct wideband power measurement without external current clamps, covering DC and AC 0.5Hz~1MHz signal spectrum.
Wide voltage range up to 1000V and 50A max direct input current meet testing demands of 400V/800V EV inverters, industrial servo motors and energy storage converters. It supports all standard wiring modes: single-phase 2-wire, single-phase 3-wire, three-phase 3-wire & 4-wire, automatically calculating power factor, efficiency, integration power and harmonic parameters together with the host machine. Note this unit requires factory pre-installation before delivery; voltage test leads are sold separately.
| Item | Standard Parameter |
|---|---|
| Model | 9600 AC/DC Direct Input Unit |
| Brand | HIOKI Made in Japan |
| Compatible Host | 3193-10 Power HiTester Multi-Channel Power Analyzer |
| Frequency Bandwidth | DC ~ 1 MHz (-3dB) |
| Voltage Range | 6 V ~ 1000 V multi-step ranges |
| Direct Current Range | 0.2 A ~ 50 A multi-step ranges |
| Supported Wiring | 1Φ2W, 1Φ3W, 3Φ3W, 3Φ4W |
| Installation Method | Factory pre-installed plug-in slot module |
| Matching Accessories | External voltage/current test leads (sold separately) |
| Measured Parameters | V, I, P, Q, S, PF, phase angle, power integration, efficiency |
EV drive motor power efficiency testing, PV inverter power quality analysis, energy storage converter charge/discharge power measurement, industrial servo drive performance verification, switching power supply R&D aging test, new energy vehicle on-board charger power detection.
