Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO
Model Number: HIOKI U8556
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 890-1300USD
Packaging Details: Export standard carton with shockproof inner foam
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 99pcs/4-6weeks
|
Operatingtemperature:
|
-40°C To 125°C
|
Responsetime:
|
Less Than 1 Second
|
Pressurerange:
|
0 To 10,000 Psi
|
Material:
|
Stainless Steel, Brass
|
Measurementrange:
|
0 To 1000 Psi
|
Connectiontype:
|
Threaded, Flanged
|
Displaytype:
|
Analog Dial, Digital LCD
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Operatingtemperature:
|
-40°C To 125°C
|
|
Responsetime:
|
Less Than 1 Second
|
|
Pressurerange:
|
0 To 10,000 Psi
|
|
Material:
|
Stainless Steel, Brass
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Connectiontype:
|
Threaded, Flanged
|
|
Displaytype:
|
Analog Dial, Digital LCD
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|

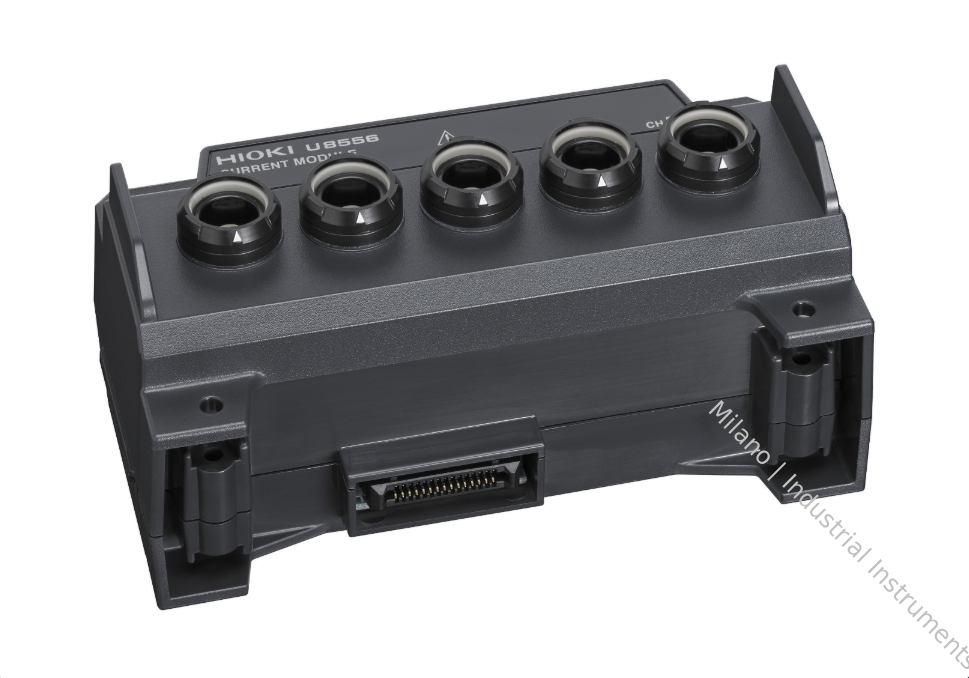

U8556 is the standard wired plug-in current input unit for HIOKI LR8450 general memory hi-logger, corresponding to wireless counterpart LR8536 and high-speed version U8556-HR. It provides 5 independent PL14 ports, compatible with full series HIOKI PL14 current sensors ranging from miniature 2A CT7812 probe to large 6000A CT7046 transducer. 1ms full-channel synchronous sampling meets the demands of conventional power trend recording, with 150μs instantaneous value response time to record medium-speed inverter switching current waveforms. Single LR8450 logger can install up to 4 U8556 modules, expanding total current test channels to 20 for multi-loop synchronous monitoring of EV battery packs, charging piles and industrial servo drives. Adopts direct slot plug-in design, stable wired signal transmission without wireless delay, more cost-effective for fixed laboratory test benches.
| Item | Standard Parameter |
|---|---|
| Model | U8556 Standard Wired Plug-In Current Module |
| Brand | HIOKI Made in Japan |
| Compatible Host | LR8450 Standard Memory HiLogger |
| Input Channels | 5 PL14 sensor ports per module |
| Max Expandability | 4 modules per host, total 20 current channels |
| Min Sampling Interval | 1ms full-channel synchronous update |
| Instant Value Response Time | 150 μs |
| RMS Bandwidth | DC ~ 5 kHz |
| Supported Current Range | 200mA ~ 6000A (depends on matched PL14 current sensor) |
| Dimension | W134 * H63 * D70 mm |
| Net Weight | Approx 256 g |
| Operating Temperature | -20 ℃ ~ +55 ℃, ≤80% RH non-condensing |
| Difference with U8556-HR | U8556 matches LR8450 standard logger; U8556-HR only matches LR8450-HR high-speed logger |
| Matching Wireless Counterpart | LR8536 Standard Wireless Radio Current Module |
New energy vehicle battery pack charge & discharge long-term current trend logging, high-power charging pile multi-loop power consumption monitoring, photovoltaic inverter conventional power waveform recording, energy storage cabinet daily load current tracking, industrial servo motor routine aging current test, laboratory mixed high/low current synchronous trend measurement.
