Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO
Model Number: HIOKI U8556-HR
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 960-1500USD
Packaging Details: Export standard carton with shockproof inner foam
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 99pcs/4-6weeks
|
Outputaccuracy:
|
0.1% FS (optional)
|
Pressurerange:
|
0 To 10000 Psi
|
Operatingtemperature:
|
-20°C To 85°C
|
Protectionrating:
|
IP65 Or IP67
|
Calibration:
|
Factory Calibrated
|
Responsetime:
|
Less Than 1 Second
|
Connectiontype:
|
1/4 Inch NPT Or G1/2
|
Accuracy:
|
±0.25% Of Full Scale
|
Powersupply:
|
24 V DC
|
Displaytype:
|
LCD Or LED
|
Outputsignal:
|
4-20 MA, 0-10 V, Or Digital
|
|
Outputaccuracy:
|
0.1% FS (optional)
|
|
Pressurerange:
|
0 To 10000 Psi
|
|
Operatingtemperature:
|
-20°C To 85°C
|
|
Protectionrating:
|
IP65 Or IP67
|
|
Calibration:
|
Factory Calibrated
|
|
Responsetime:
|
Less Than 1 Second
|
|
Connectiontype:
|
1/4 Inch NPT Or G1/2
|
|
Accuracy:
|
±0.25% Of Full Scale
|
|
Powersupply:
|
24 V DC
|
|
Displaytype:
|
LCD Or LED
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Or Digital
|

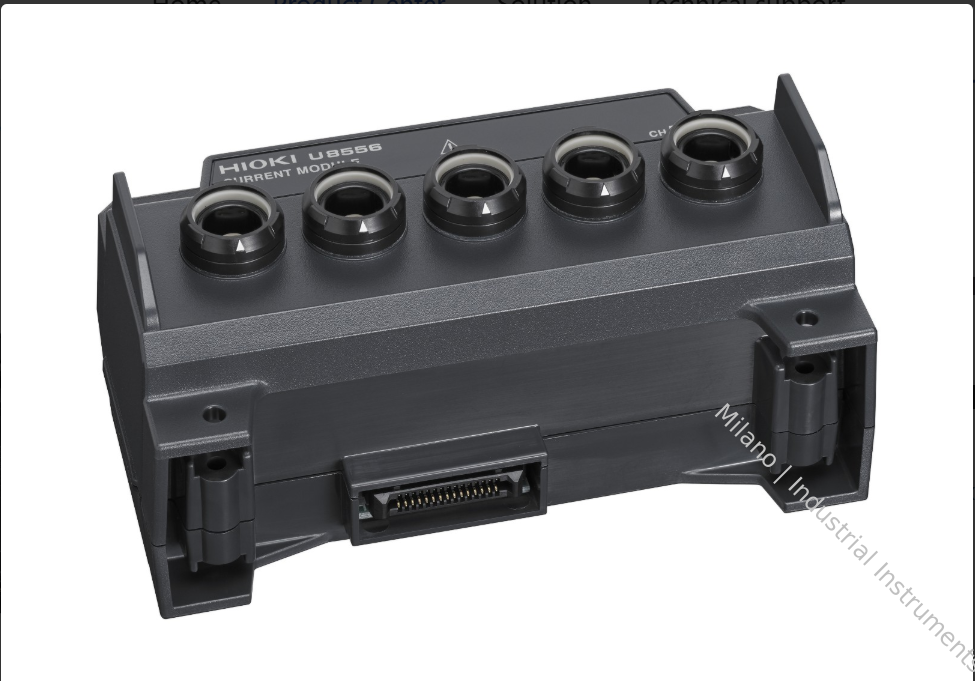

U8556-HR is HIOKI wired plug-in high-speed current input unit designed for LR8450-HR data logger, paired with wireless counterpart LR8536-HR to meet fixed bench wired measurement demands. Equipped with 5 independent PL14 ports, each channel supports separate sensor scaling, compatible with full series HIOKI PL14 current sensors (CT7812 mini 2A probe ~ CT7046 6000A large current transducer). Instantaneous value response time reaches 150μs, 1ms full-channel synchronous sampling perfectly records fast PWM switching current waveforms of SiC inverters, EV battery charge/discharge loops and multi-channel servo drives. Single LR8450-HR can install up to 4 U8556-HR modules to expand maximum 20 current test channels for synchronous multi-point power analysis.
| Item | Standard Parameter |
|---|---|
| Model | U8556-HR Wired Plug-In Current Module |
| Brand | HIOKI Made in Japan |
| Compatible Host | LR8450-HR High Resolution Memory HiLogger (V2.20 and above firmware) |
| Input Channels | 5 PL14 sensor ports per module |
| Max Expandability | 4 modules per host, total 20 current channels |
| Sampling Interval | Min 1ms full-channel synchronous update |
| Instant Value Response Time | 150 μs |
| RMS Bandwidth | DC ~ 5 kHz |
| Supported Current Range | 200mA ~ 6000A (depends on matched PL14 current sensor) |
| Operating Temperature | -20 ℃ ~ +55 ℃, ≤80% RH non-condensing |
| Installation Method | Direct plug-in slot on LR8450-HR host |
| Matching Wireless Counterpart | LR8536-HR Wireless Radio Current Module |
New energy vehicle drive motor multi-loop transient current synchronous testing, EV high-voltage battery pack charge & discharge current long-term logging, photovoltaic inverter multi-channel power waveform recording, energy storage converter grid-connected current efficiency analysis, automotive low-voltage control module multi-point aging test, laboratory mixed high/low current synchronous measurement.
