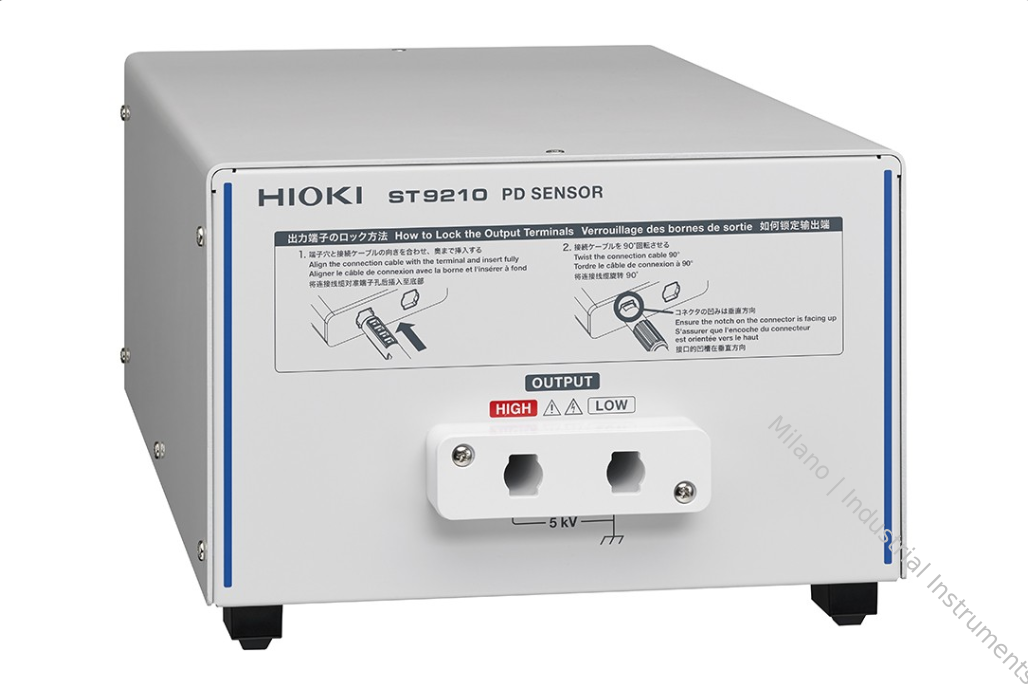

Original Japan HIOKI ST9210 AC Partial Discharge Sensor, Max 5kVrms /7.07kVpeak AC PD Test Unit Exclusive Matching Accessory For ST4200 Partial Discharge Detector & 3153 AC Hipot Tester

ST9210 AC partial discharge sensor is a core front-end sensing device for AC partial discharge testing, perfectly matched with HIOKI ST4200 partial discharge detector and 3153 AC withstand voltage teste

It integrates internal blocking coil and coupling capacitor to extract tiny partial discharge charge signals from high-voltage test loops, fully compliant with international standard IEC 60270 for motor winding PDIV (Partial Discharge Inception Voltage) testing. Max withstand input voltage reaches 5kVrms /7.07kVpeak, fully meeting the high-voltage test requirements of 800V new energy vehicle drive motors, transformer windings and insulating materials. It can be used independently in laboratory R&D test benches and mass production line automatic inspection equipment.

1. Specialized for AC partial discharge measurement, max rated input voltage 5kVrms /7.07kVpeak
2. Built-in 14mH blocking coil & 1.33nF coupling capacitor, stable capture PD charge signal
3. Test standard compliant with IEC 60270 / IEC 60034-27-1, accurate PDIV quantification
4. Perfectly matched with ST4200-50 PD detector and 3153 AC hipot tester
5. Compatible with third-party AC high voltage withstand testers for system integration
6. Dual terminal layout: High/Low high-voltage input + BNC signal output port
7. Compact desktop metal housing, good electromagnetic shielding anti-interference performance
8. Supports DUT capacitance ≤10nF, covers most motor coils and insulating components

New energy vehicle drive motor winding PDIV testing, transformer stator coil partial discharge inspection, motor insulation material reliability evaluation, high-voltage component factory withstand & PD integrated screening, laboratory insulating material aging partial discharge research.
