Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO
Model Number: HIOKI LR8536
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1380-1800USD
Packaging Details: Export standard carton with shockproof inner foam
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 99pcs/4-6weeks
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Accuracy:
|
±0.25% Of Full Scale
|
Pressurerange:
|
0 To 10,000 Psi
|
Measurementrange:
|
0 To 1000 Psi
|
Outputinterface:
|
RS485, HART, Modbus
|
Protectionrating:
|
IP65, IP67
|
Material:
|
Stainless Steel
|
Displaytype:
|
LCD, LED
|
Responsetime:
|
Less Than 1 Second
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Accuracy:
|
±0.25% Of Full Scale
|
|
Pressurerange:
|
0 To 10,000 Psi
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Outputinterface:
|
RS485, HART, Modbus
|
|
Protectionrating:
|
IP65, IP67
|
|
Material:
|
Stainless Steel
|
|
Displaytype:
|
LCD, LED
|
|
Responsetime:
|
Less Than 1 Second
|

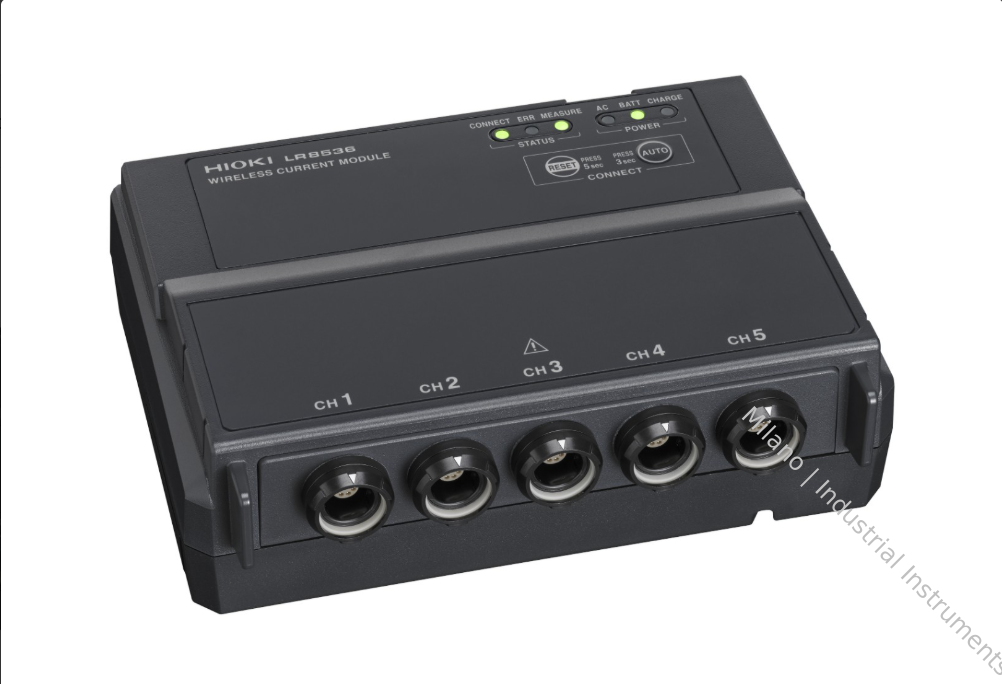

LR8536-HR wireless radio current module is HIOKI’s high-speed wireless current acquisition accessory optimized for LR8450-HR high-resolution data logger. Each module delivers 5 independent current measurement channels, supporting all HIOKI AC/DC current sensors equipped with PL14 connector (CT7812, CT7822, CT6847A, CT6877 etc.). Ultra-fast 1ms synchronous sampling perfectly captures transient switching current waveforms of EV inverters, motor drives and battery loops. Powered by built-in Z1007 rechargeable battery, it runs continuously over 5 hours for long-term field testing. Equipped with Z3231 wireless LAN adapter, it transmits measurement data to LR8450-HR logger within 30m transmission range. Up to 7 LR8536-HR modules can be wirelessly linked to one host logger, expanding total current test channels to 35 for multi-point synchronous power testing.
| Item | Standard Parameter |
|---|---|
| Model | LR8536-HR Wireless Radio Current Module |
| Brand | HIOKI Made in Japan |
| Compatible Host | LR8450-HR High Resolution Memory HiLogger |
| Measurement Channels | 5 independent PL14 sensor ports |
| Max Sampling Rate | 1 ms synchronous per channel |
| Supported Sensors | All HIOKI AC/DC current probes with PL14 connector |
| Wireless Transmission | Z3231 Wireless LAN Adapter, max 30m range |
| Built-in Battery | Z1007 rechargeable pack, ≥5 hours continuous runtime |
| External Power | Z1008 AC 100~240V adapter |
| Max Expandability | 7 modules per LR8450-HR host (35 total current channels) |
| Dimension | W154 * H115 * D48 mm |
| Net Weight | Approx 377 g |
| Operating Temp | -20 ℃ ~ +55 ℃, ≤80% RH non-condensing |
New energy vehicle motor inverter multi-point transient current testing, EV high-voltage battery charge/discharge synchronous monitoring, energy storage converter cabinet remote current waveform recording, high-power charging pile multi-loop power analysis, automotive ECU & control module low-current long-term aging test, laboratory multi-channel power synchronous data logging.
