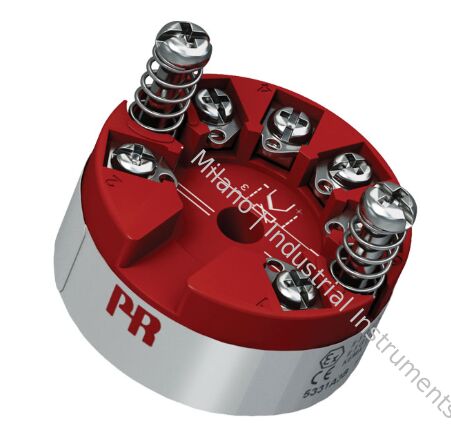

2 Wire Industrial Programmable Transmitter PR 5334A High Accuracy Galvanic Isolation TC Input

Name: 2 Wire Industrial Programmable Transmitter PR 5334A High Accuracy Galvanic Isolation TC Input
Brand: Shaanxi Qindiyuan Environmental Protection Equipment Co., Ltd.
SKU: PR 5334A
Price: 95 USD
Availability: InStock

Product Details

Place of Origin: Denmark

Brand Name: PR

Model Number: PR 5334A

Document: 5334v111_uk.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 95USD

Delivery Time: 5-7 work days

Payment Terms: T/T

Supply Ability: 99PCS 4-6 WEEKS

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    Industrial Programmable Transmitter, Programmable Transmitter TC Input, Programmable Transmitter PR 5334A


Operatingtemperature:	-40°C To 85°C	Material:	Stainless Steel, Brass
Ingressprotection:	IP65, IP67	Calibration:	Factory Calibrated, Field Calibratable
Application:	Industrial, HVAC, Automotive, Oil & Gas	Pressuretype:	Gauge, Absolute, Differential
Productname:	Pressure Measurement Instruments	Measurementrange:	0 To 1000 Psi
Powersupply:	24 V DC	Displaytype:	LCD, LED
Outputsignal:	4-20 MA, 0-10 V, Digital	Responsetime:	≤ 1 Ms
Connectiontype:	Threaded, Flanged	Accuracy:	±0.25% Of Full Scale

Operatingtemperature:	-40°C To 85°C
Material:	Stainless Steel, Brass
Ingressprotection:	IP65, IP67
Calibration:	Factory Calibrated, Field Calibratable
Application:	Industrial, HVAC, Automotive, Oil & Gas
Pressuretype:	Gauge, Absolute, Differential
Productname:	Pressure Measurement Instruments
Measurementrange:	0 To 1000 Psi
Powersupply:	24 V DC
Displaytype:	LCD, LED
Outputsignal:	4-20 MA, 0-10 V, Digital
Responsetime:	≤ 1 Ms
Connectiontype:	Threaded, Flanged
Accuracy:	±0.25% Of Full Scale

2 Wire Industrial Programmable Transmitter PR 5334A High Accuracy Galvanic Isolation TC Input

2-Wire Programmable Transmitter PR 5334A

TC input with high measurement accuracy

Galvanic isolation for enhanced safety

Programmable sensor error value

Designed for DIN form B sensor head mounting

Environmental Conditions

Operating temperature	-40°C to +85°C
Calibration temperature	20...28°C
Relative humidity	< 95% RH (non-condensing)
Protection degree (enclosure/terminal)	IP68 / IP00

Mechanical Specifications

Dimensions	Ø 44 x 20.2 mm
Weight approx.	50 g
Wire size	1 x 1.5 mm² stranded wire
Screw terminal torque	0.4 Nm
Vibration	IEC 60068-2-6 2...25 Hz: ±1.6 mm 25...100 Hz: ±4 g

Technical Specifications

Power Supply

Supply voltage: 7.2...35 VDC

Internal power dissipation: 25 mW…0.8 W

Isolation & Response

Isolation voltage, test/working: 1.5 kVAC / 50 VAC

Response time (programmable): 1...60 s

Voltage drop: 7.2 VDC

Warm-up time: 5 min.

Power on to stable output: 4.5 s

Performance

Programming: PR 5909 Loop Link communications interface

Signal/noise ratio: Min. 60 dB

EEprom error check: < 3.5 s

Accuracy: Better than 0.05% of selected range

Signal dynamics, input: 18 bit

Signal dynamics, output: 16 bit

Effect of supply voltage change: < 0.005% of span / VDC

EMC immunity influence: < ±0.5% of span

Extended EMC immunity: NAMUR NE21, A criterion, burst: < ±1% of span

Input Specifications

TC Input

Thermocouple type: B, E, J, K, L, N, R, S, T, U, W3, W5, LR

Cold junction compensation (CJC): < ±1.0°C

Sensor error detection: Yes

Sensor error current: When detecting / else: Nom. 33 μA / 0 μA

Voltage Input

Measurement range: -12...150 mV

Min. measurement range (span): 5 mV

Input resistance: 10 MΩ

Output Specifications

Current Output

Signal range: 4…20 mA

Min. signal range: 16 mA

Load (@ current output): ≤ (Vsupply - 7.2) / 0.023 [Ω]

Load stability: ≤ 0.01% of span / 100 Ω

Sensor error indication: Programmable 3.5…23 mA

NAMUR NE43 Upscale/Downscale: 23 mA / 3.5 mA

Common Output

Updating time: 440 ms

of span: = of the presently selected range

Intrinsic Safety & Ex Marking

ATEX	II 3 G Ex nA [ic] IIC T6...T4 Gc, II 3 G Ex ec [ic] IIC T6...T4 Gc, II 3 G Ex ic IIC T6...T4 Gc, II 3 D Ex ic IIIC Dc
IECEx	Ex nA [ic] IIC T6…T4 Gc, Ex ec [ic] IIC T6…T4 Gc, Ex ic IIC T6…T4 Gc, Ex ic IIIC Dc
INMETRO	Ex ec [ic] IIC T6...T4 Gc, Ex ic IIC T6...T4 Gc, Ex ic IIIC Dc

Compliance & Standards

EMC	2014/30/EU
ATEX	2014/34/EU
RoHS	2011/65/EU
EAC	TR-CU 020/2011
EAC Ex	TR-CU 012/2011

Certifications & Approvals

ATEX	DEKRA 20ATEX0096X
IECEx	DEK 20.0059X
INMETRO	DEKRA 23.0009X
EAC Ex	EAEU KZ 7500361.01.01.08756
DNV Marine	TAA0000101
