Product Details
Place of Origin: Denmark
Brand Name: PR
Certification: CO

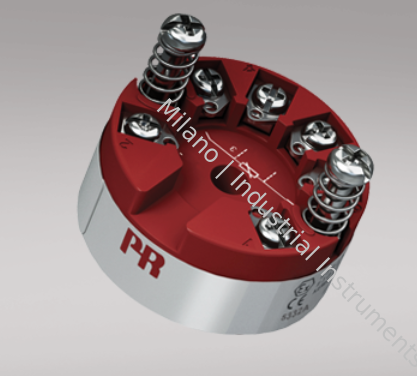

Model Number: PR 5337D
Document: 5337v104_uk.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 84
Delivery Time: 5-7 work days
Payment Terms: T/T
Supply Ability: 99pcs 4-6 weeks
|
Input Protection:
|
Internally Fused, Non-replaceable
|
Part Number:
|
1037778
|
Electrical Connection:
|
Screw Terminals
|
Output Load:
|
≤600 Ω
|
Response Times:
|
As Fast As 90ms
|
Resolution:
|
12 Bit X 12 Bit
|
Power:
|
24VDC(12-30)VDC
|
Color:
|
Black And Blue
|
Voltage:
|
230V AC, 24V DC
|
Product Type:
|
I/O Interface Carrier
|
Overvoltage Protection:
|
Output Protected At 110% To 120%
|
Pipe Size:
|
G1/4
|
Max Span:
|
400/(1000)
|
Range:
|
-200℃-1200℃
|
Output:
|
4-20mADC/1-5VDC
|
|
Input Protection:
|
Internally Fused, Non-replaceable
|
|
Part Number:
|
1037778
|
|
Electrical Connection:
|
Screw Terminals
|
|
Output Load:
|
≤600 Ω
|
|
Response Times:
|
As Fast As 90ms
|
|
Resolution:
|
12 Bit X 12 Bit
|
|
Power:
|
24VDC(12-30)VDC
|
|
Color:
|
Black And Blue
|
|
Voltage:
|
230V AC, 24V DC
|
|
Product Type:
|
I/O Interface Carrier
|
|
Overvoltage Protection:
|
Output Protected At 110% To 120%
|
|
Pipe Size:
|
G1/4
|
|
Max Span:
|
400/(1000)
|
|
Range:
|
-200℃-1200℃
|
|
Output:
|
4-20mADC/1-5VDC
|
| Operating temperature | -40°C to +85°C |
| Calibration temperature | 20...28°C |
| Relative humidity | < 95% RH (non-condensing) |
| Protection degree (enclosure/terminal) | IP68 / IP00 |
| Dimensions | Ø 44 x 20.2 mm |
| Weight approx. | 50 g |
| Wire size | 1 x 1.5 mm² stranded wire |
| Screw terminal torque | 0.4 Nm |
| Vibration (IEC 60068-2-6) | 2...25 Hz: ±1.6 mm 25...100 Hz: ±4 g |
| Supply voltage | 8.0...30 VDC |
| Voltage drop | 8.0 VDC |
| Isolation voltage, test / working | 1.5 kVAC / 50 VAC |
| Response time (programmable) | 1...60 s |
| Programming | HART & PR 5909 Loop Link communications interface |
| Signal / noise ratio | > 60 dB |
| Accuracy | Better than 0.05% of selected range |
| Signal dynamics, input | 22 bit |
| Signal dynamics, output | 16 bit |
| EMC immunity influence | < ±0.1% of span |
| Extended EMC immunity (NAMUR NE21) | < ±1% of span |
| RTD type | Pt50/100/200/500/1000; Ni50/100/120/1000 |
| Cable resistance per wire | 5 Ω (up to 50 Ω per wire possible with reduced accuracy) |
| Sensor current | Nom. 0.2 mA |
| Thermocouple type | B, E, J, K, L, N, R, S, T, U, W3, W5, LR |
| Cold junction compensation (CJC) | Constant, internal or external via Pt100 or Ni100 sensor |
| Measurement range | -800...+800 mV |
| Min. measurement range (span) | 2.5 mV |
| Input resistance | 10 MΩ |
| Signal range | 4…20 mA |
| Min. signal range | 16 mA |
| Load (@ current output) | ≤ (Vsupply - 8) / 0.023 [Ω] |
| Sensor error indication | Programmable 3.5…23 mA |
| NAMUR NE43 Upscale/Downscale | 23 mA / 3.5 mA |
| Updating time | 440 ms |
| HART protocol revisions | HART 7 and HART 5 |
| ATEX | II 1 G Ex ia IIC T6...T4 Ga, II 2 D Ex ia IIIC Db, I M1 Ex ia I Ma |
| IECEx | Ex ia IIC T6...T4 Ga, Ex ia IIIC Db, Ex ia I Ma |
| FM, US | Cl. I, Div. 1, Gp. A, B, C, D T4/T6; Cl. I Zone 0, AEx ia IIC T4/T6; Cl. 1, Div. 2, Gp. A, B, C, D, T4/T6 |
| CSA | Cl. I, Div. 1, Gp. A, B, C, D Ex ia IIC, Ga |
| INMETRO | Ex ia IIC T6...T4 Ga, Ex ia IIIC Db, Ex ia I Ma |
| EMC | 2014/30/EU |
| ATEX | 2014/34/EU |
| RoHS | 2011/65/EU |
| EAC | TR-CU 020/2011 |
| EAC Ex | TR-CU 012/2011 |
| ATEX | DEKRA 20ATEX0108X |
| IECEx | DEK 20.0063X |
| FM | FM17US0013X |
| CSA | 1125003 |
| INMETRO | DEKRA 23.0011X |
| EAC Ex | EAEU KZ 7500361.01.01.08756 |
| DNV Marine | TAA0000101 |
| SIL | Hardware assessed for use in SIL applications |
