Product Details
Place of Origin: USA
Brand Name: FLUKE
Certification: CO
Model Number: Fluke 283 FC/PV
Document: bbe822ac-8c6a-4028-93b1-b10...le.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 250$-500$
Delivery Time: 1week
Payment Terms: T/T
|
DC Voltage Range:
|
6.000 V To 1500 V
|
|
DC Voltage Range:
|
6.000 V To 1500 V
|

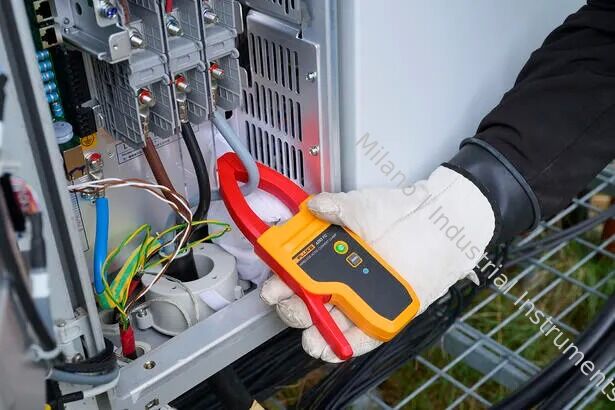

The Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp is a complete solar testing solution engineered for photovoltaic professionals. Combining a CAT III 1500 V / CAT IV 1000 V safety-rated multimeter, a wireless current clamp, and CAT III 1500 V rated Staubli MC4 test leads, it delivers accurate, reliable measurements across demanding solar installations.
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| AC Volts[1] | 6.000 V | 0.001 V | 1.0 % + 3 (45 Hz to 500 Hz) |
| 60.00 V | 0.01 V | 1.0 % + 3 (45 Hz to 500 Hz) | |
| 600.0 V | 0.1 V | 2.0 % + 3 (500 Hz to 1 kHz) | |
| 1000 V | 1 V | 2.0 % + 3 (500 Hz to 1 kHz) | |
| DC Volts | 6.000 V | 0.001 V | 0.09 % + 3 |
| 60.00 V | 0.01 V | 0.09 % + 3 | |
| 600.0 V | 0.1 V | 0.09 % + 3 | |
| 1500 V | 1 V | 0.15 % + 2 | |
| AC mV[1] | 600.0 mV | 0.1 mV | 1.0 % + 3 (45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1000 Hz) |
| DC mV | 600.0 mV | 0.1 mV | 0.09 % + 2 |
| Continuity | 600 Ω | 1 Ω | — |
| Resistance | 600.0 Ω | 0.1 Ω | 0.5 % + 4 |
| 6.000 kΩ | 0.001 kΩ | 0.5 % + 4 | |
| 60.00 kΩ | 0.01 kΩ | 0.5 % + 4 | |
| 600.0 kΩ | 0.1 kΩ | 0.5 % + 4 | |
| 6.000 MΩ | 0.001 MΩ | 0.5 % + 4 | |
| 50.00 MΩ | 0.01 MΩ | 1.5 % + 4 | |
| Capacitance | 1000 nF | 1 nF | 1.2 % + 2 |
| 10.00 μF | 0.01 μF | 1.2 % + 2 | |
| 100.0 μF | 0.1 μF | 1.2 % + 2 | |
| 9999 μF | 1 μF | 10 % typical | |
| Frequency | 99.99 Hz | 0.01 Hz | 0.1 % + 2 |
| 999.9 Hz | 0.1 Hz | 0.1 % + 2 | |
| 9.999 kHz | 0.001 kHz | 0.1 % + 2 | |
| 99.99 kHz | 0.01 kHz | 0.1 % + 2 | |
| AC VA (45–500 Hz)[1] | 360.0 VA | 0.1 VA | 2 % + 1.0 VA |
| 3.600 kVA | 0.001 kVA | 2 % + 0.01 kVA | |
| 36.00 kVA | 0.01 kVA | 2 % + 0.1 kVA | |
| 60.00 kVA | 0.01 kVA | 2 % + 0.15 kVA | |
| DC VA[1] | 360.0 VA | 0.1 VA | 2 % + 1.0 VA |
| 3.600 kVA | 0.001 kVA | 2 % + 0.01 kVA | |
| 36.00 kVA | 0.01 kVA | 2 % + 0.1 kVA | |
| 90.00 kVA | 0.01 kVA | 2 % + 0.25 kVA |
[1] Accuracy specifications apply as noted per function and frequency band.
DC functions: Accuracy is the specified accuracy of the measurement function ± 12 counts for changes longer than 350 ms in duration.
AC functions: Accuracy is the specified accuracy of the measurement function ± 40 counts for changes longer than 900 ms in duration.
