PR 4184 Digital Signal Transmitter IP65 Unipolar Bipolar 4-20mA 0-10V

Name: PR 4184 Digital Signal Transmitter IP65 Unipolar Bipolar 4-20mA 0-10V
Brand: Shaanxi Qindiyuan Environmental Protection Equipment Co., Ltd.
SKU: PR 4184
Price: 250.00 USD
Availability: InStock

Product Details

Place of Origin: Denmark

Brand Name: PR

Certification: CO

Model Number: PR 4184

Document: 4184v102_uk.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 150-350usd

Delivery Time: 5-7 work days

Payment Terms: T/T

Supply Ability: 99pcs 4-6 weeks

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            PR 4184 Signal Transmitter, Digital Signal Transmitter IP65


Protectionrating:	IP65	Outputsignal:	4-20 MA, 0-10 V, Digital
Application:	Industrial, HVAC, Automotive, Oil & Gas	Operatingtemperature:	-20°C To 80°C
Mountingoptions:	Panel, Wall, Pipe	Connectiontype:	Threaded, Flanged
Displaytype:	LCD/LED	Powersupply:	24 V DC
Measurementrange:	0 To 1000 Psi	Pressuretype:	Gauge, Absolute, Differential
Productname:	Pressure Measurement Instruments	Material:	Stainless Steel
Calibration:	Factory Calibrated, Field Calibration Supported	Accuracy:	±0.5% Of Full Scale
Responsetime:	Less Than 1 Second

Protectionrating:	IP65
Outputsignal:	4-20 MA, 0-10 V, Digital
Application:	Industrial, HVAC, Automotive, Oil & Gas
Operatingtemperature:	-20°C To 80°C
Mountingoptions:	Panel, Wall, Pipe
Connectiontype:	Threaded, Flanged
Displaytype:	LCD/LED
Powersupply:	24 V DC
Measurementrange:	0 To 1000 Psi
Pressuretype:	Gauge, Absolute, Differential
Productname:	Pressure Measurement Instruments
Material:	Stainless Steel
Calibration:	Factory Calibrated, Field Calibration Supported
Accuracy:	±0.5% Of Full Scale
Responsetime:	Less Than 1 Second

PR 4184 Digital Signal Transmitter IP65 Unipolar Bipolar 4-20mA 0-10V

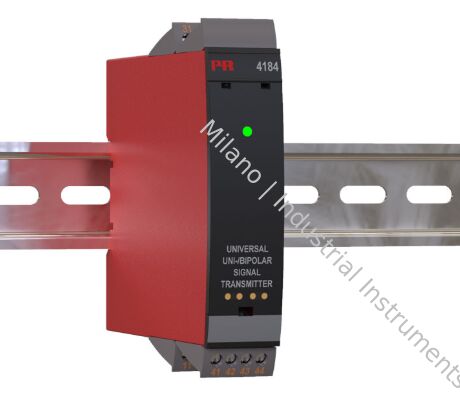

Universal Uni-/Bipolar Signal Transmitter

PR 4184

Measures DC inputs up to ±300 V / ±100 mA with spans as low as 25 mV / 0.5 mA. Features passive/active current output and buffered voltage output with fast response time < 20 ms.

Environmental Conditions

Operating temperature	-20°C to +60°C
Storage temperature	-20°C to +85°C
Calibration temperature	20...28°C
Relative humidity	< 95% RH (non-condensing)
Protection degree	IP20

Mechanical Specifications

Dimensions (HxWxD)	109 x 23.5 x 104 mm
Dimensions (HxWxD) with PR 4500	109 x 23.5 x 131 mm
Weight approx.	155 g
Weight incl. 4501 / 451x (approx.)	170 g / 185 g
DIN rail type	DIN EN 60715/35 mm
Wire size	0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque	0.5 Nm

Common Specifications

Supply

Supply voltage, universal: 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Max. required power: ≤ 2.5 W
Internal power dissipation: ≤ 2.0 W

Isolation Voltage

Test voltage: 2.3 kVAC
Working voltage: 250 VAC (reinforced) / 500 VAC (basic)

Response Time

Response time (0...90%, 100...10%): < 20 ms

Auxiliary Supplies

2-wire loop supply: > 16 V @ 23 mA
3-wire loop supply: > 18...< 28 V @ 23...0 mA
Loop supply limitation: 27...35 mA avg., < 80 mA peak
Reference voltage: 2.5 VDC ±0.5%
Reference voltage, load: 0...15 mA
Current limit, reference voltage: < 60 mA

Technical Performance
Programming: PR 4500 communication interfaces
Signal dynamics, input: 24 bit
Signal dynamics, output: 18 bit
Signal / noise ratio: > 60 dB
Bandwidth: > 40 Hz
Accuracy: Better than 0.05% of selected range
EMC immunity influence: < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst: < ±1% of span
Conducted emission, cl. A: 150 kHz...10 MHz

Input Specifications

Current Input

Signal range: ±100 mA
Programmable measurement ranges: 0...1, 0...5, 1...5, 0...20, 4...20, ±1, ±5, ±10, ±20, ±50, ±100 mA
Custom configurable signal range: ±100 mA
Min. measurement range (span): 0.5 mA
Input voltage drop: 0.6 V @ 20 mA nom.

Voltage Input

Signal range: ±300 VDC
Programmable measurement ranges: 0...0.1, 0...1, 0.2...1, 0...2.5, 0...5, 1...5, 0...10, 2...10, 0...100, 0...300, ±0.1, ±1, ±2.5, ±5, ±10, ±100, ±300 V
Custom configurable signal range: ±300 V
Min. measurement range (span): 25 mV
Input resistance: Nom. 3 MΩ (> 2.5 VDC) Nom. > 10 MΩ (≤ 2.5 VDC)

Potentiometer Input

3-wire potentiometer input: 0...100%
Reference voltage: 2.5 V
Calibration resistance: 5 kΩ
Min. potentiometer resistance: 200 Ω

Output Specifications

Current Output

Signal range: 0...23 mA (unipolar) -23...+23 mA (bipolar)
Custom config. output range: ±20 mA
Min. signal range: 4 mA
Load (@ current output): ≤ 1000 Ω / ± 20 V @ ±20 mA
Current limit: ≤ 28 mA (unipolar) ± 28 mA (bipolar)
Load stability: ≤ 0.001% of span / 100 Ω
Response time, programmable: 0.0...60.0 s

Passive 2-wire mA Output

Programmable ranges: 0...20 and 4...20 mA
Ext. 2-wire loop supply range: 3.5...28.8 VDC

Voltage Output

Programmable signal ranges: 0/0.2...1; 0/1...5 ; 0/2...10 V ±1, ±5 and ±10 V
Direct or Inverted action
Load (@ voltage output): ≥ 500 kΩ
Response time, programmable: 0.0...60.0 s

Shunted Voltage Output

Signal range: ± 1.2 V / ± 12 V
Programmable standard ranges: 0...1, 0...2.5, 0...5, 1...5, 0...10, 2...10 V ±1, ±2.5, ±5, ±10 V
Min. span: 0.8 V
Custom config. output range: ±10 V
Load, min.: > 500 kΩ

Buffered Voltage Output

Signal range: ± 23 V
Programmable standard ranges: 0...1, 0.2...1, 0...2.5, 0...5, 1...5, 0...10, 2...10, 0...20, 4...20; ±1, ±2.5, ±5, ±10, ±20 V
Min. span: 0.8 V
Custom config. output range: ±20 V
Current limit: < 50 mA
Load, min.: > 2 kΩ

Compliance & Approvals

Observed Authority Requirements

EMC	2014/30/EU & UK SI 2016/1091
LVD	2014/35/EU & UK SI 2016/1101
RoHS	2011/65/EU & UK SI 2012/3032
EAC	TR-CU 020/2011

Approvals

c UL us, UL 508	E248256
SIL	Hardware assessed for use in SIL applications
