Product Details
Brand Name: WINTERS

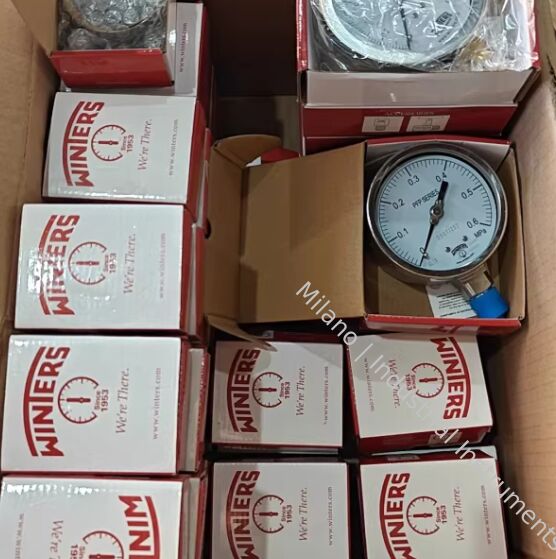

Model Number: PFP-25-T-S-A-4Z
Document: PFP.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 48USD
Delivery Time: 1-2week
Payment Terms: T/T
Supply Ability: 1pc 1-2week
|
Material:
|
Stainless Steel, Brass
|
Application:
|
Industrial Process Control, HVAC, Hydraulic Systems
|
Calibration:
|
Factory Calibrated, Field Adjustable
|
Operatingtemperature:
|
-20°C To 80°C
|
Mountingoptions:
|
Panel Mount, Pipe Mount
|
Responsetime:
|
Less Than 1 Second
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Ingressprotection:
|
IP65
|
Measurementrange:
|
0 To 1000 Psi
|
Powersupply:
|
24 V DC
|
Productname:
|
Pressure Measurement Instruments
|
Pressuretype:
|
Gauge, Absolute, Differential
|
Connectiontype:
|
Threaded, Flanged
|
Displaytype:
|
LCD, LED
|
Accuracy:
|
±0.25% Of Full Scale
|
|
Material:
|
Stainless Steel, Brass
|
|
Application:
|
Industrial Process Control, HVAC, Hydraulic Systems
|
|
Calibration:
|
Factory Calibrated, Field Adjustable
|
|
Operatingtemperature:
|
-20°C To 80°C
|
|
Mountingoptions:
|
Panel Mount, Pipe Mount
|
|
Responsetime:
|
Less Than 1 Second
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Ingressprotection:
|
IP65
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Powersupply:
|
24 V DC
|
|
Productname:
|
Pressure Measurement Instruments
|
|
Pressuretype:
|
Gauge, Absolute, Differential
|
|
Connectiontype:
|
Threaded, Flanged
|
|
Displaytype:
|
LCD, LED
|
|
Accuracy:
|
±0.25% Of Full Scale
|
| Model | PFP-25 Type |
|---|---|
| Dial Size | 2.5" (63 mm) |
| Case Material | AISI 304 Stainless Steel |
| Wetted Parts | 316 Stainless Steel or Brass |
| Lens Material | Polycarbonate (High pressure BSP(G) and HP: Tempered safety glass) |
| Bezel | AISI 304 Stainless Steel Bayonet Ring |
| Dial | White aluminum with black and red markings |
| Pointer | Black anodized aluminum with micrometer adjustable screw |
| Accuracy | ±1.5% of Full Scale (ASME B40.100 compliant; EN837-1 available) |
| Connection | 1/4" NPT male (Back/Bottom/Panel mount options) |
| Fill Liquid | Glycerin (Dry case available) |
| Ambient Temperature (Dry) | -40°F to 250°F (-40°C to 120°C) |
| Ambient Temperature (Glycerin Filled) | -4°F to 150°F (-20°C to 65°C) |
| Process Temperature | -40°F to 250°F (-40°C to 120°C) |
| Enclosure Rating | NEMA 4X / IP66 (EN60529-1) |
| Over-Pressure Limit | 25% for pressures ≤1,450 PSI (9,998 kPa); 15% for pressures ＞1,500 PSI |
| Under & Overload Stops | Incorporated |
| Ventable Plug | Included (Bottom mount) |
| Restricted Orifice | Standard on dual scale (Optional on single scale) |
Compliance: ASME B40.100; EN837-1 (available); CRN registered
