Product Details
Place of Origin: USA

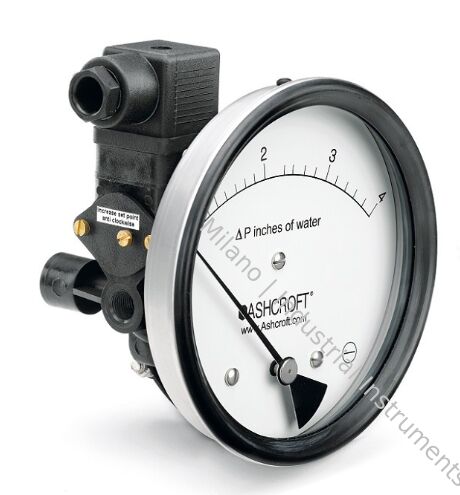

Brand Name: Ashcroft
Certification: CO
Model Number: 1134
Document: 1134_differential_pressure_...ge.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 20-50USD
Delivery Time: 5-7 WORK DAYS
Payment Terms: T/T
Supply Ability: 99PCS 4-6 WEEKS
|
Operating Temperature:
|
-40°C To 85°C
|
Response Time:
|
≤ 10 Ms
|
Pressure Type:
|
Gauge, Absolute, Differential
|
Display Type:
|
LCD/LED Digital Display
|
Measurement Range:
|
0 To 1000 Psi
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
Protection Rating:
|
IP65/IP67
|
Power Supply:
|
24 V DC
|
Product Name:
|
Pressure Measurement Instruments
|
Connection Type:
|
Threaded, Flanged
|
Mounting Options:
|
Panel, Wall, Pipe
|
|
Operating Temperature:
|
-40°C To 85°C
|
|
Response Time:
|
≤ 10 Ms
|
|
Pressure Type:
|
Gauge, Absolute, Differential
|
|
Display Type:
|
LCD/LED Digital Display
|
|
Measurement Range:
|
0 To 1000 Psi
|
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
|
Protection Rating:
|
IP65/IP67
|
|
Power Supply:
|
24 V DC
|
|
Product Name:
|
Pressure Measurement Instruments
|
|
Connection Type:
|
Threaded, Flanged
|
|
Mounting Options:
|
Panel, Wall, Pipe
|
| Specification | Details |
|---|---|
| Accuracy | ±3% of span (ASME B40.1) |
| Dial Size | 4½ inch |
| Pressure Ranges | 0.6 IWD to 60 IWD |
| Maximum Static Pressure | 35 psi |
| Process Connection | 1⁄8 NPT Female |
| Process Connection Location | Dual, back/in-line |
| Window Material | Glass (Standard) |
| Migration | Zero |
| Maximum Process Temperature | 175° F (80° C) |
| Mounting Options | Flush mounting (Standard), surface plate (Optional), or pipe mounting bracket (Optional) |
| Switch Type | Contact Rating | Current | Voltage |
|---|---|---|---|
| SPST | 10 VA ac (rms) or dc (Max.) | 0.5 Amp ac (rms) or dc (Max.) | 100 Vac/Vdc (Max.) |
| SPDT | 3 VA ac (rms) or dc (Max.) | 0.3 AMP ac (rms) or dc (Max.) | 30 Vac/Vdc (Max.) |
