Product Details
Place of Origin: Denmark
Brand Name: PR
Certification: CO

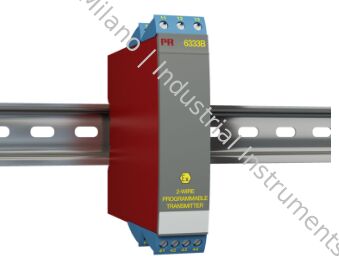

Model Number: PR 6333B
Document: 6333v104_uk.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 200-400usd
Delivery Time: 5-7 work days
Payment Terms: T/T
Supply Ability: 99pcs 4-6 weeks
|
User Memory:
|
48 MB
|
Output Load:
|
≤750 Ω
|
Power Supply:
|
24 V DC
|
Corrent:
|
4-20 MA
|
Product No:
|
VE3006
|
Hs Code:
|
85389091
|
Hart:
|
16 Channels 4-20 MA, HART
|
Voltage Rating:
|
DC 115V
|
Range:
|
-200℃-1200℃
|
Load Resistance:
|
0 To 1,440 Ohms
|
Type:
|
AFM60B-S4AC004096
|
Power:
|
24VDC(12-30)VDC
|
Loop Powered:
|
Yes
|
Packing:
|
New And Origin With Factory Seal
|
Actuator Type:
|
Side Rotary - No Lever
|
|
User Memory:
|
48 MB
|
|
Output Load:
|
≤750 Ω
|
|
Power Supply:
|
24 V DC
|
|
Corrent:
|
4-20 MA
|
|
Product No:
|
VE3006
|
|
Hs Code:
|
85389091
|
|
Hart:
|
16 Channels 4-20 MA, HART
|
|
Voltage Rating:
|
DC 115V
|
|
Range:
|
-200℃-1200℃
|
|
Load Resistance:
|
0 To 1,440 Ohms
|
|
Type:
|
AFM60B-S4AC004096
|
|
Power:
|
24VDC(12-30)VDC
|
|
Loop Powered:
|
Yes
|
|
Packing:
|
New And Origin With Factory Seal
|
|
Actuator Type:
|
Side Rotary - No Lever
|
| Operating temperature | -40°C to +85°C |
| Storage temperature | -40°C to +85°C |
| Calibration temperature | 20...28°C |
| Relative humidity | < 95% RH (non-condensing) |
| Protection degree | IP20 |
| Dimensions (HxWxD) | 109 x 23.5 x 104 mm |
| Weight (1 / 2 channels) | 145 / 185 g |
| DIN rail type | DIN EN 60715/35 mm |
| Wire size | 0.13...2.08 mm² AWG 26...14 stranded wire |
| Screw terminal torque | 0.5 Nm |
| Supply voltage | 8.0...30 VDC |
| Max. required power | ≤ 0.8 W/≤ 1.6 W (1 ch./2 ch.) |
| Internal power dissipation | 0.19...0.8 W |
| Response time (programmable) | 0.33...60 s |
| Voltage drop | 8.0 VDC |
| Warm-up time | 5 min. |
| Programming | PR 5909 Loop Link communications interface |
| Signal / noise ratio | Min. 60 dB |
| Accuracy | Better than 0.1% of selected range |
| Signal dynamics, input | 19 bit |
| Signal dynamics, output | 16 bit |
| Effect of supply voltage change | < 0.005% of span / VDC |
| Max. offset | 50% of selected max. value |
| RTD type | Pt100, Ni100, linear R |
| Cable resistance per wire | 10 Ω (max.) |
| Sensor current | > 0.2 mA, < 0.4 mA |
| Effect of sensor cable resistance (3-wire) | < 0.002 Ω / Ω |
| Sensor error detection | Yes |
| Linear resistance min....max. | 0 Ω...10000 Ω |
| Signal range | 4…20 mA |
| Min. signal range | 16 mA |
| Load (@ current output) | ≤ (Vsupply - 8) / 0.023 [Ω] |
| Load stability | ≤ 0.01% of span / 100 Ω |
| Sensor error indication | Programmable 3.5…23 mA |
| NAMUR NE43 Upscale/Downscale | 23 mA / 3.5 mA |
| Updating time | 135 ms |
| of span | = of the presently selected range |
| EMC | 2014/30/EU |
| ATEX | 2014/34/EU |
| RoHS | 2011/65/EU |
| EAC | TR-CU 020/2011 |
| EAC Ex | TR-CU 012/2011 |
| ATEX | DEKRA 20ATEX0105X |
| IECEx | DEK 20.0062X |
| FM | FM17US0013X |
| CSA | 1125003 |
| INMETRO | DEKRA 23.0010X |
| EAC Ex | EAEU KZ 7500361.01.01.08756 |
