T6500W High Accuracy Pressure Gauge DIN 16001 With Sturdy Front Baffle Safety Structure

Name: T6500W High Accuracy Pressure Gauge DIN 16001 With Sturdy Front Baffle Safety Structure
Brand: Shaanxi Qindiyuan Environmental Protection Equipment Co., Ltd.
SKU: T6500W
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: USA

Brand Name: Ashcroft

Certification: CO

Model Number: T6500W

Document: datasheet-t6500-pressure-ga...ss.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 20-50USD

Delivery Time: 5-7 WORK DAYS

Payment Terms: T/T

Supply Ability: 99PCS 4-6 WEEKS

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            High Accuracy Pressure Gauge DIN 16001, T6500W High Accuracy Pressure Gauge


Operating Temperature:	-40°C To 85°C	Response Time:	≤ 10 Ms
Pressure Type:	Gauge, Absolute, Differential	Display Type:	LCD/LED Digital Display
Measurement Range:	0 To 1000 Psi	Output Signal:	4-20 MA, 0-10 V, Digital
Protection Rating:	IP65/IP67	Power Supply:	24 V DC
Product Name:	Pressure Measurement Instruments	Connection Type:	Threaded, Flanged
Mounting Options:	Panel, Wall, Pipe

Operating Temperature:	-40°C To 85°C
Response Time:	≤ 10 Ms
Pressure Type:	Gauge, Absolute, Differential
Display Type:	LCD/LED Digital Display
Measurement Range:	0 To 1000 Psi
Output Signal:	4-20 MA, 0-10 V, Digital
Protection Rating:	IP65/IP67
Power Supply:	24 V DC
Product Name:	Pressure Measurement Instruments
Connection Type:	Threaded, Flanged
Mounting Options:	Panel, Wall, Pipe

T6500W High Accuracy Pressure Gauge DIN 16001 With Sturdy Front Baffle Safety Structure

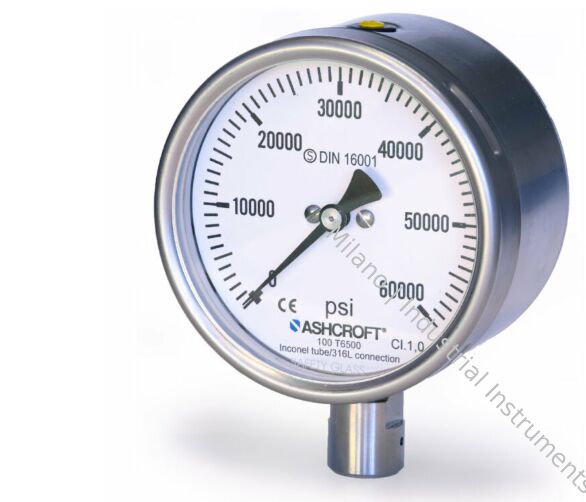

Ashcroft T6500W Safety High-Pressure Gauge

The Ashcroft T6500W safety high-pressure gauge complies with the DIN 16001 high-pressure gauge standard and is equipped with a sturdy front baffle safety structure.

Product Overview

Ashcroft T6500 All Stainless Steel Spring Tube Pressure Gauge features front baffle safety structure with high overpressure XRA option for enhanced protection in demanding industrial applications.

Technical Specifications

Accuracy: 1% of span for ranges to 60,000 psi; 1.6% of span for ranges >60,000 psi
Sizes: 100mm, 160mm
Pressure Ranges: 30,000 psi, 40,000 psi, 60,000 psi, 80,000 psi, 100,000 psi
Process Connection Location: Lower
Process Connection Size: 9⁄16-18UNF-2B right or left handed thread M16 x 1.5 Female
Case Style: Stainless steel solid front with full rear blowout back
Movement: Adjustable
Window Material: Safety glass (standard), polycarbonate (optional)
Dial: Aluminum, white background with black figures and intervals
Pointer: Aluminum
Weather Protection: IP66/67 and NEMA 4X (both dry and liquid filled)
Dampening Options: PLUS!™ Performance, glycerin, silicone, or Halocarbon® filled case
Mounting: Stem and surface
Approvals: CE certified

Material Components

Wetted Components

Bourdon Tube	Process Connection	Joints
Inconel 718	316 SS	Welded

Non-Wetted Components

Case	Ring	Back Cover
304 SS (standard) 316 SS (optional)	304 SS 316 SS	304 SS 316 SS

Temperature Ranges

Type	Ambient	Process	Storage
Dry	-40°F to 158°F (-40°C to 70°C)	-40°F to 392°F (-40°C to 200°C)	-40°F to 158°F (-40°C to 70°C)
PLUS!™	-40°F to 158°F (-7°C to 70°C)	-40°F to 200°F (-40°C to 93°C)	-40°F to 158°F (-40°C to 70°C)
Glycerin Fill	19°F to 158°F (-7°C to 70°C)	19°F to 200°F (-7°C to 93°C)	-40°F to 158°F (-40°C to 70°C)
Silicone Fill	-40°F to 158°F (-7°C to 70°C)	-40°F to 200°F (-40°C to 93°C)	-40°F to 158°F (-40°C to 70°C)
Halocarbon® Fill	-40°F to 158°F (-40°C to 70°C)	-40°F to 200°F (-40°C to 93°C)	-40°F to 158°F (-40°C to 70°C)
