Product Details
Place of Origin: USA
Brand Name: Ashcroft
Certification: CO

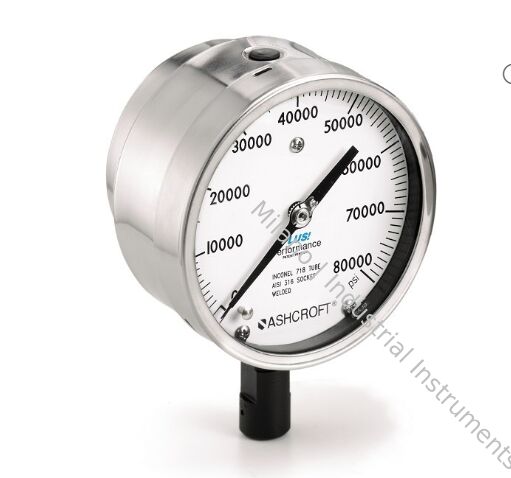

Model Number: 8008S
Document: datasheet-8008s-pressure-ga...el.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 10-100USD
Delivery Time: 5-7 WORK DAYS
Payment Terms: T/T
Supply Ability: 99PCS 4-6 WEEKS
|
Size:
|
40-100
|
Process Connection:
|
NPT,BSP,PT,R ,1/4,1/2,1/8
|
Keyword:
|
Buy Gas High Pressure Gauge
|
Temperature Measurement:
|
-20 To 65 Degrees
|
Supply:
|
2mV/V,3.33mV/V.4-20mA
|
Overpressure Limit:
|
2 Times The Maximum Range
|
Usage:
|
To Equip With Water Pumps
|
Voltage:
|
1-5 (V)
|
Case Dimensions:
|
69mm Dia
|
Supply Voltage:
|
10-30 VDC
|
Shell Material:
|
PP Plastic
|
Operating Temperature:
|
-40°C To 85°C
|
Response Time:
|
≤ 10 Ms
|
Pressure Type:
|
Gauge, Absolute, Differential
|
Display Type:
|
LCD/LED Digital Display
|
Measurement Range:
|
0 To 1000 Psi
|
Material:
|
Stainless Steel
|
Mounting Options:
|
Panel, Wall, Pipe
|
|
Size:
|
40-100
|
|
Process Connection:
|
NPT,BSP,PT,R ,1/4,1/2,1/8
|
|
Keyword:
|
Buy Gas High Pressure Gauge
|
|
Temperature Measurement:
|
-20 To 65 Degrees
|
|
Supply:
|
2mV/V,3.33mV/V.4-20mA
|
|
Overpressure Limit:
|
2 Times The Maximum Range
|
|
Usage:
|
To Equip With Water Pumps
|
|
Voltage:
|
1-5 (V)
|
|
Case Dimensions:
|
69mm Dia
|
|
Supply Voltage:
|
10-30 VDC
|
|
Shell Material:
|
PP Plastic
|
|
Operating Temperature:
|
-40°C To 85°C
|
|
Response Time:
|
≤ 10 Ms
|
|
Pressure Type:
|
Gauge, Absolute, Differential
|
|
Display Type:
|
LCD/LED Digital Display
|
|
Measurement Range:
|
0 To 1000 Psi
|
|
Material:
|
Stainless Steel
|
|
Mounting Options:
|
Panel, Wall, Pipe
|
| Bourdon Tube | Process Connection | Restrictor |
|---|---|---|
| 316 SS Laser Welded | 316 SS Laser Welded | SS (0.013˝ orifice) |
| Case | Window | Ring |
|---|---|---|
| 304 SS, open front (STD.) 316 SS, open front (OPT.) 316 SS, solid front (XS3 OPT.) |
Polycarbonate, glass, or safety glass Polycarbonate, glass, or safety glass Polycarbonate or safety glass |
304 SS, crimped (STD.) 316 SS, crimped (OPT.) 316 SS, crimped |
| Version | Ambient | Process | Storage |
|---|---|---|---|
| Dry with FlutterGuard™ | -40 °F to 200 °F (-40 °C to 93 °C) | -40 °F to 250 °F (-40 °C to 121 °C) | -40 °F to 200 °F (-40 °C to 93 °C) |
| Glycerin Fill | 20 °F to 158 °F (-7 °C to 70 °C) | -4 °F to 212 °F (-20 °C to 100 °C) | -40 °F to 158 °F (-40 °C to 70 °C) |
| Silicone Fill | -40 °F to 158 °F (-40 °C to 70 °C) | -40 °F to 212 °F (-40 °C to 100 °C) | -40 °F to 158 °F (-40 °C to 70 °C) |
