Product Details
Place of Origin: USA

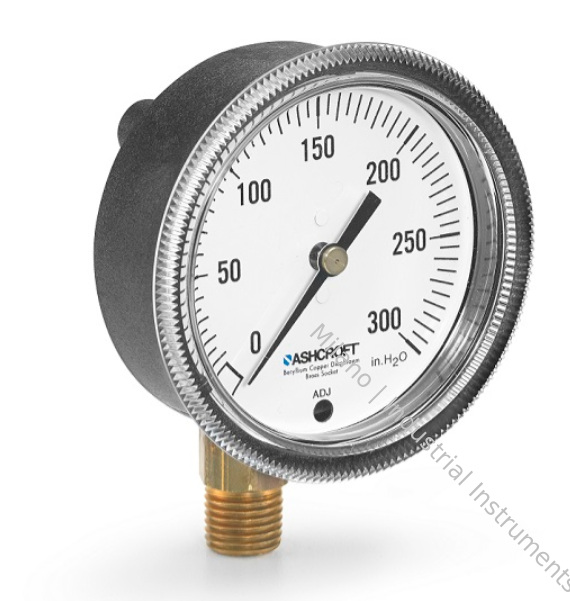

Brand Name: Ashcroft
Certification: CO
Model Number: 1490
Document: datasheet-low-pressure-gaug...90.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 20-50USD
Delivery Time: 5-7 WORK DAYS
Payment Terms: T/T
Supply Ability: 99PCS 4-6 WEEKS
|
Operating Temperature:
|
-40°C To 85°C
|
Response Time:
|
≤ 10 Ms
|
Pressure Type:
|
Gauge, Absolute, Differential
|
Display Type:
|
LCD/LED Digital Display
|
Measurement Range:
|
0 To 1000 Psi
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
Protection Rating:
|
IP65/IP67
|
Power Supply:
|
24 V DC
|
Product Name:
|
Pressure Measurement Instruments
|
Connection Type:
|
Threaded, Flanged
|
Mounting Options:
|
Panel, Wall, Pipe
|
|
Operating Temperature:
|
-40°C To 85°C
|
|
Response Time:
|
≤ 10 Ms
|
|
Pressure Type:
|
Gauge, Absolute, Differential
|
|
Display Type:
|
LCD/LED Digital Display
|
|
Measurement Range:
|
0 To 1000 Psi
|
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
|
Protection Rating:
|
IP65/IP67
|
|
Power Supply:
|
24 V DC
|
|
Product Name:
|
Pressure Measurement Instruments
|
|
Connection Type:
|
Threaded, Flanged
|
|
Mounting Options:
|
Panel, Wall, Pipe
|
| Accuracy | ±2-1-2% of span (ASME B40.100 Grade A) |
| Dial Size | 2½", 3½" |
| Pressure Ranges | 10 in. H₂O through vacuum, compound to 15 psi |
| Process Connection Location | Lower, center back, top, 3 o'clock, 9 o'clock |
| Process Connection Size | 1⁄8 NPT Male, 1⁄4 NPT Male, 1⁄8" Tubing hose barb, 3⁄16" Tubing hose barb, 1⁄4" Tubing hose barb, 1⁄4" O.D. Polytube hose barb, 3⁄32" Tubing hose barb |
| Movement | Brass |
| Dial | Aluminum, white background, black figures and intervals |
| Proof Pressure | 1.5 X Range |
| Burst Pressure | Up to 5 psi = 50 psi Greater than 5 psi = 100 psi |
| Mounting Option | Stem, Flush U-clamp for panel mounting |
| Pointer | Black, aluminum |
| Dampening | FlutterGuard™ |
| Case | Black, glass filled polysulfone |
| Ring/Window | Threaded polycarbonate, bayonet |
