Product Details
Place of Origin: USA

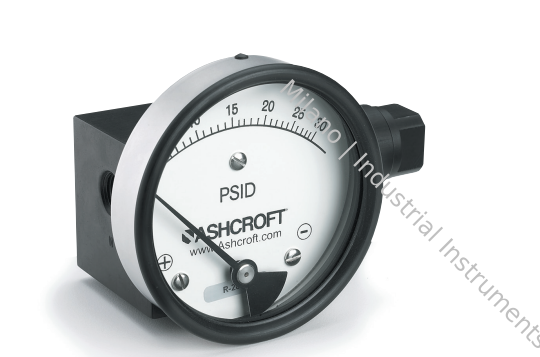

Brand Name: Ashcroft
Certification: CO
Model Number: 1131
Document: datasheet-1131-differential...ge.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 20-50USD
Delivery Time: 5-7 WORK DAYS
Payment Terms: T/T
Supply Ability: 99PCS 4-6 WEEKS
|
Operating Temperature:
|
-40°C To 85°C
|
Response Time:
|
≤ 10 Ms
|
Pressure Type:
|
Gauge, Absolute, Differential
|
Display Type:
|
LCD/LED Digital Display
|
Measurement Range:
|
0 To 1000 Psi
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
Protection Rating:
|
IP65/IP67
|
Power Supply:
|
24 V DC
|
Product Name:
|
Pressure Measurement Instruments
|
Connection Type:
|
Threaded, Flanged
|
Mounting Options:
|
Panel, Wall, Pipe
|
|
Operating Temperature:
|
-40°C To 85°C
|
|
Response Time:
|
≤ 10 Ms
|
|
Pressure Type:
|
Gauge, Absolute, Differential
|
|
Display Type:
|
LCD/LED Digital Display
|
|
Measurement Range:
|
0 To 1000 Psi
|
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
|
Protection Rating:
|
IP65/IP67
|
|
Power Supply:
|
24 V DC
|
|
Product Name:
|
Pressure Measurement Instruments
|
|
Connection Type:
|
Threaded, Flanged
|
|
Mounting Options:
|
Panel, Wall, Pipe
|
| Accuracy | ±2% ascending pressure full scale differential |
| Dial Sizes | 2½˝, 3½˝, 4˝, 4½˝, 6˝ |
| Pressure Ranges | 0-100 psi |
| Process Connection Location | Lower, back/in-line |
| Process Connection Sizes | ¼ NPT Female (STD.), 1⁄8 or ½ NPT Female Adapters (OPT.) |
| Migration | Zero |
| Maximum Process Temperature | 175°F (80°C) |
| Minimum Ambient Temperature | Buna-N Diaphragm: -4°F (-20°C) EPDM Diaphragm: -40°F (-40°C) Viton Diaphragm: 32°F (0°C) |
| Maximum Static Pressure | 3,000 psi |
| Weather Protection | IP65 |
| Switches | Contact Rating | Current | Voltage |
| SPST | 10 VA ac (rms) or dc (Max.) | 0.5 Amp ac (rms) or dc (Max.) | 100 Vac/Vdc (Max.) |
| SPDT | 3 VA ac (rms) or dc (Max.) | 0.3 AMP ac (rms) or dc (Max.) | 30 Vac/Vdc (Max.) |
