Product Details
Place of Origin: USA
Brand Name: Ashcroft
Certification: CO
Model Number: 2274
Document: datasheet-ash-digital-press...74.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 20-30
Delivery Time: 5-7 WORK DAYS
Payment Terms: T/T
Supply Ability: 99PCS 4-6 WEEKS
|
Operating Temperature:
|
-40°C To 85°C
|
Response Time:
|
≤ 10 Ms
|
Pressure Type:
|
Gauge, Absolute, Differential
|
Display Type:
|
LCD/LED Digital Display
|
Measurement Range:
|
0 To 1000 Psi
|
Material:
|
Stainless Steel
|
Application:
|
Industrial Process Control, HVAC, Automotive
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
Protection Rating:
|
IP65/IP67
|
Power Supply:
|
24 V DC
|
Accuracy:
|
±0.25% Of Full Scale
|
Product Name:
|
Pressure Measurement Instruments
|
Connection Type:
|
Threaded, Flanged
|
Mounting Options:
|
Panel, Wall, Pipe
|
|
Operating Temperature:
|
-40°C To 85°C
|
|
Response Time:
|
≤ 10 Ms
|
|
Pressure Type:
|
Gauge, Absolute, Differential
|
|
Display Type:
|
LCD/LED Digital Display
|
|
Measurement Range:
|
0 To 1000 Psi
|
|
Material:
|
Stainless Steel
|
|
Application:
|
Industrial Process Control, HVAC, Automotive
|
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
|
Protection Rating:
|
IP65/IP67
|
|
Power Supply:
|
24 V DC
|
|
Accuracy:
|
±0.25% Of Full Scale
|
|
Product Name:
|
Pressure Measurement Instruments
|
|
Connection Type:
|
Threaded, Flanged
|
|
Mounting Options:
|
Panel, Wall, Pipe
|

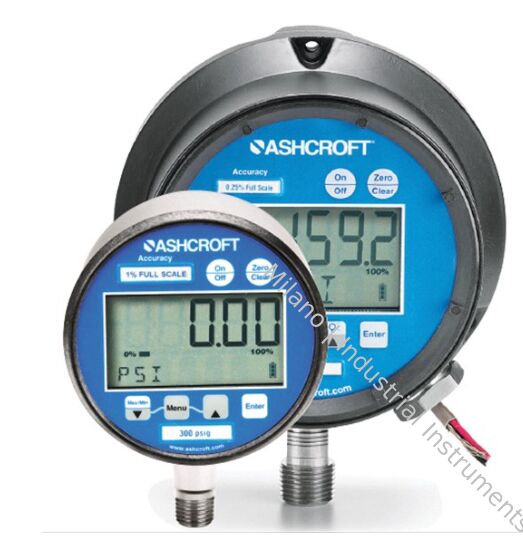

The Ashcroft 2274 digital pressure gauge delivers excellent functionality and performance for industrial applications. Powered by 12-36VDC, this model offers flexible output options between switch output and 4-20mA output.
The Ashcroft 2074 series digital pressure gauges provide reliable performance for industrial testing and measurement applications. These gauges are available in multiple power configurations to suit various industrial systems.
±0.25% of span, terminal point accuracy
Temperature Error (Zero & Span): 0.04% of span/°F (from 70 °F reference temperature)
| Version | Process Temperature | Storage Temperature |
|---|---|---|
| 2074, 2174, 2274 | 14 °F to 140 °F (10 °C to 60 °C) | –4 °F to 158 °F (–20 °C to 70 °C) |
| Model | Case Material |
|---|---|
| 3˝ | 304 Stainless Steel |
| 4½˝ | Fiberglass reinforced thermoplastic or black epoxy coated aluminum |
| Model | Diaphragm | Process Connection | Joints |
|---|---|---|---|
| 2074, 2174, 2274 | 17-4 Stainless Steel | 316L Stainless Steel | Laser Weld |
