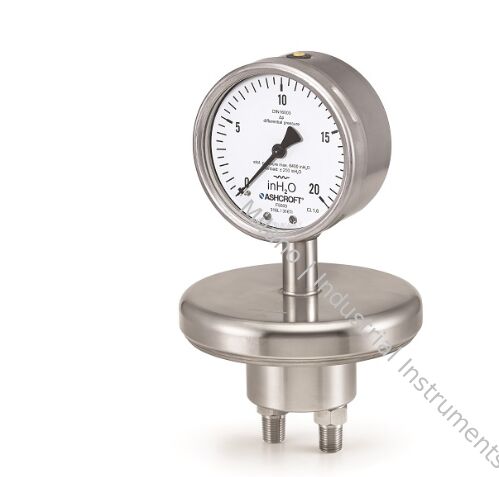

Ashcroft F5509 / F6509 Differential Pressure Gauge To Measure Two Different Pressure Sources

Name: Ashcroft F5509 / F6509 Differential Pressure Gauge To Measure Two Different Pressure Sources
Brand: Shaanxi Qindiyuan Environmental Protection Equipment Co., Ltd.
SKU: F5509/F6509
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: USA

Brand Name: Ashcroft

Certification: CO

Model Number: F5509/F6509

Document: datasheet-differential-pres...09.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 20-30

Delivery Time: 5-7 WORK DAYS

Payment Terms: T/T

Supply Ability: 99PCS 4-6 WEEKS

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    Ashcroft F5509 Differential Pressure Gauge, Ashcroft F6509 Differential Pressure Gauge


Operating Temperature:	-40°C To 85°C	Response Time:	≤ 10 Ms
Pressure Type:	Gauge, Absolute, Differential	Display Type:	LCD/LED Digital Display
Measurement Range:	0 To 1000 Psi	Material:	Stainless Steel
Application:	Industrial Process Control, HVAC, Automotive	Output Signal:	4-20 MA, 0-10 V, Digital
Protection Rating:	IP65/IP67	Power Supply:	24 V DC
Accuracy:	±0.25% Of Full Scale	Product Name:	Pressure Measurement Instruments
Connection Type:	Threaded, Flanged	Mounting Options:	Panel, Wall, Pipe

Operating Temperature:	-40°C To 85°C
Response Time:	≤ 10 Ms
Pressure Type:	Gauge, Absolute, Differential
Display Type:	LCD/LED Digital Display
Measurement Range:	0 To 1000 Psi
Material:	Stainless Steel
Application:	Industrial Process Control, HVAC, Automotive
Output Signal:	4-20 MA, 0-10 V, Digital
Protection Rating:	IP65/IP67
Power Supply:	24 V DC
Accuracy:	±0.25% Of Full Scale
Product Name:	Pressure Measurement Instruments
Connection Type:	Threaded, Flanged
Mounting Options:	Panel, Wall, Pipe

Ashcroft F5509 / F6509 Differential Pressure Gauge To Measure Two Different Pressure Sources

Ashcroft F5509/F6509 Differential Pressure Gauge

Measures differential pressure between two different pressure sources in harsh medium environments.

Product Specifications

Accuracy: Class 1.6 with ±1.6% of span | Class 1 with ±1% of span (Optional)
Dial Sizes: 100 mm (4˝), 160 mm (6˝)
Static Pressure: 1-4 psi max static 232 psi (16 bar) | 6-362 psi max static 580 psi (40 bar)
Process Connection Size: ¼ NPT, ½ NPT, G ¼ B, G ½ B
Process Connection Location: Lower
Case Style: 316L SS open front case (F5509) | 316L SS solid front case (F6509)
Pointer: Black, aluminum | Red set hand, maximum pointer (Optional)
Weather Protection: EN 60529/IEC 529 | IP65 for instruments with integrated contacts | IP66/NEMA 4X
Mounting: Direct, wall, 2˝ pipe mounting (Optional)
Dial: Black figures on white background (secondary scale is inner scale for dual scale dials), aluminum. Meets DIN 16003
Electric Contacts: Consult Inside Sales
Temperature Effects: Max. 0.8% of span per 10 K change with reference temperature of 68 °F (20 °C)

Wetted Components

Pressure Chamber	Diaphragm	Process Connection Materials
316L SS	316Ti SS \| ≤ 6 psi Duratherm® 2.4781 (NiCrCo alloy)	≥ 8 psi \| 316L SS

Non-Wetted Components

Case	Window	Bayonet Ring
316L SS	Laminated safety glass	316L SS

Minimum/Maximum Temperature Limits

Version	Ambient	Process	Storage
Dry	-4 °F to 176 °F (-20 °C to 80 °C)	-40 °F to 212 °F (-40 °C to 100 °C)	-4 °F to 176 °F (-20 °C to 80 °C)
Glycerin Fill	16 °F to 176 °F (-9 °C to 80 °C)	-20 °F to 212 °F (-7 °C to 100 °C)	16 °F to 176 °F (-9 °C to 80 °C)
Silicone Fill	-4 °F to 176 °F (-20 °C to 80 °C)	-40 °F to 212 °F (-40 °C to 100 °C)	-4 °F to 176 °F (-20 °C to 80 °C)
