Product Details

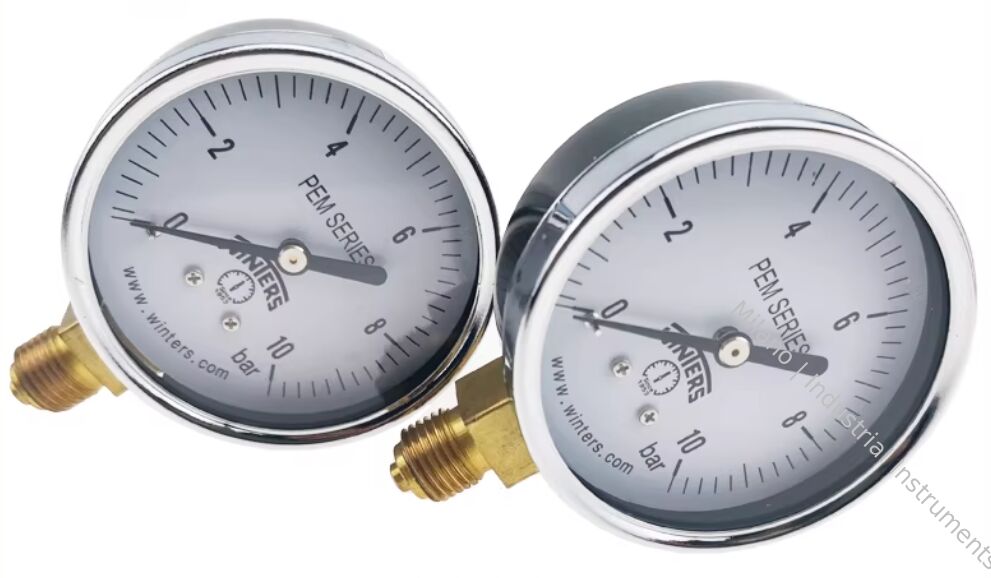

Brand Name: WINTERS
Model Number: PEM-25
Document: pem.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 20USD
Delivery Time: 1-2WEEK
Payment Terms: T/T
Supply Ability: 1PC 1-2WEEK
|
Powersupply:
|
24 V DC
|
Accuracy:
|
±0.25% Of Full Scale
|
Displaytype:
|
LCD/LED
|
Connectiontype:
|
Threaded, Flanged
|
Operatingtemperature:
|
-20°C To 80°C
|
Application:
|
Industrial, HVAC, Automotive, Oil & Gas
|
Protectionrating:
|
IP65
|
Productname:
|
Pressure Measurement Instruments
|
Pressuretype:
|
Gauge, Absolute, Differential
|
Measurementrange:
|
0 To 1000 Psi
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Mountingoptions:
|
Panel, Wall, Pipe
|
Responsetime:
|
≤ 1 Ms
|
Material:
|
Stainless Steel 316
|
|
Powersupply:
|
24 V DC
|
|
Accuracy:
|
±0.25% Of Full Scale
|
|
Displaytype:
|
LCD/LED
|
|
Connectiontype:
|
Threaded, Flanged
|
|
Operatingtemperature:
|
-20°C To 80°C
|
|
Application:
|
Industrial, HVAC, Automotive, Oil & Gas
|
|
Protectionrating:
|
IP65
|
|
Productname:
|
Pressure Measurement Instruments
|
|
Pressuretype:
|
Gauge, Absolute, Differential
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Mountingoptions:
|
Panel, Wall, Pipe
|
|
Responsetime:
|
≤ 1 Ms
|
|
Material:
|
Stainless Steel 316
|
| Parameter | Value |
|---|---|
| Sensing range | 6 mm (fixed) |
| Minimum sensing object | 0.8 * 1.2 mm opaque object |
| Hysteresis | 0.05 mm or less |
| Repeatability | 0.01 mm or less |
| Supply voltage | 5 to 24 V DC ±10% (Ripple P-P 10% or less) |
| Current consumption | 15 mA or less |
| Output - NPN type | NPN open-collector transistor |
| Output - PNP type | PNP open-collector transistor |
| Max sink current (NPN) | 50 mA |
| Max source current (PNP) | 50 mA |
| Applied voltage (NPN) | 30 V DC or less (between output and 0 V) |
| Applied voltage (PNP) | 30 V DC or less (between output and +V) |
| Residual voltage (50 mA) | 2 V or less |
| Residual voltage (16 mA) | 1 V or less |
| Output operation | Incorporated with 2 outputs: Light-ON / Dark-ON |
| Short-circuit protection | Incorporated |
| Response time (light interrupted) | 80 μs or less |
| Response time (light received) | 20 μs or less |
| Max response frequency | 3 kHz |
| Operation indicator | Orange LED (lights up under light received condition) |
| Pollution degree | 3 |
| Protection | IP64 (IEC) |
| Ambient illuminance | Fluorescent light: 1,000 ℓx at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 2,000 Hz frequency, 1.5 mm double amplitude (max acceleration 196 m/s²) in X, Y and Z directions for two hours each |
| Shock resistance | 15,000 m/s² acceleration (1,500 G approx.) in X, Y and Z directions three times each |
| Emitting element | Infrared LED (Peak emission wavelength: 855 nm, non-modulated) |
| Material - Enclosure | PBT |
| Material - Display section | Polycarbonate |
