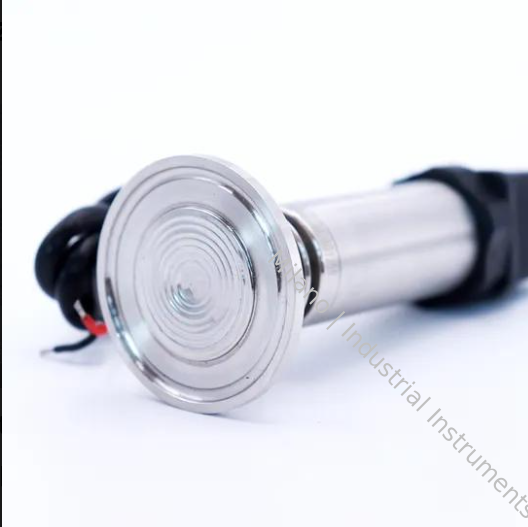

NEW-FLOW S506 Sanitary Inclined Display Pressure Transmitter CIP/SIP Compatible

The NEW-CONSENS S506 Sanitary Inclined Pressure Transmitter is a food & pharmaceutical grade hygienic pressure measuring device designed for sterile production lines. Its standout inclined rotatable display head solves the difficulty of reading data at complex pipeline installation angles without bending over.

Adopting full SS316L flush diaphragm structure with zero medium dead corners, it meets EHEDG & 3-A sanitary standards and withstands high-temperature CIP/SIP online cleaning. It converts pipeline pressure into standard 4–20mA or RS485 Modbus signal, widely matched with PLC, DCS and industrial control systems for real-time pressure tracking in hygienic process industries.

1. Unique 360° rotatable inclined display head, clear reading from all installation orientations
2. Hygienic flush SS316L diaphragm, no residue accumulation, easy high-temperature sterilization
3. Standard Tri-Clamp sanitary chuck interface (1" / 2" / 2.5") for fast disassembly & cleaning
4. Multiple signal options: 4–20mA DC, PNP/NPN switch output, optional RS485 Modbus RTU
5. Multiple precision grades: 0.1% / 0.2% / 0.5% FS to meet different measurement demands
6. IP67 fully sealed stainless steel housing, anti-corrosion against beverage, fermentation liquid
7. Built-in surge and short-circuit protection, stable long-term continuous operation in humid clean rooms
8. Wide medium temperature adaptability, support instantaneous 150℃ SIP high temp disinfection

• Dairy milk, juice, beer filling & fermentation pipeline pressure monitoring
• Pharmaceutical sterile preparation, injection liquid production line pressure control
• Edible oil, sauce, jam sanitary conveying pipeline overpressure monitoring
• Biochemical sterile reactor, purified water treatment system
• Beverage factory online CIP cleaning pressure detection
