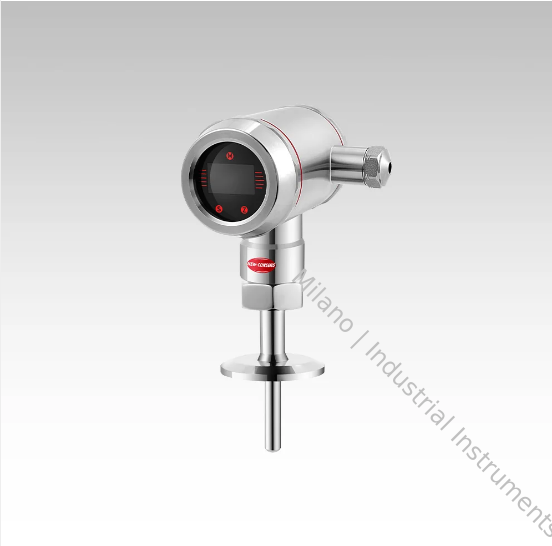

NEW-CONSENS T1000ZC Explosion-Proof Sanitary Integrated Temperature Transmitter 4-20mA HART RS485

NEW-CONSENS T1000ZC is an explosion‑proof sanitary integrated temperature transmitter designed for hazardous and hygienic industries. It combines a high‑precision RTD (PT100) or thermocouple sensor with signal conditioning, amplification, and a local digital display, providing 4‑20mA output with optional HART/RS485 communication.

• Explosion‑proof safety: Certified Ex db IIC T6 Gb / Ex ia IIC T6 Ga / Ex tb IIIC T80°C Db, safe for flammable gas and dust environments.
• Sanitary design: 304/316L stainless steel, Ra 0.4/0.8 μm polished surface, no dead corners; meets 3‑A, FDA, HACCP standards.
• Hygienic process: Supports CIP/SIP cleaning and sterilization; withstands 134°C steam and chemical detergents.
• Display & operation: Onboard LED/LCD digital display for local reading; easy configuration via buttons.
• High accuracy & stability: ±0.2% / ±0.5% FS; cold‑junction compensation, anti‑interference, long‑term drift immunity.
• Protection: IP66 rating; M12 electrical connector; sanitary clamp mounting (φ25.4/50.5/64 mm, customizable).
• Range: ‑70°C to 600°C; suitable for liquid, steam and gas media in hazardous sanitary processes.

• Food & Beverage: Alcohol, flavorings, and fermented product production; hazardous processing areas.
• Pharmaceutical & Biotech: Solvent recovery, sterile reactors, and explosive raw material storage.
• Chemical & Petrochemical: Hazardous liquid pipelines, reactors, and storage tanks (flammable media).
• Cosmetics & Personal Care: Alcohol‑based formulations and aerosol production lines.
• Energy & Utilities: Biogas plants, hydrogen production, and hazardous waste treatment facilities.
