Product Details
Place of Origin: USA
Brand Name: Ashcroft
Certification: CO
Model Number: HPS
Document: datasheet-ashcroft-hps-hp-p...ch.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 20-30
Delivery Time: 5-7 WORK DAYS
Payment Terms: T/T
Supply Ability: 99PCS 4-6 WEEKS
|
Operating Temperature:
|
-40°C To 85°C
|
Response Time:
|
≤ 10 Ms
|
Pressure Type:
|
Gauge, Absolute, Differential
|
Display Type:
|
LCD/LED Digital Display
|
Measurement Range:
|
0 To 1000 Psi
|
Material:
|
Stainless Steel
|
Application:
|
Industrial Process Control, HVAC, Automotive
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
Protection Rating:
|
IP65/IP67
|
Power Supply:
|
24 V DC
|
Accuracy:
|
±0.25% Of Full Scale
|
Product Name:
|
Pressure Measurement Instruments
|
Connection Type:
|
Threaded, Flanged
|
Mounting Options:
|
Panel, Wall, Pipe
|
|
Operating Temperature:
|
-40°C To 85°C
|
|
Response Time:
|
≤ 10 Ms
|
|
Pressure Type:
|
Gauge, Absolute, Differential
|
|
Display Type:
|
LCD/LED Digital Display
|
|
Measurement Range:
|
0 To 1000 Psi
|
|
Material:
|
Stainless Steel
|
|
Application:
|
Industrial Process Control, HVAC, Automotive
|
|
Output Signal:
|
4-20 MA, 0-10 V, Digital
|
|
Protection Rating:
|
IP65/IP67
|
|
Power Supply:
|
24 V DC
|
|
Accuracy:
|
±0.25% Of Full Scale
|
|
Product Name:
|
Pressure Measurement Instruments
|
|
Connection Type:
|
Threaded, Flanged
|
|
Mounting Options:
|
Panel, Wall, Pipe
|

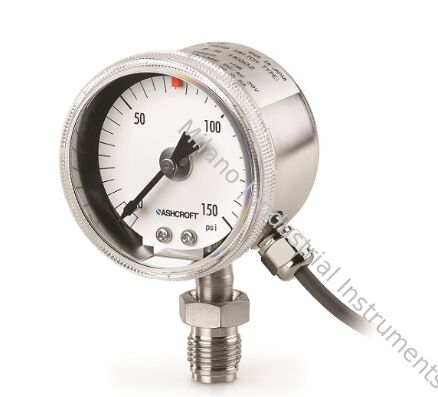

| Accuracy | ±1.6% of span ±5.0% of span |
| Dial Size | 50 mm |
| Pressure Ranges | 0 to 60 psi, 0 to 3,000 psi |
| Surface Finish | Tube and fitting < .38 μm Ra |
| Process Connection | ¼ Male or female VCR® type (9⁄16-18UNF) |
| Process Connection Location | Lower |
| Window Material | Polycarbonate |
| Dial | White face, aluminum |
| Pointer | Black, aluminum |
| Approvals | RoHS |
| Bourdon Tube | 316L SS |
| Gland/Socket Joints | 316L SS Argon Arc Fully Welded |
| Case | 304 SS |
| Window | Polycarbonate |
| Process Temperature Range | -4 °F to 140 °F (-20 °C to 60 °C) |
| Power | 10 W |
| Maximum Voltage | 30V AC/DC |
| Maximum Current | 0.5A DC |
| Dead Band | Within 10% of span |
