Product Details
Brand Name: WINTERS
Model Number: PFP-60TSA2NSE+D20-20LLD
Document: PFP.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 400USD
Delivery Time: 6-8WEEK
Payment Terms: T/T
Supply Ability: 1PC 6-8WEEK
|
Measurementrange:
|
0 To 1000 Psi
|
Pressuretype:
|
Gauge, Absolute, Differential
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Accuracy:
|
±0.5%
|
Productname:
|
Pressure Measurement Instruments
|
Connectiontype:
|
Threaded, Flanged
|
Protectionrating:
|
IP65
|
Material:
|
Stainless Steel
|
Powersupply:
|
24 V DC
|
Operatingtemperature:
|
-20°C To 85°C
|
Responsetime:
|
Less Than 1 Second
|
Application:
|
Industrial, HVAC, Automotive
|
Displaytype:
|
LCD, Analog Dial
|
Mountingoptions:
|
Panel, Wall, Pipe
|
Calibration:
|
Factory Calibrated
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Pressuretype:
|
Gauge, Absolute, Differential
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Accuracy:
|
±0.5%
|
|
Productname:
|
Pressure Measurement Instruments
|
|
Connectiontype:
|
Threaded, Flanged
|
|
Protectionrating:
|
IP65
|
|
Material:
|
Stainless Steel
|
|
Powersupply:
|
24 V DC
|
|
Operatingtemperature:
|
-20°C To 85°C
|
|
Responsetime:
|
Less Than 1 Second
|
|
Application:
|
Industrial, HVAC, Automotive
|
|
Displaytype:
|
LCD, Analog Dial
|
|
Mountingoptions:
|
Panel, Wall, Pipe
|
|
Calibration:
|
Factory Calibrated
|

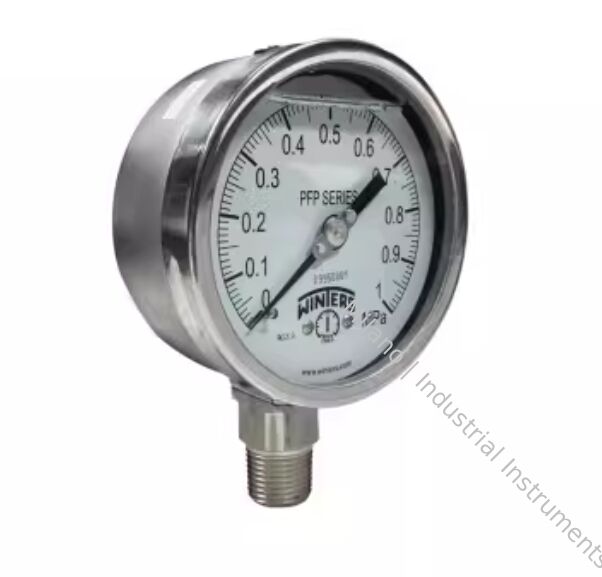

| Model | PFP-60TSA2NSE+D20-20LLD |
|---|---|
| Type | Premium Stainless Steel Liquid Filled Pressure Gauge |
| Dial Size | 4" (100 mm) |
| Case Material | AISI 304 Stainless Steel (with rear blowout plug) |
| Wetted Parts | 316 Stainless Steel / 316L Stainless Steel / Brass (optional) |
| Lens | Polycarbonate (High pressure BSP(G) and HP models: Tempered safety glass) |
| Bezel | AISI 304 Stainless Steel Bayonet Ring |
| Dial | White aluminum with black and red markings |
| Pointer | Black anodized aluminum with micrometer adjustable screw |
| Accuracy | ±1.0% of Full Scale (ANSI/ASME Grade 1A; ±1.5% option available) |
| Connection | 1/2" NPT male (Back/Bottom/Panel mount options; 1/4" NPT optional) |
| Fill Liquid | Glycerin (standard); Silicone oil / Low-temperature silicone oil / High-temperature synthetic oil (optional); Dry case available |
| Ambient Temperature (Dry) | -40°F to 250°F (-40°C to 120°C) |
|---|---|
| Ambient Temperature (Glycerin Filled) | -4°F to 150°F (-20°C to 65°C) |
| Process Temperature | -40°F to 250°F (-40°C to 120°C) |
| Enclosure Rating | NEMA 4X / IP66 (EN60529-1) |
| Over-Pressure Limit | 25% for pressures ≤1,450 PSI (9,998 kPa); 15% for pressures ＞1,500 PSI |
Available ranges from 0...60 kPa to 0...20,000 psi. Vacuum ranges available: -1...0 bar / 30" Hg Vac.
