Product Details
Brand Name: WINTERS

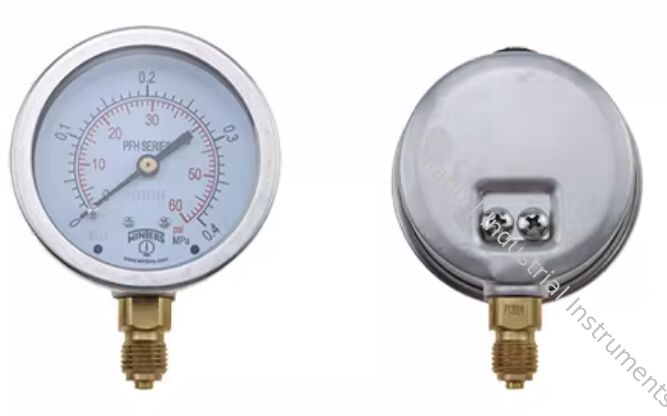

Model Number: PFH-25 Pressure Gauge with Axial 304SS
Document: PFH.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 20SUD
Delivery Time: 1-2WEEK
Payment Terms: T/T
Supply Ability: 1PC 1-2WEEK
|
Productname:
|
Pressure Measurement Instruments
|
Measurementrange:
|
0 To 1000 Psi
|
Powersupply:
|
24 V DC
|
Application:
|
Industrial, HVAC, Automotive, Oil & Gas
|
Displaytype:
|
LCD, Analog Dial
|
Calibration:
|
Factory Calibrated, Field Calibratable
|
Material:
|
Stainless Steel, Brass
|
Operatingtemperature:
|
-20°C To 80°C
|
Pressuretype:
|
Gauge, Absolute, Differential
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Protectionrating:
|
IP65
|
Responsetime:
|
Less Than 1 Second
|
Connectiontype:
|
Threaded, Flanged
|
Accuracy:
|
±0.5% Of Full Scale
|
Mountingoptions:
|
Panel, Wall, Pipe
|
|
Productname:
|
Pressure Measurement Instruments
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Powersupply:
|
24 V DC
|
|
Application:
|
Industrial, HVAC, Automotive, Oil & Gas
|
|
Displaytype:
|
LCD, Analog Dial
|
|
Calibration:
|
Factory Calibrated, Field Calibratable
|
|
Material:
|
Stainless Steel, Brass
|
|
Operatingtemperature:
|
-20°C To 80°C
|
|
Pressuretype:
|
Gauge, Absolute, Differential
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Protectionrating:
|
IP65
|
|
Responsetime:
|
Less Than 1 Second
|
|
Connectiontype:
|
Threaded, Flanged
|
|
Accuracy:
|
±0.5% Of Full Scale
|
|
Mountingoptions:
|
Panel, Wall, Pipe
|
| Model | PFH-25 |
| Brand | Winters Instruments |
| Dial Size | 2.5" (63mm) |
| Case Material | AISI 304 Stainless Steel |
| Wetted Parts | Brass (Phosphor Bronze Bourdon Tube; 316SS Optional) |
| Window Material | Polycarbonate (PC) |
| Bezel | AISI 304 Stainless Steel Crimped Bezel |
| Movement | OT 59 Brass |
| Accuracy Class | ±1.5% Full Scale (FS) |
| Scale | Single (psi) or Dual Scale (psi/kPa, psi/bar, etc.) |
| Pressure Range | Multiple Ranges Available (0-15 psi, 0-300 psi, 0-2000 psi, 0-5000 psi) |
| Connection | 1/4" NPT Male (Standard) with Restrictor Screw; 1/2" NPT Optional |
| Mounting Type | Center Back (CB) Mounting (Radial) |
| Ambient Temperature | Dry: -40°C to 93°C; Glycerin-Filled: -20°C to 65°C |
| Medium Temperature | Dry: -40°C to 93°C; Glycerin-Filled: -20°C to 65°C |
| Storage Temperature | -20°C to 70°C |
| Over-Pressure Limit | 25% FS for pressures ≤1,450 psi; 15% FS for pressures >1,450 psi |
| IP Rating | IP65 (EN 60529) |
| Fill Liquid | Glycerin (Standard); Silicone Optional; Dry Case Available |
