Product Details
Place of Origin: Denmark
Brand Name: PR

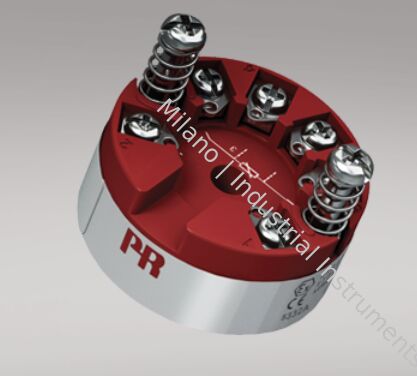

Model Number: PR 5337A
Document: 5337v104_uk.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 99USD
Delivery Time: 5-7 work days
Payment Terms: T/T
Supply Ability: 99PCS 4-6 WEEKS
|
Measurementtype:
|
Gauge, Absolute, Differential
|
Productname:
|
Pressure Measurement Instruments
|
Powersupply:
|
12-36 V DC
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Calibration:
|
Factory Calibrated, Field Calibratable
|
Application:
|
Industrial, HVAC, Automotive, Oil & Gas
|
Operatingtemperature:
|
-40°C To 125°C
|
Connectiontype:
|
Threaded, Flanged
|
Responsetime:
|
≤ 1 Ms
|
Protectionrating:
|
IP65, IP67
|
Pressurerange:
|
0 To 10,000 Psi
|
Displaytype:
|
LCD, LED
|
Mountingoptions:
|
Panel, Wall, Pipe
|
Accuracy:
|
±0.1% FS
|
Material:
|
Stainless Steel, Brass
|
|
Measurementtype:
|
Gauge, Absolute, Differential
|
|
Productname:
|
Pressure Measurement Instruments
|
|
Powersupply:
|
12-36 V DC
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Calibration:
|
Factory Calibrated, Field Calibratable
|
|
Application:
|
Industrial, HVAC, Automotive, Oil & Gas
|
|
Operatingtemperature:
|
-40°C To 125°C
|
|
Connectiontype:
|
Threaded, Flanged
|
|
Responsetime:
|
≤ 1 Ms
|
|
Protectionrating:
|
IP65, IP67
|
|
Pressurerange:
|
0 To 10,000 Psi
|
|
Displaytype:
|
LCD, LED
|
|
Mountingoptions:
|
Panel, Wall, Pipe
|
|
Accuracy:
|
±0.1% FS
|
|
Material:
|
Stainless Steel, Brass
|
| Operating temperature | -40°C to +85°C |
| Calibration temperature | 20...28°C |
| Relative humidity | < 95% RH (non-condensing) |
| Protection degree (enclosure/terminal) | IP68 / IP00 |
| Dimensions | Ø 44 x 20.2 mm |
| Weight approx. | 50 g |
| Wire size | 1 x 1.5 mm² stranded wire |
| Screw terminal torque | 0.4 Nm |
| Vibration | IEC 60068-2-6 |
| 2...25 Hz | ±1.6 mm |
| 25...100 Hz | ±4 g |
| Supply voltage | 8.0...35 VDC |
| Isolation voltage, test / working | 1.5 kVAC / 50 VAC |
| Response time (programmable) | 1...60 s |
| Voltage drop | 8.0 VDC |
| Signal / noise ratio | > 60 dB |
| Programming | HART & PR 5909 Loop Link communications interface |
| Accuracy | Better than 0.05% of selected range |
| Signal dynamics, input | 22 bit |
| Signal dynamics, output | 16 bit |
| EMC immunity influence | < ±0.1% of span |
| Extended EMC immunity: NAMUR NE21, A criterion, burst | < ±1% of span |
| Max. offset | 50% of selected max. value |
| RTD type | Pt50/100/200/500/1000; Ni50/100/120/1000 |
| Cable resistance per wire | 5 Ω (up to 50 Ω per wire possible with reduced accuracy) |
| Sensor current | Nom. 0.2 mA |
| Thermocouple type | B, E, J, K, L, N, R, S, T, U, W3, W5, LR |
| Cold junction compensation (CJC) | Constant, internal or external via Pt100 or Ni100 sensor |
| Measurement range | -800...+800 mV |
| Min. measurement range (span) | 2.5 mV |
| Input resistance | 10 MΩ |
| Signal range | 4…20 mA |
| Min. signal range | 16 mA |
| Load (@ current output) | ≤ (Vsupply - 8) / 0.023 [Ω] |
| Sensor error indication | Programmable 3.5…23 mA |
| NAMUR NE43 Upscale/Downscale | 23 mA / 3.5 mA |
| Updating time | 440 ms |
| HART protocol revisions | HART 7 and HART 5 |
| ATEX | II 3 G Ex nA [ic] IIC T6...T4 Gc, II 3 G Ex ec [ic] IIC T6...T4 Gc, II 3 G Ex ic IIC T6...T4 Gc, II 3 D Ex ic IIIC Dc |
| IECEx | Ex nA [ic] IIC T6…T4 Gc, Ex ec [ic] IIC T6…T4 Gc, Ex ic IIC T6…T4 Gc, Ex ic IIIC Dc |
| CSA | Cl. I, Div. 2, Gp. A, B, C, D T6...T4, Ex nA[ic] IIC T6…T4 Gc |
| INMETRO | Ex ec [ic] IIC T6...T4 Gc, Ex ic IIC T6...T4 Gc, Ex ic IIIC Dc |
| EMC | 2014/30/EU |
| ATEX | 2014/34/EU |
| RoHS | 2011/65/EU |
| EAC | TR-CU 020/2011 |
| EAC Ex | TR-CU 012/2011 |
| ATEX | DEKRA 20ATEX0109X |
| IECEx | DEK 20.0063X |
| CSA | 1125003 |
| INMETRO | DEKRA 23.0011X |
| EAC Ex | EAEU KZ 7500361.01.01.08756 |
| DNV Marine | TAA0000101 |
| SIL | Hardware assessed for use in SIL applications |
