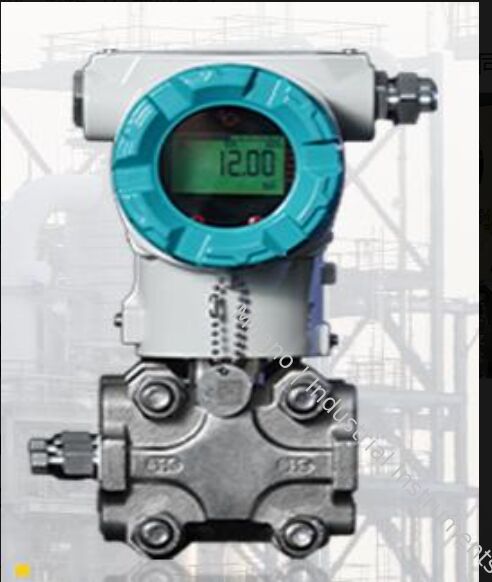

CAF SOLUTION S800 Intelligent Differential Pressure Transmitter Micro-machining And Powerful Communication Functions

Name: CAF SOLUTION S800 Intelligent Differential Pressure Transmitter Micro-machining And Powerful Communication Functions
Brand: Shaanxi Qindiyuan Environmental Protection Equipment Co., Ltd.
SKU: CAF SOLUTION S800
Price: 390.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CAF

Certification: CO

Model Number: CAF SOLUTION S800

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 281-500USD

Packaging Details: Standard cardboard box packaging

Delivery Time: 2-4weeks

Payment Terms: T/T

Supply Ability: 99pcs/2-4weeks

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            S800 intelligent pressure transmitter, differential pressure transmitter with micro-machining, pressure measurement instrument with communication


Productname:	Pressure Measurement Instruments	Calibration:	Factory Calibrated, Field Calibratable
Operatingtemperature:	-20°C To 85°C	Responsetime:	≤ 1 Ms
Measurementrange:	0 To 1000 Psi	Applications:	Industrial, Automotive, HVAC, Oil & Gas
Powersupply:	12-36 V DC	Outputsignal:	4-20 MA, 0-10 V, Digital
Protectionrating:	IP65, IP67	Material:	Stainless Steel, Brass
Accuracy:	±0.25% FS

Productname:	Pressure Measurement Instruments
Calibration:	Factory Calibrated, Field Calibratable
Operatingtemperature:	-20°C To 85°C
Responsetime:	≤ 1 Ms
Measurementrange:	0 To 1000 Psi
Applications:	Industrial, Automotive, HVAC, Oil & Gas
Powersupply:	12-36 V DC
Outputsignal:	4-20 MA, 0-10 V, Digital
Protectionrating:	IP65, IP67
Material:	Stainless Steel, Brass
Accuracy:	±0.25% FS

CAF SOLUTION S800 Intelligent Differential Pressure Transmitter Micro-machining And Powerful Communication Functions

1. Dynamic three-diaphragm anti-overload structure can measure extremely low differential pressure under very high static pressure
2. Using HART communication protocol, it can be configured with most of the field
3. Under complex and harsh working conditions, the installation methods are diverse and reasonable
4. No mechanical moving parts, less maintenance work, adjustable damping 5. Optional high static pressure 42Mpa. Micro differential pressure 1KPa
6. The zero point stability of the pressure transmitter can reach 0.05%FS/year
7. Anti-electromagnetic field interference: With high output signal, anti-interference design and metal shell, the pressure transmitter has a high suppression ability to external electromagnetic fields. It has the same anti-interference ability as programmable control.
8. Working in harsh environment: The pressure transmitter is very durable. Its industrial-grade products can withstand a minimum of 107 full-scale pressure cycles.
9. Support on-site key range migration, unit modification, primary variable zeroing, and output calibration

Item	Specification
Supply Voltage	16~28VDC
Output Signal	4~20mA / HART digital output
Load Resistance	RL ≤ 50(Vs-9); Min. loop resistance for communication: 250Ω
Connection Cable	Shielded wire
Overall Accuracy	±0.2%FS, ±0.5%FS
Zero Temperature Drift	＜0.2%FS
Overload Pressure	2 times rated pressure
Turndown Ratio	15:1
Max Static Pressure	42MPa
Explosion-proof Grade	EX db II C T6 Gb
Amplifier Working Temp	-29~+93℃ (LT type: -25~+70℃)
Measuring Element Temp	Silicone oil filled: -40~+104℃
Remote Type Medium Temp	High temp silicone oil: +15~315℃ Ordinary silicone oil: -40~+150℃
Ambient Temperature	-20~85℃
Vibration Resistance	≤±0.1%FS (15~2000Hz)
Filling Liquid	Silicone oil
Housing	Die-cast aluminum alloy, epoxy coated
Protection Class	IP67
Sealing Material	Fluororubber
Weight	5.5KG
