Product Details
Brand Name: WINTERS
Model Number: TBM-60
Document: TBM.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: 80USD
Delivery Time: 6-8WEEK
Payment Terms: T/T
Supply Ability: 1PC 6-8WEEK
|
Accuracy:
|
±0.5% Of Full Scale
|
Displaytype:
|
Digital LCD
|
Protectionrating:
|
IP65
|
Powersupply:
|
24 V DC
|
Calibration:
|
Factory Calibrated
|
Outputsignal:
|
4-20 MA, 0-10 V
|
Productname:
|
Pressure Measurement Instruments
|
Material:
|
Stainless Steel
|
Application:
|
Industrial, HVAC, Automotive
|
Connectiontype:
|
1/4 Inch NPT
|
Responsetime:
|
Less Than 1 Second
|
Measurementrange:
|
0 To 1000 Psi
|
Mountingoptions:
|
Panel, Wall, Pipe
|
Pressuretype:
|
Gauge, Absolute, Differential
|
Operatingtemperature:
|
-40°C To 85°C
|
|
Accuracy:
|
±0.5% Of Full Scale
|
|
Displaytype:
|
Digital LCD
|
|
Protectionrating:
|
IP65
|
|
Powersupply:
|
24 V DC
|
|
Calibration:
|
Factory Calibrated
|
|
Outputsignal:
|
4-20 MA, 0-10 V
|
|
Productname:
|
Pressure Measurement Instruments
|
|
Material:
|
Stainless Steel
|
|
Application:
|
Industrial, HVAC, Automotive
|
|
Connectiontype:
|
1/4 Inch NPT
|
|
Responsetime:
|
Less Than 1 Second
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Mountingoptions:
|
Panel, Wall, Pipe
|
|
Pressuretype:
|
Gauge, Absolute, Differential
|
|
Operatingtemperature:
|
-40°C To 85°C
|

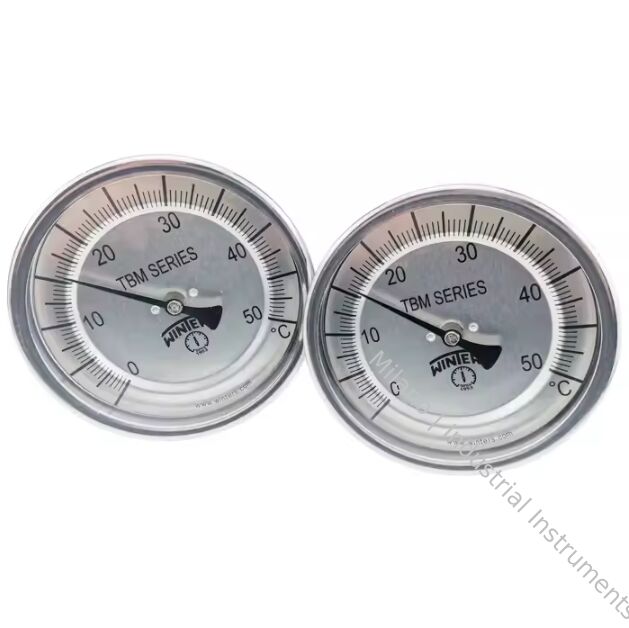

The WINTERS TBM-60 is a high-performance 6-inch dial bimetal thermometer designed for reliable temperature measurement in demanding industrial environments. Featuring hermetically sealed construction and IP65 protection, this instrument delivers accurate readings while withstanding harsh conditions.
| Parameter | Specification |
|---|---|
| Brand | WINTERS |
| Model | TBM-60 |
| Product Type | Bi-Metal Thermometer |
| Sensing Element | Bi-metallic coil (304 stainless steel) |
| Application | General industrial, HVAC, process, wastewater |
| Parameter | Specification | Unit |
|---|---|---|
| Temperature Range | -40°F to 500°F (-40°C to 260°C) | °F/°C |
| Accuracy | ±1% of Full Scale | % FS |
| Response Time | Typical 10 seconds | seconds |
| Max. Operating Pressure | 125 psi (861 kPa) | psi/kPa |
| Parameter | Specification |
|---|---|
| Dial Size | 6 inch (150 mm) |
| Stem Length Options | 2.5", 4", 6", 9", 12" (custom up to 60") |
| Stem Material | 304 Stainless Steel (316 SS optional) |
| Stem Diameter | 0.25 inch (6.35 mm) |
| Process Connection | 1/2 inch NPT Male |
| Connection Type | Back, bottom, or adjustable angle mounting |
| Housing Material | 304 Stainless Steel (316 SS optional) |
| Dial Protection | Glass lens (safety glass optional) |
| Weight | Approx. 1.0 lbs (0.45 kg) |
