Product Details
Brand Name: WINTERS
Model Number: TBM-50
Document: TBM.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: 72USD
Delivery Time: 6-8WEEK
Payment Terms: T/T
Supply Ability: 1PC 6-8WEEK
|
Mountingoptions:
|
Panel, Wall, Pipe
|
Applications:
|
Industrial, Automotive, HVAC, Oil & Gas
|
Protectionrating:
|
IP65, IP67
|
Powersupply:
|
12-36 V DC
|
Calibration:
|
Factory Calibrated, Field Calibrated
|
Material:
|
Stainless Steel, Brass
|
Measurementtype:
|
Gauge, Absolute, Differential
|
Accuracy:
|
±0.1% FS
|
Pressurerange:
|
0 To 10,000 Psi
|
Connectiontype:
|
Threaded, Flanged
|
Operatingtemperature:
|
-40°C To 85°C
|
Responsetime:
|
≤ 1 Ms
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Displaytype:
|
LCD, LED
|
Productname:
|
Pressure Measurement Instruments
|
|
Mountingoptions:
|
Panel, Wall, Pipe
|
|
Applications:
|
Industrial, Automotive, HVAC, Oil & Gas
|
|
Protectionrating:
|
IP65, IP67
|
|
Powersupply:
|
12-36 V DC
|
|
Calibration:
|
Factory Calibrated, Field Calibrated
|
|
Material:
|
Stainless Steel, Brass
|
|
Measurementtype:
|
Gauge, Absolute, Differential
|
|
Accuracy:
|
±0.1% FS
|
|
Pressurerange:
|
0 To 10,000 Psi
|
|
Connectiontype:
|
Threaded, Flanged
|
|
Operatingtemperature:
|
-40°C To 85°C
|
|
Responsetime:
|
≤ 1 Ms
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Displaytype:
|
LCD, LED
|
|
Productname:
|
Pressure Measurement Instruments
|
| Parameter | Specification | Details |
|---|---|---|

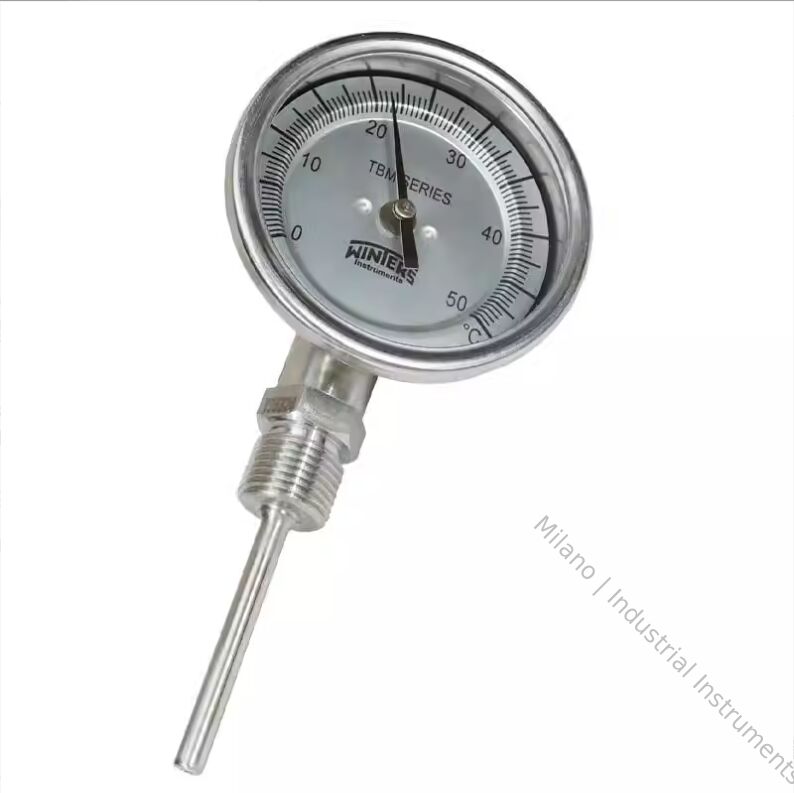

| Brand | WINTERS | Bi-Metal Thermometer |
| Model | TBM-30 | 3-inch dial standard version |
| Product Type | Bi-Metal Thermometer | Hermetically sealed construction |
| Sensing Element | Bi-metallic coil | 304 stainless steel material |
| Application | General purpose industrial, HVAC, process, wastewater - Suitable for various industrial temperature measurement scenarios | |
| Parameter | Specification | Unit | Details |
|---|---|---|---|
| Temperature Range | -40°F to 500°F (-40°C to 260°C) | °F/°C | Dual-scale (Fahrenheit and Celsius) |
| Accuracy | ±1% of Full Scale | % FS | Conforms to ASME B40.200 standard |
| Calibration | External recalibrator screw | - | Allows on-site recalibration for accuracy maintenance |
| Response Time | Typical 10 seconds | seconds | Depends on stem length and medium conditions |
| Parameter | Specification | Unit | Details |
|---|---|---|---|
| Dial Size | 3 inch (75 mm) | inch/mm | Anti-parallax dial to reduce reading errors |
| Stem Length | 2.5", 4", 6", 9", 12" | inch | Optional custom lengths available |
| Stem Material | 304 Stainless Steel | - | Welded stem for enhanced durability |
| Stem Diameter | 0.25 inch (6.35 mm) | inch/mm | Standard stem diameter |
| Process Connection | 1/2 inch NPT Male | inch | NPT standard thread, can be used with thermowells |
| Connection Type | Back, bottom, or adjustable angle | - | Flexible installation options |
| Housing Material | 304 Stainless Steel | - | Hermetically sealed construction |
| Dial Protection | Glass lens | - | Resistant to impact and chemical corrosion |
| Weight | Approx. 0.5 lbs (0.23 kg) | lbs/kg | Standard configuration weight |
| Parameter | Specification | Unit | Details |
|---|---|---|---|
| Operating Temperature | -40°F to 250°F (-40°C to 121°C) | °F/°C | Continuous operation temperature range |
| Storage Temperature | -40°F to 250°F (-40°C to 121°C) | °F/°C | No damage under non-operating conditions |
| Protection Class | IP65 | - | Dust and water jet proof per IEC 60529 |
