WINTERS General-purpose Pressure Sensor LE2

Product Details

Brand Name: WINTERS

Model Number: LE2

Document: LE2.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 100USD

Delivery Time: 1-2WEEK

Payment Terms: T/T

Supply Ability: 1PC 1-2WEEK

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            general-purpose pressure sensor LE2, WINTERS pressure measurement instrument, LE2 pressure sensor with warranty


Calibration:	Factory Calibrated	Material:	Stainless Steel
Connectiontype:	1/4 Inch NPT	Outputsignal:	4-20 MA, 0-10 V
Mounting:	Panel Mount Or Pipe Mount	Productname:	Pressure Measurement Instruments
Application:	Industrial, HVAC, Automotive	Displaytype:	Digital LCD
Accuracy:	±0.25% Of Full Scale	Pressuretype:	Gauge, Absolute, Differential
Responsetime:	≤ 1 Second	Powersupply:	24 V DC
Measurementrange:	0 To 1000 Psi	Protectionrating:	IP65
Operatingtemperature:	-20°C To 85°C

Calibration:	Factory Calibrated
Material:	Stainless Steel
Connectiontype:	1/4 Inch NPT
Outputsignal:	4-20 MA, 0-10 V
Mounting:	Panel Mount Or Pipe Mount
Productname:	Pressure Measurement Instruments
Application:	Industrial, HVAC, Automotive
Displaytype:	Digital LCD
Accuracy:	±0.25% Of Full Scale
Pressuretype:	Gauge, Absolute, Differential
Responsetime:	≤ 1 Second
Powersupply:	24 V DC
Measurementrange:	0 To 1000 Psi
Protectionrating:	IP65
Operatingtemperature:	-20°C To 85°C

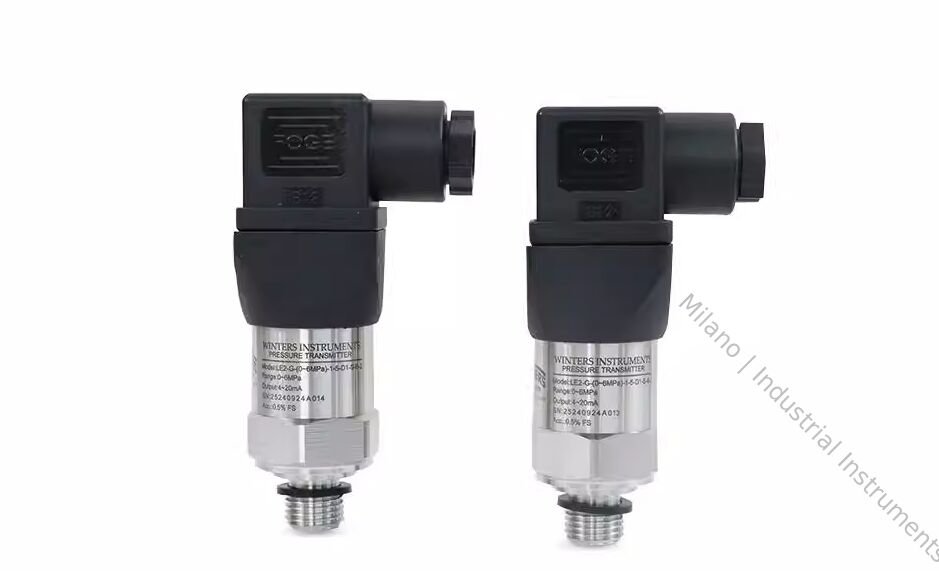

WINTERS General-purpose Pressure Sensor LE2

The WINTERS LE2 is a versatile general-purpose pressure transducer featuring piezoresistive silicon technology with all-stainless steel construction. Designed for reliable performance across industrial applications including HVAC systems, compressors, and water treatment equipment.

Technical Specifications

Parameter Category	Parameter Name	Specification	Unit	Remarks
Basic Information	Brand	WINTERS	-	General Purpose Pressure Transducer
Basic Information	Model	LE2	-	Standard Version
Basic Information	Measurement Principle	Piezoresistive Silicon	-	All stainless steel construction
Basic Information	Pressure Type	Gauge Pressure	-	Optional absolute pressure on request
Performance Parameters	Pressure Range	0-0.1 bar to 0-600 bar	bar	Covering multiple sub-ranges
Performance Parameters	Accuracy	0.5% FS (standard), 0.25% FS (optional)	% FS	Non-linearity + Hysteresis + Repeatability
Performance Parameters	Response Time	Typical 10 ms, Maximum 30 ms	ms	10% - 90% of full scale
Performance Parameters	Long-term Stability	0.15% FS/Year	% FS/Year	Under normal operating conditions
Performance Parameters	Overpressure Rating	1.5 x Full Scale	times FS	Maximum working overpressure
Performance Parameters	Burst Pressure	2 x Full Scale	times FS	Ultimate pressure resistance
Electrical Parameters	Output Signal	4-20 mA DC, 0-10 V DC	-	Two options available
Electrical Parameters	Supply Voltage	12-30 V DC	V DC	Typical 24 V DC industrial power supply
Mechanical Parameters	Process Connection	G1/4", 1/4" NPT, optional other threads	-	Male thread, 316L stainless steel
Mechanical Parameters	Body Material	316L Stainless Steel	-	Corrosion-resistant for most media
Environmental Parameters	Ambient Temperature	-40 to 85	°C	Continuous operation
Environmental Parameters	Protection Class	IP65, IP67 (depending on electrical connection)	-	Conforms to IEC 60529 standard
