Product Details
Place of Origin: China
Brand Name: NEW-FLOW
Certification: CO
Model Number: ETS5000 Explosion-proof temperature switch
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 298-580USD
Packaging Details: Export standard carton with shockproof inner foam
Delivery Time: 2-4weeks
Payment Terms: T/T
Supply Ability: 99pcs/2-4weeks
|
Response Time:
|
< 10 Ms
|
Protectionrating:
|
IP65
|
Stability:
|
0.2%/Year
|
Displaytype:
|
LCD Digital Display
|
Wire:
|
2 Wire(standard),3 Or 5 Wire Optional
|
Measure Range:
|
2 Bar......600 Bar
|
Broken Pressure:
|
3XRP(rated Pressure)
|
Measuring Range:
|
400 Mbar... 400 Bar
|
Connection:
|
1/2NPT 1/4NPT
|
Supply:
|
1.5mAD
|
Voltage:
|
5±0.5VDc
|
Protection Level:
|
IP65/ IP68
|
Protection Rating:
|
IP67
|
Operating Voltage:
|
110V, 220V, 240V
|
|
Response Time:
|
< 10 Ms
|
|
Protectionrating:
|
IP65
|
|
Stability:
|
0.2%/Year
|
|
Displaytype:
|
LCD Digital Display
|
|
Wire:
|
2 Wire(standard),3 Or 5 Wire Optional
|
|
Measure Range:
|
2 Bar......600 Bar
|
|
Broken Pressure:
|
3XRP(rated Pressure)
|
|
Measuring Range:
|
400 Mbar... 400 Bar
|
|
Connection:
|
1/2NPT 1/4NPT
|
|
Supply:
|
1.5mAD
|
|
Voltage:
|
5±0.5VDc
|
|
Protection Level:
|
IP65/ IP68
|
|
Protection Rating:
|
IP67
|
|
Operating Voltage:
|
110V, 220V, 240V
|
Overview

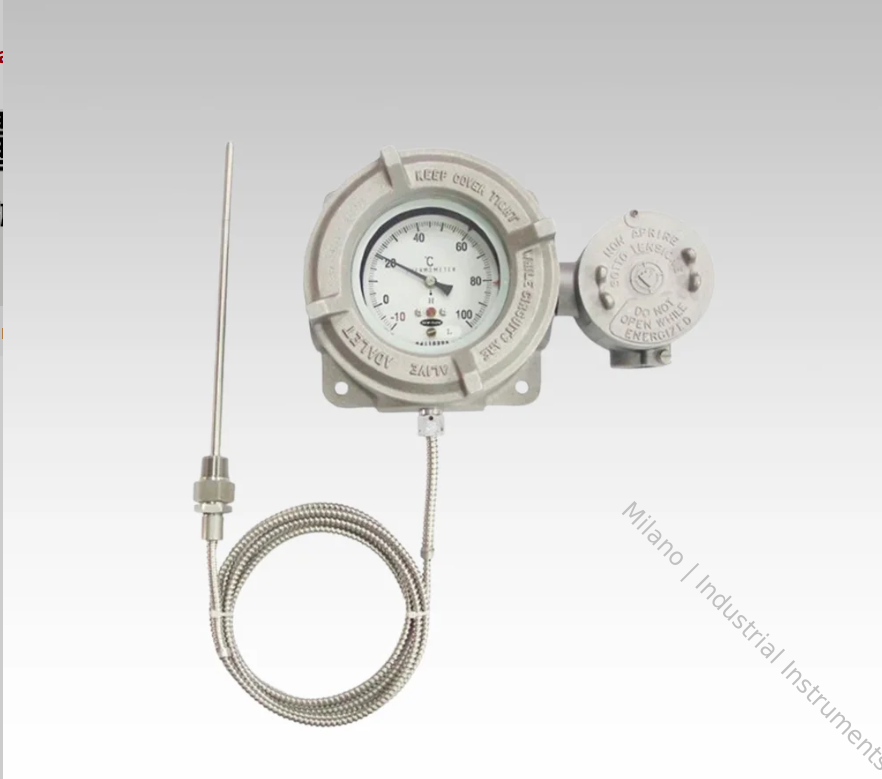

The NEW-FLOW ETS5000 Explosion-proof Temperature Switch is a capillary remote mechanical temperature controller specially designed for flammable, explosive hazardous working environments. Equipped with stainless steel 316 sensing bulb and heavy-duty die-cast aluminum explosion-proof enclosure, it realizes automatic circuit on/off when temperature hits preset value, providing reliable over-temperature alarm and equipment protection for oilfield, refinery, chemical reactor, underground mining machinery.
| Item | Standard Parameter |
|---|---|
| Model | NEW-FLOW ETS5000 |
| Type | Capillary remote explosion-proof temperature switch |
| Sensing Medium | Liquid (ETS5000-L: -70~400℃) / Gas (ETS5000-G: -200~650℃) |
| Wetted Material | SS316 stainless steel bulb & capillary |
| Explosion Grade | Class I Groups B/C/D; Class II Groups E/F/G |
| Micro Switch | SPDT single / dual, AC250V 5A/10A |
| Protection Class | IP65 |
| Housing | Die-cast aluminum alloy explosion shell |
| Dial Size | 6 inch local temperature indicator |
| Capillary Custom Length | 1m ~ 30m |
| Process Connection | 1/2" NPT / 3/4" NPT optional |
Application Scenarios
