Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO

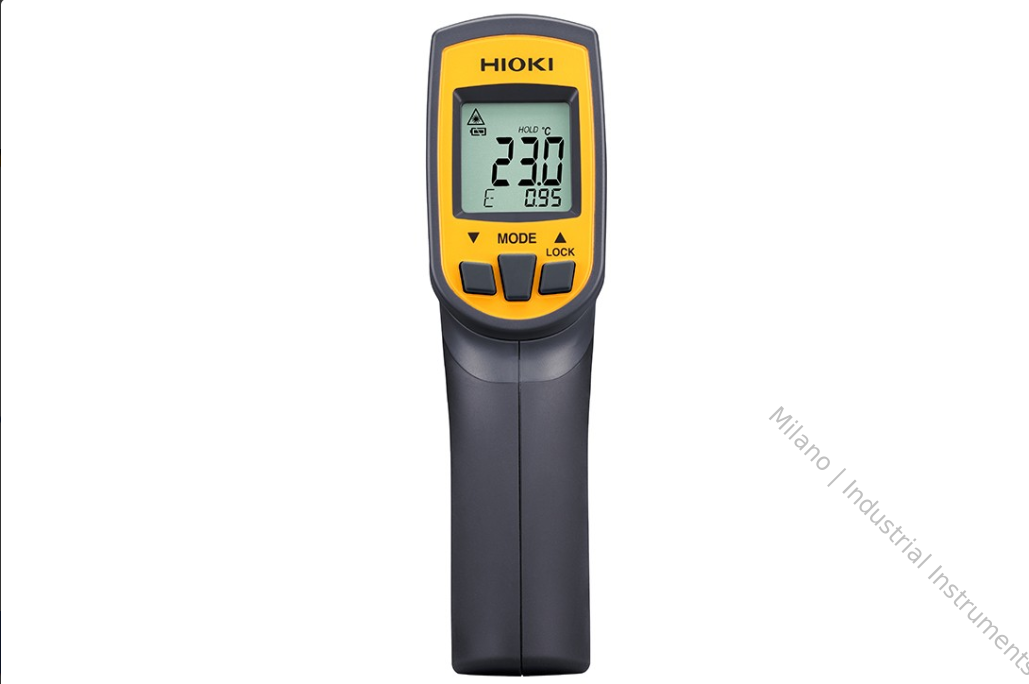

Model Number: HIOKI Infrared Thermometer FT3700-20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 125-255USD
Packaging Details: Standard cardboard box packaging
Delivery Time: 6-8weeks
Payment Terms: T/T
Supply Ability: 99pcs/6-8weeks
|
Measurementtype:
|
Gauge, Absolute, Differential
|
Calibration:
|
Factory Calibrated, Field Calibratable
|
Powersupply:
|
12-36 V DC
|
Measurementrange:
|
0 To 1000 Psi
|
Operatingtemperature:
|
-40°C To 85°C
|
Responsetime:
|
≤ 1 Ms
|
Application:
|
Industrial, HVAC, Automotive, Oil & Gas
|
Displaytype:
|
LCD, LED
|
Material:
|
Stainless Steel, Brass
|
|
Measurementtype:
|
Gauge, Absolute, Differential
|
|
Calibration:
|
Factory Calibrated, Field Calibratable
|
|
Powersupply:
|
12-36 V DC
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Operatingtemperature:
|
-40°C To 85°C
|
|
Responsetime:
|
≤ 1 Ms
|
|
Application:
|
Industrial, HVAC, Automotive, Oil & Gas
|
|
Displaytype:
|
LCD, LED
|
|
Material:
|
Stainless Steel, Brass
|
| FT3700-20 | FT3701-20 | |
|---|---|---|
| Test Range | -60.0~550.0°C, resolution: 0.1°C | -60.0 ~ 760.0°C, resolution: 0.1°C |
| Test accuracy | -35.0 ～ -0.1℃: ±10 %rdg. ±2℃ 0.0 ～ 100.0℃: ±2℃ 100.1 ～ 500.0℃: ±2 % rdg. ※ -60.0 ~ -35.1°C, 500.1°C ~: No precision requirements |
|
| Response time | 1 second (90% response) | |
| Test wavelength | 8 ～ 14 μm | |
| Radiance compensation | ε = 0.10 ~ 1.00 (0.01 steps) | |
| Test your field of vision | The distance of 1m is φ83mm ※Distance D: field of view S = 12:1 |
The distance of 3m is φ100mm ※ Distance D: field of view S = 30:1 |
| Aim | 2-point infrared laser positioning (Class 2, maximum 1mW), red | |
| Function | Maximum/Minimum/Difference/Average Measurement of Maximum and Minimum Values, Upper and Lower Limit Alarm Functions, Continuous Measurement Mode, Automatic Power Saving, Backlight | |
| Power supply | AAA alkaline battery *2, continuous use: approximately 140 hours (with laser positioning, backlight, and buzzer turned off) | |
| Volume and weight | 48W*172H*119Dmm, 256g (including battery) | |
| Attachment | User manual, carrying case, AA alkaline battery (LR03) *2 | |
