Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO

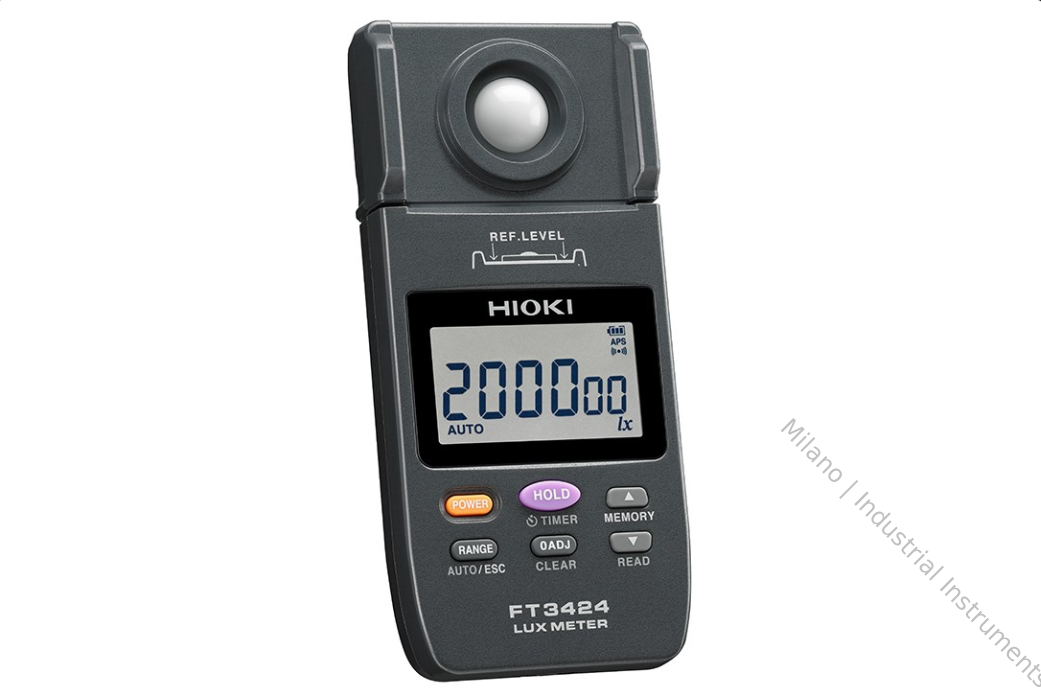

Model Number: HIOKI Illuminance meter FT3424
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 300-600USD
Packaging Details: Standard cardboard box packaging
Delivery Time: 6-8weeks
Payment Terms: T/T
Supply Ability: 99pcs/6-8weeks
|
Applications:
|
Industrial, Automotive, HVAC, Oil & Gas
|
Powersupply:
|
24 V DC
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Responsetime:
|
Less Than 1 Second
|
Pressurerange:
|
0 To 10000 Psi
|
Mountingtype:
|
Panel, Wall, Pipe
|
Accuracy:
|
±0.25% Of Full Scale
|
Operatingtemperature:
|
-20°C To 80°C
|
Outputinterface:
|
RS485, HART, Modbus
|
|
Applications:
|
Industrial, Automotive, HVAC, Oil & Gas
|
|
Powersupply:
|
24 V DC
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Responsetime:
|
Less Than 1 Second
|
|
Pressurerange:
|
0 To 10000 Psi
|
|
Mountingtype:
|
Panel, Wall, Pipe
|
|
Accuracy:
|
±0.25% Of Full Scale
|
|
Operatingtemperature:
|
-20°C To 80°C
|
|
Outputinterface:
|
RS485, HART, Modbus
|
| Image sensor | Silicon photodiodes |
|---|---|
| Measurement range switching | Automatic/manual |
| Linearity | ±2% rdg. (For values above 3000lx, the display value is 1.5x) |
| Accuracy ensures a range of temperature and humidity | 21°C~27°C, below 75% rh (non-condensing) |
| Response time | Automatic range: within 5 seconds; manual range: within 2 seconds |
| D/A output | Output level: 2 V / range f.s. (Output 2.5 V when exceeding the range f.s.) Output accuracy: ±1% RDG. ±5 mV (for display points) |
| Function | Timer hold, memory (up to 99), hold, auto power saving, beep, backlight, zero setting |
| Applicable standards | DIN 5032-7: 1985 class B |
| Power supply | No.5 alkaline battery (LR6) × 2, maximum rated power 500mA, continuous usage time: 300h, or No.5 Menggan battery (R6) × 2, USB bus power supply DC 5V |
| Volume and weight | Approx. 78W × 170H × 39D mm Approx. 300g (including battery) |
| Attachment | User manual × 1, AAA manganese dry battery × 2, sensor sleeve (with belt) × 1, carrying case (soft bag) × 1, sling strap × 1, USB cable (0.9m) × 1, communication command × 1 |
| Range | Measurement range | Display the step |
|---|---|---|
| 20 lx | 0.00 lx~20.00 lx | Step in at 1 o'clock |
| 200 lx | 0.0 lx~200.0 lx | |
| 2000 lx | 0 lx~2000 lx | |
| 20000 lx | 0(0) lx~2000(0) lx | 10 o'clock step |
| 200000 lx | 0(00) lx~2000(00) lx | 100-point step-by-step |
