Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO

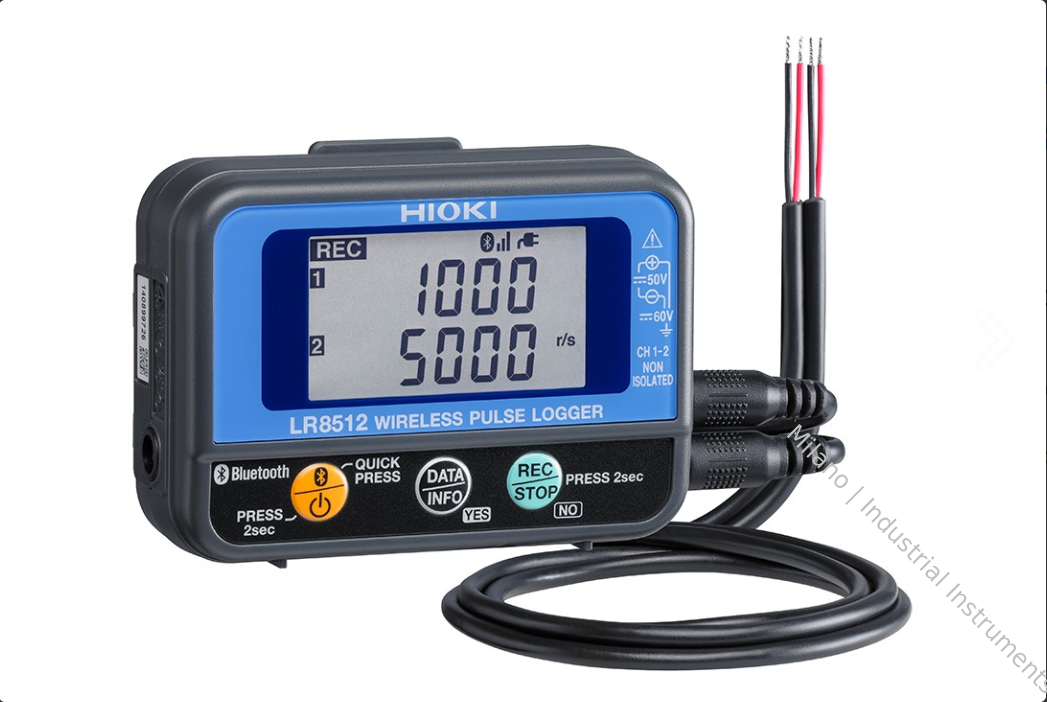

Model Number: HIOKI Wireless pulse data acquisition instrument LR8512
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 420-500USD
Packaging Details: Standard cardboard box packaging
Delivery Time: 6-8weeks
Payment Terms: T/T
Supply Ability: 99pcs/6-8weeks
|
Powersupply:
|
24 V DC
|
Measurementtype:
|
Gauge, Absolute, Differential
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
Pressurerange:
|
0 To 10,000 Psi
|
Applications:
|
Industrial, Automotive, HVAC, Oil & Gas
|
Measurementrange:
|
0 To 1000 Psi
|
Material:
|
Stainless Steel, Brass
|
Responsetime:
|
Less Than 1 Second
|
Ingressprotection:
|
IP65
|
Displaytype:
|
LCD, LED
|
|
Powersupply:
|
24 V DC
|
|
Measurementtype:
|
Gauge, Absolute, Differential
|
|
Outputsignal:
|
4-20 MA, 0-10 V, Digital
|
|
Pressurerange:
|
0 To 10,000 Psi
|
|
Applications:
|
Industrial, Automotive, HVAC, Oil & Gas
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Material:
|
Stainless Steel, Brass
|
|
Responsetime:
|
Less Than 1 Second
|
|
Ingressprotection:
|
IP65
|
|
Displaytype:
|
LCD, LED
|
| Applicable models |
[For standalone use (manual data recovery)] Windows PC or Windows tablet (standard software CD) Android smartphone or Android tablet terminal (click here to download for free) ※ Communication distance depends on the PC and tablet's functions (about 30m without barriers) [ Use as a unit (real-time measurement)] Used as a unit for LR8410-30 or LR8410-30 special products, try data collection and display, can control up to 7 units, communication distance: 30m without obstacles |
|---|---|
| Measurement function |
[Number of channels] 2 channels (common ground) [Measurement items] Pulses (cumulative/instantaneous), rotations, logic (each recording interval records 1/0) [Measurement range] Cumulative: 1000M pulses f.s. (1 pulse resolution), Rotations: 5000/n [r/s] f.s. (1/n [r/s] resolution) ※n refers to the number of pulses per 1 revolution of 1~1000 [Input Type] No voltage A contact (normally open contact), open collector, voltage input (0~50 V) |
| Record | [Interval] 0.1~30 seconds, 1~60 minutes, 16-speed switching, [Mode] Instantaneous value recording |
| Power supply | AC adapter Z2003 (AC100~240 V, 50/60 Hz), AA alkaline dry battery (LR6) *2, external power supply DC5~13.5 V |
| Continuous usage time | For AA alkaline dry batteries, the instantaneous value is measured for about 14 days (1-second interval, Bluetooth® ON). |
| Volume and weight | 85W * 61H * 31D mm, 95g (including battery) |
| Attachment | Measurement guidelines *1, precautions for radio wave usage *1, No. 5 alkaline dry battery (LR6) *2, connection cable L1010 *2 |
| Countries and regions where wireless functionality is available | Australia, Austria, Belgium, Bulgaria, Canada, Chile, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong (China), Hungary, Iceland, Indonesia, Ireland, Italy, Japan, Kenya, Latvia, Liechtenstein, Lithuania, Luxembourg, Macau (China), Malta, Myanmar, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Singapore, Slovakia Slovenia, Spain, Sweden, Switzerland, Taiwan (China), Thailand, Turkey, United Kingdom, United States, Vietnam, Israel, Saudi Arabia, India |
|---|---|
| Notes | Radio waves need to be used based on the laws or regulations of each country or region. Using this product outside authorized countries and regions may constitute illegality. |
