Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO

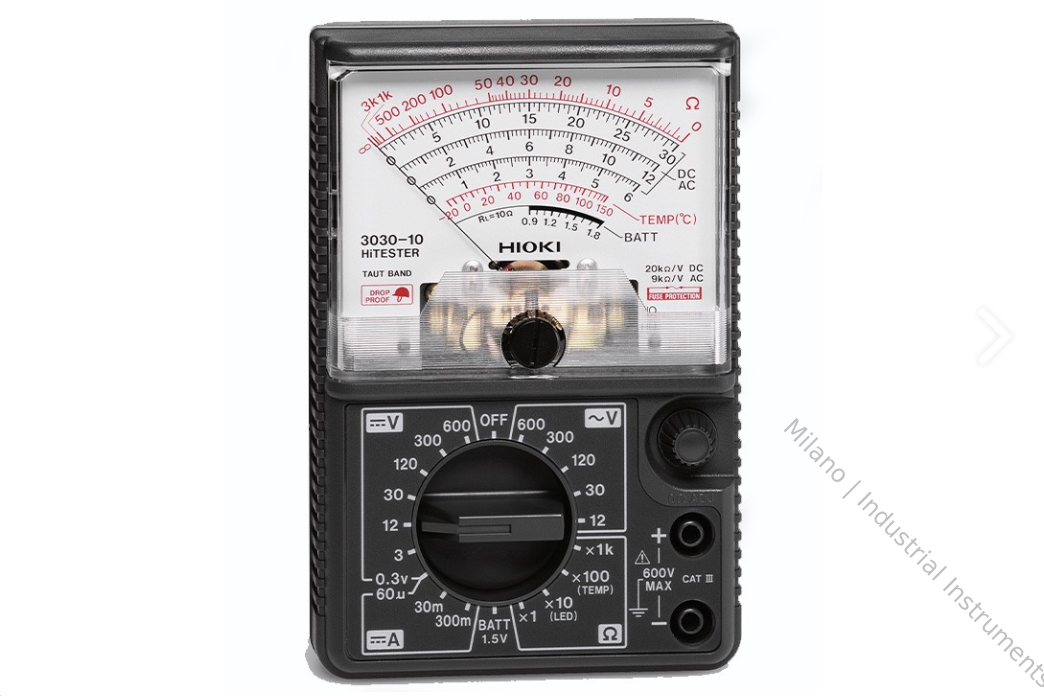

Model Number: HIOKI Analog multimeter 3030-10
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 100-120USD
Packaging Details: Standard cardboard box packaging
Delivery Time: 6-8weeks
Payment Terms: T/T
Supply Ability: 99pcs/6-8weeks
|
Ac Voltage Range:
|
1000 V
|
Design Purpose:
|
Electricians
|
Function:
|
FieldSense Validation
|
Ingressprotection:
|
IP65, IP67
|
Measurement Function:
|
VCHEK™ LoZ Low Impedance
|
Live Video Sharing:
|
ShareLive™
|
Dedicated Buttons:
|
6
|
Mobile App Compatibility:
|
Fluke Connect
|
Outputsignal:
|
4-20 MA
|
Operation Method:
|
Plug-in
|
Impedance Compatibility:
|
High Or Low
|
|
Ac Voltage Range:
|
1000 V
|
|
Design Purpose:
|
Electricians
|
|
Function:
|
FieldSense Validation
|
|
Ingressprotection:
|
IP65, IP67
|
|
Measurement Function:
|
VCHEK™ LoZ Low Impedance
|
|
Live Video Sharing:
|
ShareLive™
|
|
Dedicated Buttons:
|
6
|
|
Mobile App Compatibility:
|
Fluke Connect
|
|
Outputsignal:
|
4-20 MA
|
|
Operation Method:
|
Plug-in
|
|
Impedance Compatibility:
|
High Or Low
|
| DC voltage range | 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V) Accuracy: ± 2.5% f.s. Maximum rated voltage: 600V |
|---|---|
| AC voltage range | 12 V (9 kΩ/V) accuracy: ±4% f.s. 30/120/300/600 V (9 kΩ/V) accuracy: ± 2.5% f.s. average rectification RMS value, maximum rated voltage: 600V |
| DC current travel time | 60 μA/30 m/300 mA (300 mV internal voltage drop) Accuracy: ±3% f.s. |
| Resistance range | 0 to 3 kΩ (center scale 30 Ω), R x 1, R x 10, R x 100, R x 1k ±3% of the length of the ruler |
| Battery inspection | 0.9 ~ 1.8 V, load resistance: 10 Ω, accuracy: ±6% f.s. |
| Temperature | Note: Although the instrument has a (TEMP) temperature scale, the thermostat temperature probe 9021-01 has been discontinued, so this function is no longer available. |
| Power supply | R6P(AA) × 2 batteries |
| Size, weight | 95 mmW × 141 mmH × 39 mmD, 280 g |
| Attachment | Test Cable L9207-30 (1), Fuse (1), Carrying Case 9390 (1), No.5 Manganese Battery (2), User Manual (1) |
