Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO

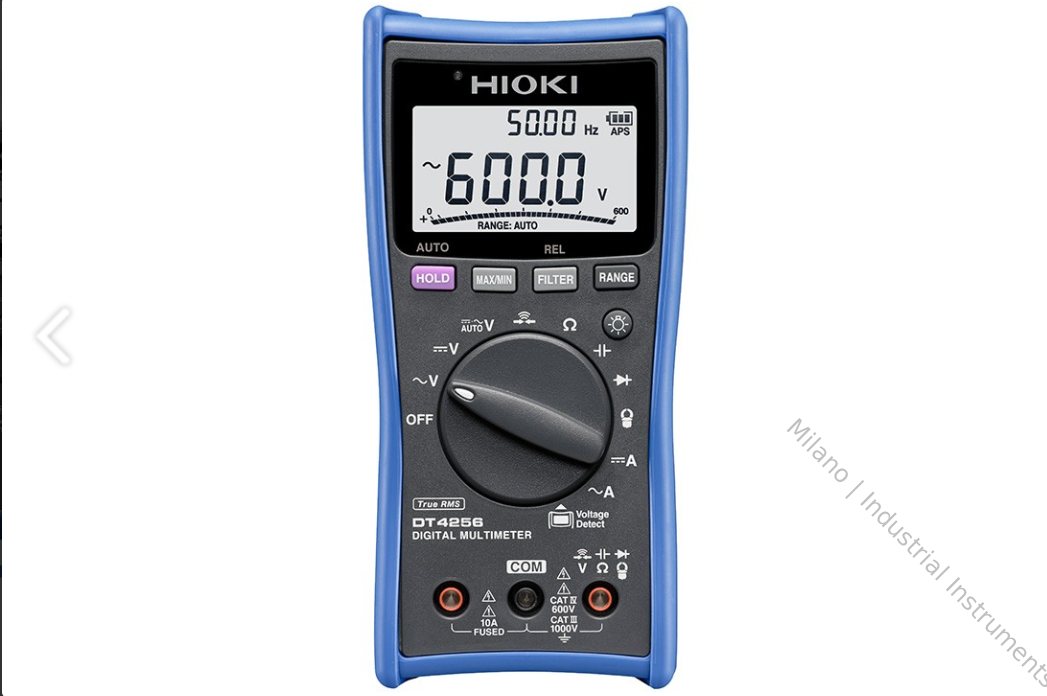

Model Number: HIOKI Digital Multimeter DT4256
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 245-350USD
Packaging Details: Standard cardboard box packaging
Delivery Time: 6-8weeks
Payment Terms: T/T
Supply Ability: 99pcs/6-8weeks
|
Responsetime:
|
≤ 1 Second
|
Ingressprotection:
|
IP65, IP67
|
Operatingtemperature:
|
-20°C To 80°C
|
Accuracy:
|
±0.5% FS
|
Outputinterface:
|
RS485, HART, Modbus
|
Displaytype:
|
Digital LCD
|
Material:
|
Stainless Steel
|
Application:
|
Industrial, HVAC, Hydraulic Systems
|
Measurementtype:
|
Gauge, Absolute, Differential
|
Outputsignal:
|
4-20 MA
|
Protectionrating:
|
IP65
|
Measurementrange:
|
0 To 1000 Psi
|
Powersupply:
|
24 V DC
|
Mounting:
|
Panel Mount Or Pipe Mount
|
Pressurerange:
|
0 To 10000 Psi
|
|
Responsetime:
|
≤ 1 Second
|
|
Ingressprotection:
|
IP65, IP67
|
|
Operatingtemperature:
|
-20°C To 80°C
|
|
Accuracy:
|
±0.5% FS
|
|
Outputinterface:
|
RS485, HART, Modbus
|
|
Displaytype:
|
Digital LCD
|
|
Material:
|
Stainless Steel
|
|
Application:
|
Industrial, HVAC, Hydraulic Systems
|
|
Measurementtype:
|
Gauge, Absolute, Differential
|
|
Outputsignal:
|
4-20 MA
|
|
Protectionrating:
|
IP65
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Powersupply:
|
24 V DC
|
|
Mounting:
|
Panel Mount Or Pipe Mount
|
|
Pressurerange:
|
0 To 10000 Psi
|
| DC Voltage (Basic Accuracy) |
600.0 mV~1000 V 5-speed range Basic accuracy: ±0.3% rdg. ±3 dgt. |
|---|---|
| AC voltage: 40~500Hz | 6.000 V~1000 V, 4 ranges, frequency response: 40 Hz~1 kHz, basic accuracy: ±0.9% rdg. ±3 dgt. (True RMS value, crest factor below 3) |
| Automatic detection of AC/DC voltage | Yes |
| Resistance | 600.0 Ω~60.00 MΩ, 6 ranges, basic accuracy: ±0.7% rdg. ±3 dgt. |
| Direct current | 60.00 mA~10.00 A, 4 ranges, basic accuracy: ±0.9% rdg. ±3 dgt. |
| 4-20mA conversion function | Yes |
| AC current: 40~500Hz | 600.0 mA~10.00 A, 3 ranges, basic accuracy: ±1.4% rdg. ±3 dgt. (True RMS value, crest factor below 3, frequency response: 40 Hz~1 kHz) |
| AC current (AC clamp measurement) 40~1kHz | 10.00 A~1000 A, 7 ranges Basic accuracy: ±0.9% rdg. ± 3 dgt. Measurement accuracy of AC clamp (true RMS value, crest factor below 3) |
| Voltage testing (50/60Hz) | Hi: AC40 V～600 V Lo: AC80 V～600 V |
| Electrostatic capacitance | 1.000 μF~10.00 mF, 5 ranges Basic accuracy: ±1.9% rdg. ±5 dgt. |
| Frequency | 99.99 Hz~99.99 kHz, 4-level range (depending on minimum sensitivity voltage) Basic accuracy: ±0.1% rdg. ±1 dgt. |
| Continuity check | Conduction ON threshold: below 25 Ω Conduction OFF threshold: above 245 Ω, response time: above 0.5 ms |
| Diode inspection | Open-circuit voltage: below 5.0 V. Test current: 0.5 mA. Clockwise threshold: 0.15 V~1.5 V |
| Other features | Filter, display value hold, auto hold, maximum/minimum/average value display, relative value display, auto power saving, USB communication (optional required) |
| Display | 4-digit LCD display, maximum 6000 kg, bar chart |
| Displays the update rate | 5 times/s (Capacitance: based on measured value 0.05~5 times/s, frequency: 1~2 times/s) |
| Power supply | No. 7 alkaline battery (LR03) *4, continuous usage time: 130 h (with backlight off) |
| Volume and weight | 84W * 174H * 52D mm, 390 g (including battery and protective case) |
| Attachment |
Test Cable L9207-10※2 *1, protective case *1, user manual *1, AAA alkaline battery (LR03) *4 ※2: Starting from March 2025, the L9300 will gradually replace the L9207-10. |
