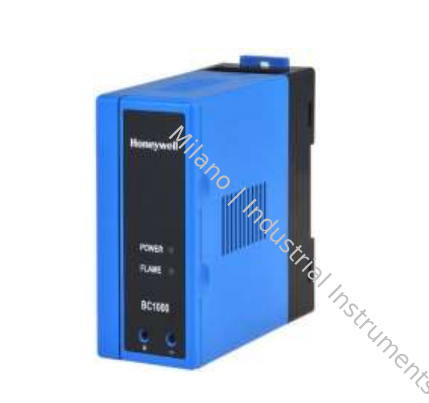

BC1000A0220U HONEYWELL Controller AC 220V,BURNER CONTROLLER

Name: BC1000A0220U HONEYWELL Controller AC 220V,BURNER CONTROLLER
Brand: Shaanxi Qindiyuan Environmental Protection Equipment Co., Ltd.
SKU: BC1000A0220U
Price: 175.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: HONEYWELL

Certification: CO

Model Number: BC1000A0220U

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 150$-200$

Delivery Time: 1week

Payment Terms: T/T

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            Honeywell burner controller AC 220V, Honeywell pressure transmitter controller, burner controller with AC voltage


Power Supply:	12-36 VDC	Outputsignal:	4-20 MA
Voltage:	5±0.5VDc	Pressure Range:	-100pa~16mpa
Mounting Type:	Threaded	Output Range:	0.5-4.5 V Or 4-20 MA
Process Connection:	1/4 Inch NPT

Power Supply:	12-36 VDC
Outputsignal:	4-20 MA
Voltage:	5±0.5VDc
Pressure Range:	-100pa~16mpa
Mounting Type:	Threaded
Output Range:	0.5-4.5 V Or 4-20 MA
Process Connection:	1/4 Inch NPT

BC1000A0220U HONEYWELL Controller AC 220V,BURNER CONTROLLER

FEATURES

Compact design.
Plug-in wiring sub base for direct panel or DIN RAIL mounting.
Safe-start check (SSC) feature prevents operation when abnormal flame condition exists at start-up.
LED indication (Power, Flame, SSC) on the front to show operation status (SSC hidden behind the front cover).
Screw terminals on the front provide continuous 0~6VDC flame signal strength monitoring.

SPECIFICATIONS

Table 1: Model Selection Guide

Model	Rated voltage	Power consumption	Flame Response time	Flame sensor	Safety-start check output	Flame output
BC1000A0110F	115V 50/60Hz	5W	2 ± 1 sec.	Flame rod or C7012A/G	SPST (T3-4)	SPST (T2-3)
BC1000A0110U	115V 50/60Hz	8W	2 ± 1 sec.	C7027/35/44	SPST (T3-4)	SPST (T2-3)
BC1000A0220F	230V 50/60Hz	5W	2 ± 1 sec.	Flame rod or C7012A/G	SPST (T3-4)	SPST (T2-3)
BC1000A0220U	230V 50/60Hz	8W	2 ± 1 sec.	C7027/35/44	SPST (T3-4)	SPST (T2-3)
BC1000B1000	115V 50/60Hz	5W	Max. 1 sec.	Flame rod or C7012A/G	None	SPDT (T2…4)
BC1000B1018	230V 50/60Hz	5W	Max. 1 sec.	Flame rod or C7012A/G	None	SPDT (T2…4)
BC1000B2001	115V 50/60Hz	8W	Max. 1 sec.	C7027/35/44	None	SPDT (T2…4)
BC1000B2019	230V 50/60Hz	8W	Max. 1 sec.	C7027/35/44	None	SPDT (T2…4)
