Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO

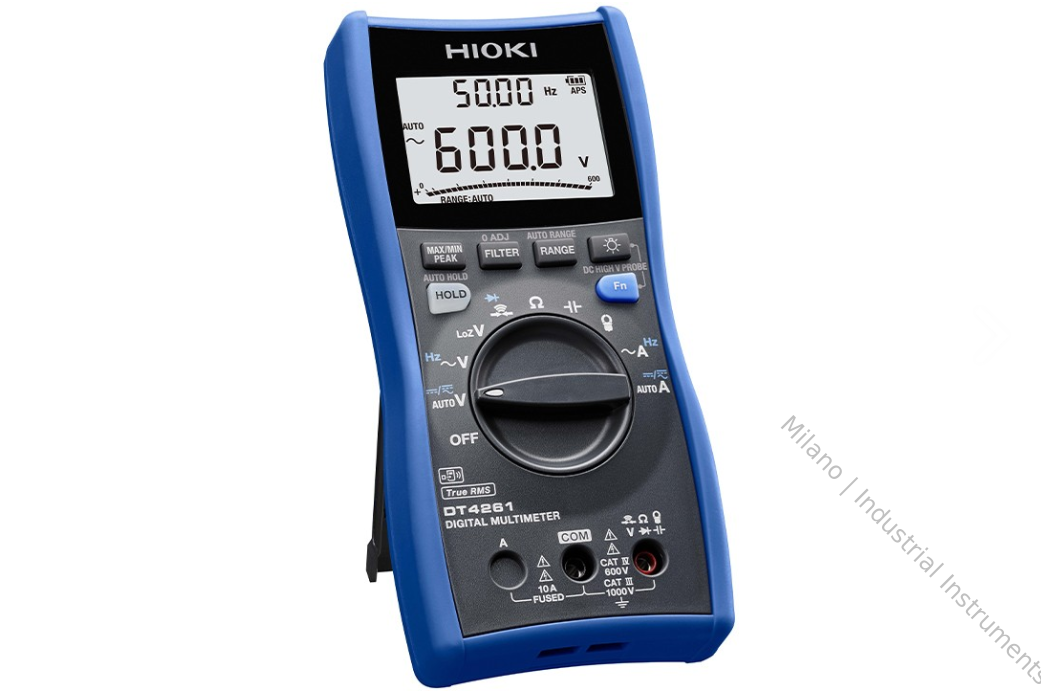

Model Number: HIOKI Digital multimeter DT4261
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 300-520USD
Packaging Details: Standard cardboard box packaging
Delivery Time: 6-8weeks
Payment Terms: T/T
Supply Ability: 99pcs/6-8weeks
|
Measurementtype:
|
Gauge, Absolute, Differential
|
Ingressprotection:
|
IP65, IP67
|
Connectiontype:
|
Threaded, Flanged
|
Powersupply:
|
24 V DC
|
Pressurerange:
|
0 To 10,000 Psi
|
Operatingtemperature:
|
-20°C To 80°C
|
Displaytype:
|
LCD, LED
|
Pressuretype:
|
Gauge, Absolute, Differential
|
Material:
|
Stainless Steel
|
Application:
|
Industrial, HVAC, Automotive
|
Applications:
|
Industrial, HVAC, Automotive, Oil & Gas
|
Mounting:
|
Panel Mount Or Pipe Mount
|
Outputinterface:
|
RS485, HART, Modbus
|
Calibration:
|
Factory Calibrated, Field Adjustable
|
Measurementrange:
|
0 To 1000 Psi
|
|
Measurementtype:
|
Gauge, Absolute, Differential
|
|
Ingressprotection:
|
IP65, IP67
|
|
Connectiontype:
|
Threaded, Flanged
|
|
Powersupply:
|
24 V DC
|
|
Pressurerange:
|
0 To 10,000 Psi
|
|
Operatingtemperature:
|
-20°C To 80°C
|
|
Displaytype:
|
LCD, LED
|
|
Pressuretype:
|
Gauge, Absolute, Differential
|
|
Material:
|
Stainless Steel
|
|
Application:
|
Industrial, HVAC, Automotive
|
|
Applications:
|
Industrial, HVAC, Automotive, Oil & Gas
|
|
Mounting:
|
Panel Mount Or Pipe Mount
|
|
Outputinterface:
|
RS485, HART, Modbus
|
|
Calibration:
|
Factory Calibrated, Field Adjustable
|
|
Measurementrange:
|
0 To 1000 Psi
|
CAT III1000V,CAT IV 600V
Accuracy guarantee period is 1 year.
※ About DMM accuracy: Since digital multimeters have many measurement functions and ranges, the basic accuracy recorded is only representative values. For accuracy across each range, please refer to the product manual PDF.
| DC voltage | 600.0 mV to 1000 V, 5 ranges, basic accuracy: ±0.15% rdg. ±2 dgt. |
|---|---|
| AC voltage: 40~500Hz | 6.000 V to 1000 V, 4 ranges, frequency response: 40 Hz to 1 kHz Basic accuracy 40 Hz - 500 Hz: ±0.9% rdg. ±3 dgt. (True RMS value, crest factor below 3) |
| DC + AC voltage | 6.000 V to 1000 V, 4 ranges, frequency response: DC, 40 Hz to 1 kHz Basic accuracy DC, 40 Hz - 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS value, crest factor below 3) |
| LoZ V | 600.0 V, 1-range range, frequency response: DC, 40 Hz to 1 kHz Basic accuracy DC, 40 Hz - 500 Hz: ±1.0% rdg. ±13 dgt. (True RMS value, crest factor below 3) |
| Resistance | 600.0 Ω to 60.00 MΩ, 6 ranges, basic accuracy: ±0.7% rdg. ±3 dgt. |
| Direct current | 600.0 mA to 10.00 A, 3 ranges, basic accuracy: ±0.5% rdg. ±3 dgt. |
| AC current | 600.0 mA to 10.00 A, 3 ranges, basic accuracy 40 Hz - 500 Hz: ± 1.4% rdg. ±3 dgt. (True RMS value, crest factor below 3) Frequency characteristics: 40 Hz to 1 kHz |
| AC current (measured by AC clamp probe) | 10.00 A to 1000 A, 7 ranges, basic accuracy 40 Hz - 500 Hz: ±0.9% rdg. ±3 dgt. Calculate the measurement accuracy of the clamp probe (true RMS value, crest factor below 3) |
| Capacitive coupling | 1.000 μF to 10.00 mF, 5 ranges, basic accuracy: ±1.9% rdg. ±5 dgt. |
| Continuity check | Conduction ON threshold: 25 Ω, conduction OFF threshold: 245 Ω, response time: above 0.5 ms |
| Diode testing | Open circuit voltage: below 2.0 V, test current: 0.2 mA, clockwise threshold: 0.15 V to 1.8 V |
| Voltage frequency | 99.99 Hz to 99.99 kHz, 4 ranges (depending on minimum sensitivity voltage) Basic accuracy: ±0.1% rdg. ±1 dgt. |
| Current frequency | 99.99 Hz~9.999 kHz, 3 ranges (depending on minimum sensitivity current) Basic accuracy: ±0.1% rdg. ±1 dgt. |
| Harmonics | [When installing the Z3210] Harmonic level/content/total harmonic distortion in current can be measured up to 30 times * Can be displayed via application software (GENNECT Cross). |
| Other features | Accidental insertion prevention function, fuse check function, user hold settings, filtering function, automatic zero adjustment, display value hold, auto hold, maximum/minimum value display, transient value (PEAK) display, auto power saving, USB communication (only when the optional communication package DT4900-01 is installed), wireless communication (only when the optional wireless adapter Z3210 is installed) |
| Display | 4-digit LCD display, max. 6000 dgt. (divided by frequency measurement), bar chart |
| Displays the update rate | 5 times/s (Capacitive coupling: based on measured values 0.05 to 5 times/s, frequency: 1~2 times/s) |
| Power supply | AA alkaline battery (LR6) *3, continuous usage time: 130 h (without Z3210), 70 h (with Z3210 installed, wireless communication) |
| Volume and weight | 87W * 185H * 47D mm, 480g (including test line support and battery) |
| Attachment | Test Cable L9300 *1, User Manual *1, AA Alkaline Battery (LR6) *3, Precautions for Use *1 |
