Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO

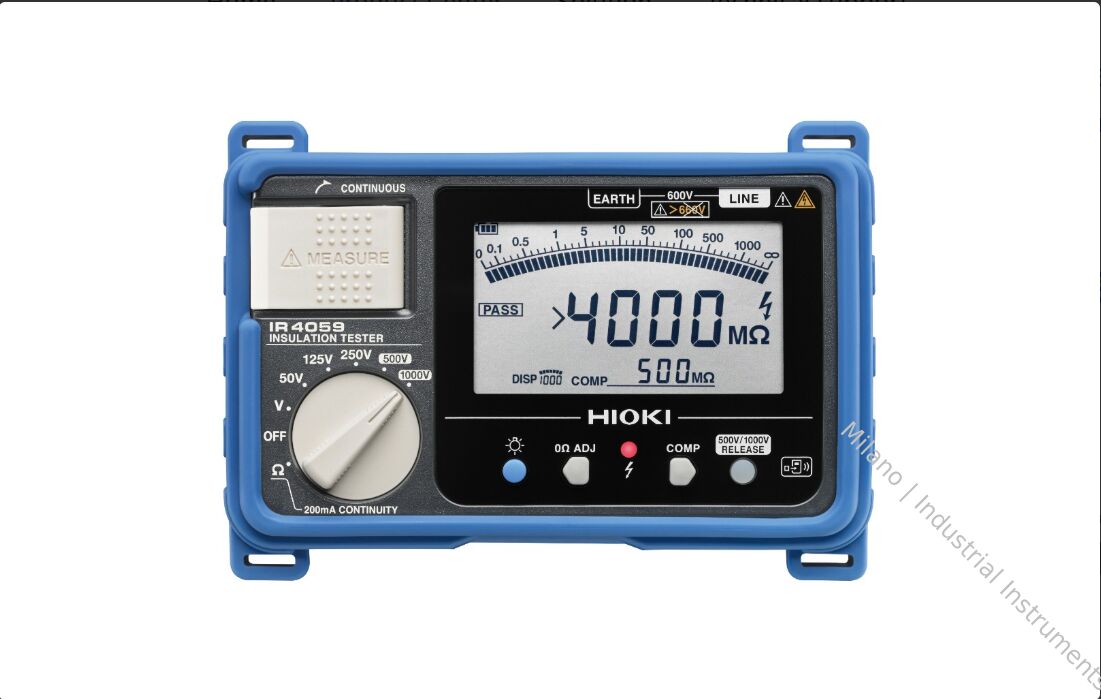

Model Number: HIOKI Insulation resistance meter IR4059
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 650-800USD
Packaging Details: Standard cardboard box packaging
Delivery Time: 6-8weeks
Payment Terms: T/T
Supply Ability: 99pcs/6-8weeks
|
Wireless Connectivity:
|
Fluke Connect Enabled
|
Weight:
|
200g
|
Multimeter Type:
|
True-rms Digital
|
Displayresolution:
|
3.5 To 4.5 Digits
|
Socket Compatibility:
|
Standard And GFCI Outlets
|
Measurementtype:
|
Gauge, Absolute, Differential
|
Powersource:
|
Battery (typically 9V Or AA)
|
Safety Rating:
|
CAT III 1000 V, CAT IV 600 V
|
Powersupply:
|
24 V DC, Battery Operated
|
Ac Bandwidth:
|
40 Hz - 30 KHz
|
Technology:
|
FieldSense
|
Drop Resistance:
|
3 Meter
|
Insulation Rating:
|
1000 V AC, 1500 V DC
|
Audible Alert:
|
Beeper
|
Frequency Range:
|
200 KHz
|
|
Wireless Connectivity:
|
Fluke Connect Enabled
|
|
Weight:
|
200g
|
|
Multimeter Type:
|
True-rms Digital
|
|
Displayresolution:
|
3.5 To 4.5 Digits
|
|
Socket Compatibility:
|
Standard And GFCI Outlets
|
|
Measurementtype:
|
Gauge, Absolute, Differential
|
|
Powersource:
|
Battery (typically 9V Or AA)
|
|
Safety Rating:
|
CAT III 1000 V, CAT IV 600 V
|
|
Powersupply:
|
24 V DC, Battery Operated
|
|
Ac Bandwidth:
|
40 Hz - 30 KHz
|
|
Technology:
|
FieldSense
|
|
Drop Resistance:
|
3 Meter
|
|
Insulation Rating:
|
1000 V AC, 1500 V DC
|
|
Audible Alert:
|
Beeper
|
|
Frequency Range:
|
200 KHz
|
| Rated measurement voltage | DC 50V | DC 125V | DC 250V | DC 500V | DC 1000V |
|---|---|---|---|---|---|
| Maximum effective display value | 100 MΩ | 250 MΩ | 500 MΩ | 2000 MΩ | 4000 MΩ |
| Accuracy: First effective measurement range MΩ | ±2% rdg. ±2dgt. 0.200〜10.00 |
±2% rdg. ±2dgt. 0.200〜25.0 |
±2% rdg. ±2dgt. 0.200〜50.0 |
±2% rdg. ±2dgt. 0.200〜500 |
±2% rdg. ±2dgt. 0.200〜1000 |
| Minimum measured resistance | 0.05 MΩ | 0.125 MΩ | 0.25 MΩ | 0.5 MΩ | 1 MΩ |
| Overvoltage protection | AC 600 V (10s) | AC 660 V (10s) | |||
| DC voltage range | 4.2V (resolution 0.001V)~600V (resolution 1V), 4 ranges, accuracy: ±1.3% rdg. ±4 dgt., input resistance: above 100 kΩ |
|---|---|
| AC voltage range | 420V (resolution 0.1V) / 600V (resolution 1V), 2-speed range, 50/60 Hz, accuracy: ±2.3% rdg. ±8 dgt., input resistance: above 100 kΩ, average value indicated by rectification RMS |
| Low resistance range | Used to check ground conductor conduction, 10 Ω (resolution 0.01 Ω)~1000 Ω (resolution 1 Ω), 3 ranges, basic accuracy: ±3% rdg. ±2 dgt., test current above 200 mA (below 6 Ω) |
| Display | Semi-transmissive FSNTN LCD, backlight, bar chart |
| Response time | Comparator Response Time for Results: Approximately 0.3s (based on internal testing) |
| Function | 1-minute display, power-on alarm, automatic discharge, automatic AC/DC detection, comparator, drop protection, automatic power saving |
| Power supply | No. 5 alkaline batteries (LR6) x 4, continuous use: 20 hours (based on internal testing) |
| Volume and weight | 160 W * 98 H * 46 D mm, 536 g (including battery and test cable) |
| Attachment | Test cable with switch L9788-10 x 1, connecting cable L4930 *1, crocodile clip L4935 *1, test probe L4938 *1, protective case Z5042 x 1, lanyard *1, user manual * 1, AAA alkaline battery (LR6) x 4 |
