Product Details
Place of Origin: Japan
Brand Name: HIOKI
Certification: CO

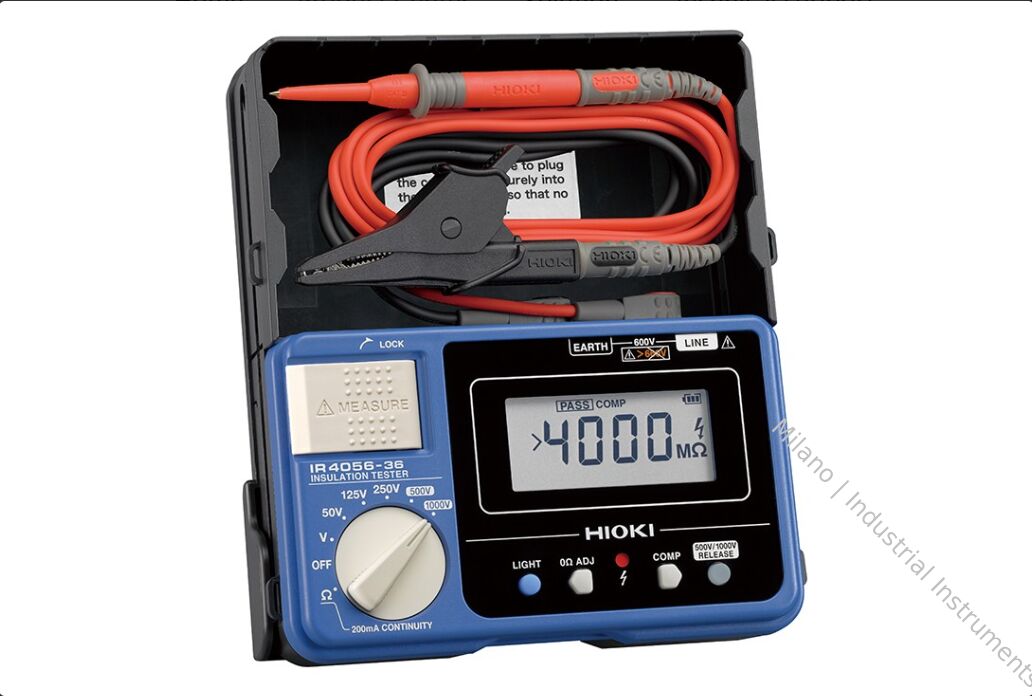

Model Number: HIOKI Insulation resistance meter IR4056-36
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 290-350USD
Packaging Details: Standard cardboard box packaging
Delivery Time: 6-8weeks
Supply Ability: 99pcs/6-8weeks
|
Mounting:
|
Panel Mount Or Pipe Mount
|
Outputinterface:
|
RS485, HART, Modbus
|
Responsetime:
|
Less Than 1 Second
|
Material:
|
Stainless Steel, Brass
|
Measurementtype:
|
Gauge, Absolute, Differential
|
Measurementrange:
|
0 To 1000 Psi
|
Connectiontype:
|
Threaded, Flanged
|
Protectionrating:
|
IP65
|
Productname:
|
Pressure Measurement Instruments
|
Applications:
|
Industrial, HVAC, Automotive, Oil & Gas
|
Mountingoptions:
|
Panel, Wall, Pipe
|
Mountingtype:
|
Panel Mount / Wall Mount
|
Pressuretype:
|
Gauge, Absolute, Differential
|
Calibration:
|
Factory Calibrated
|
Ingressprotection:
|
IP65, IP67
|
|
Mounting:
|
Panel Mount Or Pipe Mount
|
|
Outputinterface:
|
RS485, HART, Modbus
|
|
Responsetime:
|
Less Than 1 Second
|
|
Material:
|
Stainless Steel, Brass
|
|
Measurementtype:
|
Gauge, Absolute, Differential
|
|
Measurementrange:
|
0 To 1000 Psi
|
|
Connectiontype:
|
Threaded, Flanged
|
|
Protectionrating:
|
IP65
|
|
Productname:
|
Pressure Measurement Instruments
|
|
Applications:
|
Industrial, HVAC, Automotive, Oil & Gas
|
|
Mountingoptions:
|
Panel, Wall, Pipe
|
|
Mountingtype:
|
Panel Mount / Wall Mount
|
|
Pressuretype:
|
Gauge, Absolute, Differential
|
|
Calibration:
|
Factory Calibrated
|
|
Ingressprotection:
|
IP65, IP67
|
Insulation Test Voltage Specifications
Insulation test voltage: five ranges of 50 V, 125 V, 250 V, 500 V, and 1000 V, suitable for various application scenarios
| Test voltage | 50V DC | 125V DC | 250V DC | 500V DC | 1000V DC |
|---|---|---|---|---|---|
| Maximum effective display value | 100 MΩ | 250 MΩ | 500 MΩ | 2000 MΩ | 4000 MΩ |
| Accuracy : The first effective measurement range is MΩ |
±2% rdg.±2 dgt 0.200-10.00 |
±2% rdg.±2 dgt 0.200-25.0 |
±2% rdg.±2 dgt 0.200-50.0 |
±2% rdg.±2 dgt 0.200-500 |
±2% rdg.±2 dgt, 0.200-1000 |
| Minimum measured resistance | 0.05 MΩ | 0.125 MΩ | 0.25 MΩ | 0.5 MΩ | 1 MΩ |
| Overvoltage protection | AC 750 V(10s) | ||||
| DC voltage | 4.2 V (resolution 0.001 V)~600 V (resolution 1 V), 4 ranges, accuracy: ± 1.3% rdg.±4 dgt., input resistance: above 100 kΩ |
|---|---|
| AC voltage | 420 V (resolution 0.1 V) / 600 V (resolution 1 V), two ranges, 50/60 Hz, accuracy: ± 2.3% rdg.±8 dgt., input resistance: above 100 kΩ, average value |
| Low resistance | Used to check ground continuity, 10 Ω (resolution 0.01 Ω)~1000 Ω (resolution 1 Ω), 3 ranges, basic accuracy: ±3% rdg.±2 dgt., test current above 200 mA (below 6 Ω) |
| Display | FSTN LCD is backlit and displays in a bar chart |
| Response time | PASS/FAIL check takes about 0.8 seconds (under HIOKI specified conditions) |
| Other features | Live circuit alarm, automatic discharge, automatic DC/AC check, comparator, drop protection, automatic power saving |
| Power supply | AA (LR6) alkaline batteries x4, continuous use: 20 hours (under HIOKI conditions), measurement count: 1000 times (5s ON, 25s OFF cycle, minimum resistance measurement to maintain rated voltage insulation) |
| Volume and weight | 159 W X 177 H X 53 D mm, 600 g (including battery and test cable) |
| Attachment | Test line L9787 x 1, lanyard x 1, user manual x 1, AA (LR6) alkaline batteries x 4 |
