Product Details
Place of Origin: USA

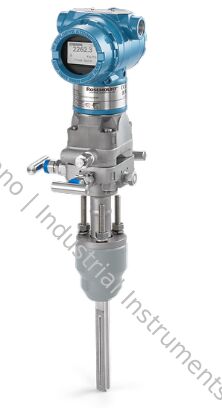

Brand Name: Emerson Rosemount
Certification: CO
Model Number: 3051CFA
Document: product-data-sheet-rosemoun...54.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 200-2000
Delivery Time: 5-7 WORK DAYS
Payment Terms: T/T
Supply Ability: 99PCS 4-6 WEEKS
|
Medium:
|
Gas,liquid
|
Port:
|
Shanghai Or Ningbo
|
Pressure Form:
|
Gauge G,Absolute A
|
Current Output:
|
4-20mA
|
Pressure Type:
|
Gauge / Absolute / Sealed Gauge
|
Thread:
|
NPT,G,ZG-1/2,M20*1.5 Threaded Connection
|
Temp Range:
|
0~(100-1200)℃
|
Process Connection:
|
1/2 Inch NPT
|
Measuring Medium:
|
Liquid, Gas, Steam
|
Accuracy:
|
±0.1% FS
|
Communication:
|
RS485
|
Temperature:
|
-40 To 104°c
|
Ambient Temperature:
|
(-40～80)℃
|
Voltage:
|
5±0.5VDc
|
Power Supply:
|
12-36 V DC
|
|
Medium:
|
Gas,liquid
|
|
Port:
|
Shanghai Or Ningbo
|
|
Pressure Form:
|
Gauge G,Absolute A
|
|
Current Output:
|
4-20mA
|
|
Pressure Type:
|
Gauge / Absolute / Sealed Gauge
|
|
Thread:
|
NPT,G,ZG-1/2,M20*1.5 Threaded Connection
|
|
Temp Range:
|
0~(100-1200)℃
|
|
Process Connection:
|
1/2 Inch NPT
|
|
Measuring Medium:
|
Liquid, Gas, Steam
|
|
Accuracy:
|
±0.1% FS
|
|
Communication:
|
RS485
|
|
Temperature:
|
-40 To 104°c
|
|
Ambient Temperature:
|
(-40～80)℃
|
|
Voltage:
|
5±0.5VDc
|
|
Power Supply:
|
12-36 V DC
|
| Warranty | Up to 1-year limited warranty |
| Rangedown | Up to 150:1 (8:1 flow turndown) |
| Measurement Range | Up to 1000 inH2O (2.48 bar) differential |
| Communication Protocol | 4-20 mA HART®, Wireless HART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
| Line Size | 2 to 96 in. (50 to 2440 mm) |
| Process Wetted Material | 316L SST, Alloy C-276 |
| Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE® |
| Wireless Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |
