Product Details
Place of Origin: CHINA
Brand Name: Hanwei

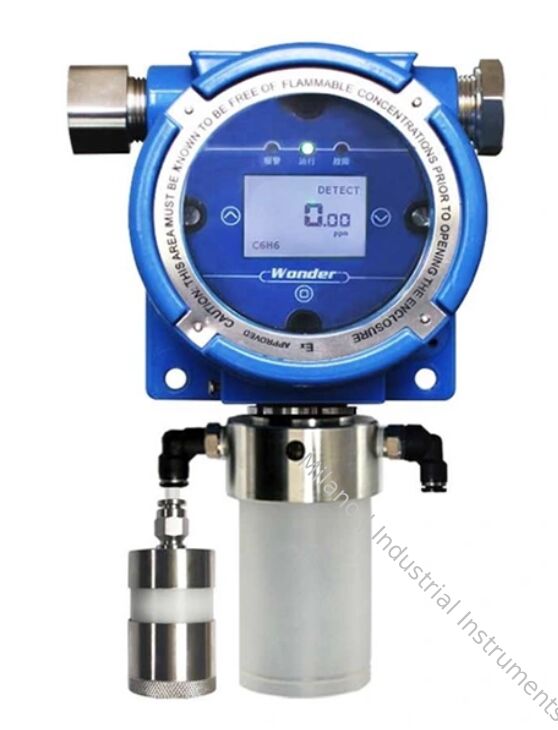

Model Number: VOCScan800
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 350$
Delivery Time: 1WEEK
Payment Terms: T/T
|
Detection Gases:
|
Combustible Gases, Toxic Gases, Oxygen
|
Detection Principle:
|
Catalytic Combustion, Electrochemical, Infrared, Laser, Photoionization, Semiconductor
|
Response Time:
|
T90 ≤ 15s
|
Detection Accuracy:
|
≤ ±3% FS
|
Protection Rating:
|
IP67
|
Power Supply:
|
DC24V ±10V
|
Product Weight:
|
1.2Kg
|
Dimensions:
|
130mm * 154mm * 83mm
|
|
Detection Gases:
|
Combustible Gases, Toxic Gases, Oxygen
|
|
Detection Principle:
|
Catalytic Combustion, Electrochemical, Infrared, Laser, Photoionization, Semiconductor
|
|
Response Time:
|
T90 ≤ 15s
|
|
Detection Accuracy:
|
≤ ±3% FS
|
|
Protection Rating:
|
IP67
|
|
Power Supply:
|
DC24V ±10V
|
|
Product Weight:
|
1.2Kg
|
|
Dimensions:
|
130mm * 154mm * 83mm
|
| Feature | Specification |
|---|---|
| Detection Gases | Combustible gases, toxic gases, oxygen |
| Detection Principle | Catalytic combustion, electrochemical, infrared, laser, photoionization, semiconductor |
| Detection Method | Natural diffusion |
| Response Time | t90 ≤ 15s (combustible gases, CO, H2S, O2; others vary by gas type) |
| Detection Accuracy | ≤ ±3% FS (combustible gases, CO, H2S, O2; others vary by gas type) |
| Protection Rating | IP67 |
| Explosion Proof Rating | Ex db IIC T6 Gb, Ex tb IIIC T80℃ Db |
| Operating Temperature | -40℃ to +70℃ |
| Operating Humidity | 0~95% RH (non-condensing) |
| Environmental Pressure | 86KPa~106KPa |
| Power Supply | DC24V ±10V |
| Power Consumption | ≤2W (excluding sound and light alarm) |
| Electrical Interface | 3/4NPT (customizable, with redundant interfaces sealed by explosion-proof plugs) |
| Housing Material | Aluminum alloy (stainless steel optional) |
| Product Weight | Approximately 1.2Kg |
| Dimensions | 130mm * 154mm * 83mm |
