Product Details
Place of Origin: CHINA
Brand Name: Hanwei
Model Number: DF3050
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 350$
Delivery Time: 1WEEK
Payment Terms: T/T
|
Detection Wavelength:
|
1550nm
|
Fiber Type:
|
9/125μm, Single-mode
|
Measurement Range:
|
≤ 50km
|
Positioning Accuracy:
|
±1m/±5m/±10m
|
Response Time:
|
< 2s
|
Operating Temperature:
|
-10℃ To +45℃
|
Power Supply:
|
220V AC / 12VDC
|
Power Consumption:
|
≤ 2W
|
|
Detection Wavelength:
|
1550nm
|
|
Fiber Type:
|
9/125μm, Single-mode
|
|
Measurement Range:
|
≤ 50km
|
|
Positioning Accuracy:
|
±1m/±5m/±10m
|
|
Response Time:
|
< 2s
|
|
Operating Temperature:
|
-10℃ To +45℃
|
|
Power Supply:
|
220V AC / 12VDC
|
|
Power Consumption:
|
≤ 2W
|

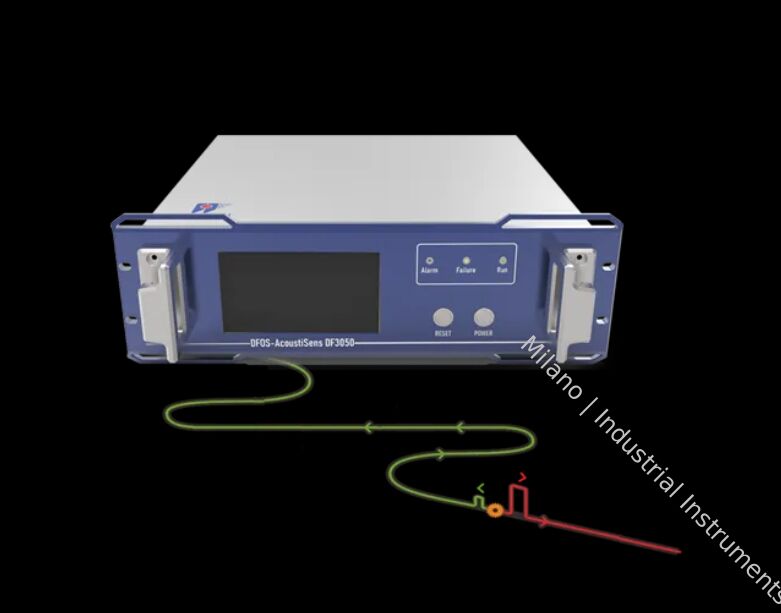

Advanced fiber optic sensing technology for precise vibration detection and monitoring applications.
| Operating Temperature | -10℃ to +45℃ |
| Operating Humidity | 0 to 95%RH (no condensation) |
| Power Supply Voltage | 220V AC (rack-mounted) / 12VDC |
| Communication Interface | TCP/IP, USB, IoT, etc. |
| Overall Power Consumption | ≤ 2W |
| Product Weight | Approximately 12Kg |
| Overall Dimensions | 345mm × 321mm × 153mm |
