Product Details
Place of Origin: USA
Brand Name: Emerson Rosemount
Certification: CO

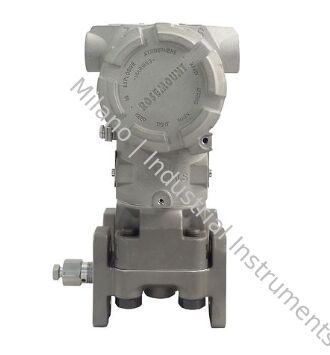

Model Number: 3152K
Document: product-data-sheet-rosemoun...54.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 200-2000
Delivery Time: 5-7 WORK DAYS
Payment Terms: T/T
Supply Ability: 99PCS 4-6 WEEKS
|
Medium:
|
Gas,liquid
|
Port:
|
Shanghai Or Ningbo
|
Pressure Form:
|
Gauge G,Absolute A
|
Current Output:
|
4-20mA
|
Pressure Type:
|
Gauge / Absolute / Sealed Gauge
|
Thread:
|
NPT,G,ZG-1/2,M20*1.5 Threaded Connection
|
Temp Range:
|
0~(100-1200)℃
|
Process Connection:
|
1/2 Inch NPT
|
Measuring Medium:
|
Liquid, Gas, Steam
|
Accuracy:
|
±0.1% FS
|
Communication:
|
RS485
|
Temperature:
|
-40 To 104°c
|
Ambient Temperature:
|
(-40～80)℃
|
Voltage:
|
5±0.5VDc
|
Power Supply:
|
12-36 V DC
|
|
Medium:
|
Gas,liquid
|
|
Port:
|
Shanghai Or Ningbo
|
|
Pressure Form:
|
Gauge G,Absolute A
|
|
Current Output:
|
4-20mA
|
|
Pressure Type:
|
Gauge / Absolute / Sealed Gauge
|
|
Thread:
|
NPT,G,ZG-1/2,M20*1.5 Threaded Connection
|
|
Temp Range:
|
0~(100-1200)℃
|
|
Process Connection:
|
1/2 Inch NPT
|
|
Measuring Medium:
|
Liquid, Gas, Steam
|
|
Accuracy:
|
±0.1% FS
|
|
Communication:
|
RS485
|
|
Temperature:
|
-40 To 104°c
|
|
Ambient Temperature:
|
(-40～80)℃
|
|
Voltage:
|
5±0.5VDc
|
|
Power Supply:
|
12-36 V DC
|
| Output Signal | 4-20 mA |
| Rangedown | Up To 10:1 (5:1 for Range 1) |
| Measurement Range | Up to 13.79 MPa (2000 psi) Differential, Up to 27.58 MPa (4000 psig) Gage, Up to 27.58 MPa (4000 psig) Absolute |
| Housing Material | 316L SST, Aluminum |
| Process Wetted Material | 316L SST, Alloy C-276 |
| Seismic Rating | Vibration to 5g seismic and 8g APC |
| Radiation Rating | 50 kGy (5 Mrad) TID Gamma Radiation |
| Steam/Pressure Temperature | LOCA/HELB 160°C (320°F) for 1 hour |
| Qualification Standard | KTA 3505 |
