Product Details
Place of Origin: CHINA
Brand Name: HONEYWELL
Certification: CO
Model Number: STR74G-11A01(D)0-DDCBA400G-CBHC-13C-B-7(1)A7TP,F1,FX,F5,FG,FE-0000)
Document: STG70S_Gauge Pressure Trans...rs.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 508$
Delivery Time: 1WEEK
Payment Terms: T/T
| Feature | Code | Description |
|---|---|---|

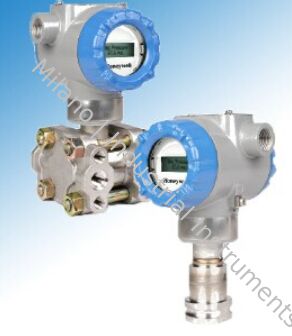

| Model | STG74S | Gauge In-Line Pressure Transmitter |
| Process Head & Diaphragm Materials | E | Process Head/Reference Head Material: 316 Stainless Steel Barrier Diaphragm Material: 316L SS, Hastelloy C - 276 |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process | G | Size/Type: 1/2" NPT (female) Material: Same as Process Head |
| Bolt/Nuts Materials | 0 | None |
| Vent/Drain Type/Location | 0 | Head Type: None Vent Type: None Location: None Vent Material: None |
| Gasket Materials | 0 | None |
| Head/Connect Orientation | 1 | Meter Body: Standard High Side Left, Ref Side Right / Std Head Orientation |
| Approvals | 0 | No Approvals Required |
| Electronic Housing Material & Connection Type | C | Material: Polyster Powder Coated Aluminum Connection: 1/2 NPT Lighting Protection: Yes |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | T | Indicator: Standard (with Internal Zero, Span & Config buttons) External Zero, Span & Config Buttons: Yes Languages: EN |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe % Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High > 21.0mAdc High & Low Output Limits: Honeywell Standard (3.8 - 20.8 mAdc) |
| General Configuration | C | Custom Configuration (Unit Data Required from customer) |
| Accuracy & Calibration | B | Accuracy: Standard Calibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration |
| Mounting Bracket | 3 | Bracket Type: Angle Bracket Material: 316 SS |
| Customer Tag | 0 | No customer tag |
| Unassembled Conduit Plugs & Adapters | A6 | 1/2 NPT 316 SS Certified Conduit Plug |
| Certifications & Warranty | F1, FX, TP | Calibration Test Report & Certificate of Conformance EN10204 Type 3.1 Material Traceability Over-Pressure Leak Test Certificate (1.5X MAWP) |
| Factory | 0000 | Factory Identification |
